Dimensions:
1 x 60 Watts:
- Overall: 6.6 in W x 1.6 in D x 1.25 in H
2 x 60 Watts:
- Overall: 6 in W x 3.25 in D x 2.6 in H
3 x 60 Watts:
- Overall: 6.75 in W x 3.6 in D x 2.6 in H
5 x 60 Watts:
- Overall: 8.25 in W x 4.6 in D x 2.6 in H
100 Watts:
- Overall: 6.5 in W x 3 in D x 1.25 in H
60 Watts:
- Overall: 6.5 in W x 1.6 in D x 1.25 in H
150 Watts:
- Overall: 6.5 in W x 3 in D x 1.25 in H
250 Watts:
- Overall: 6.25 in W x 3.4 in D x 2.1 in H
Power:
- Output: 12V
- Frequency: 20khz
- 1W minimum load
Listing
- UL
The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp.
Product URL
item #:
Prepared for:
Project:
Room:
Placement:
Approval:
- Shipping Cost: $15.00
-
Shipping Time: Please make a selection.
- Shop with Confidence: 30 Day Returns
- # SKU: Make a selection
- Quick Ship
- UL Listed
- Warranty Included
Description

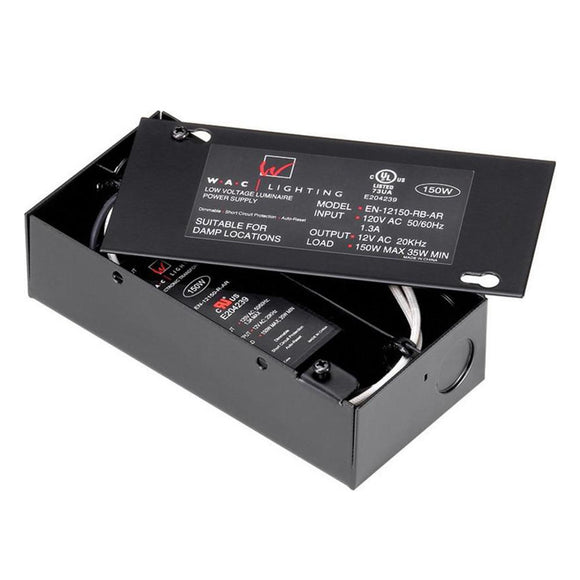

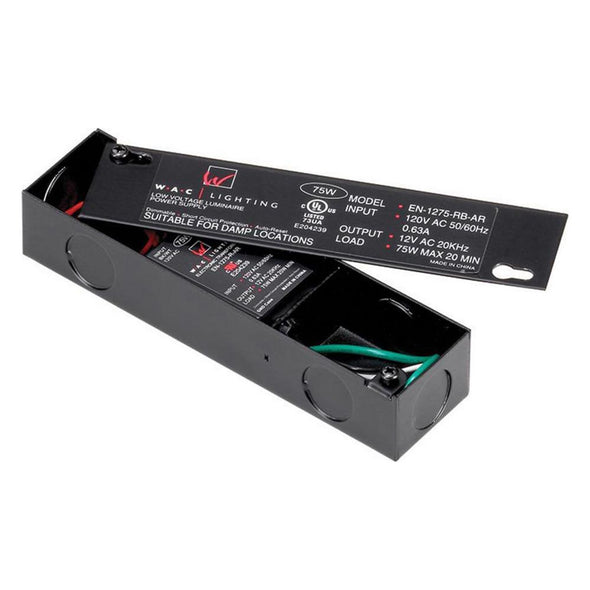

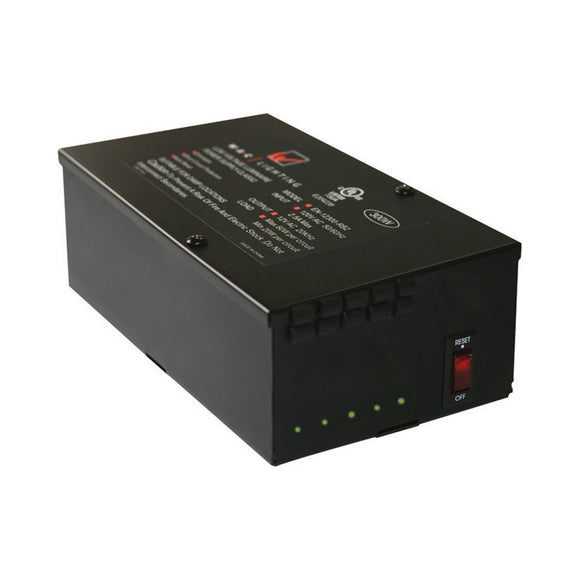

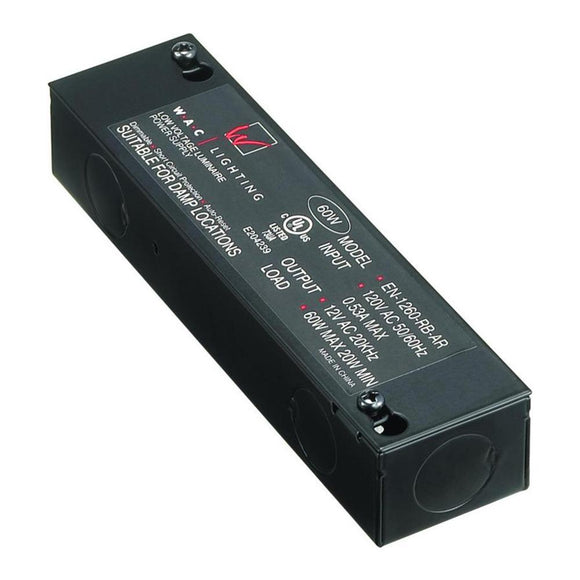

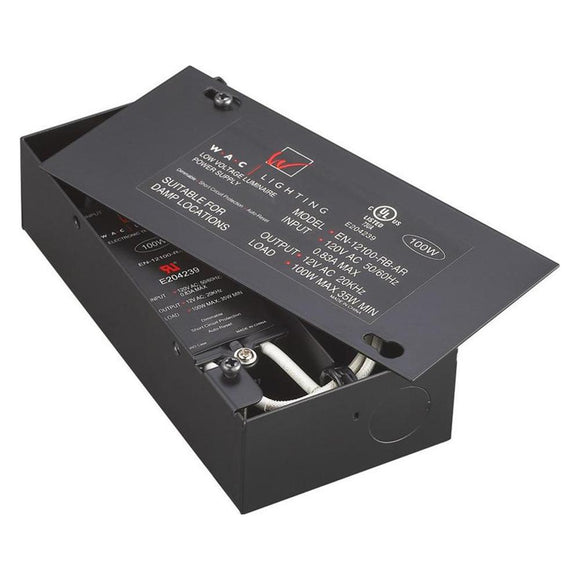

Combining Class 2 Transformers in a single package creates a single source to wire multiple runs of low voltage fixtures such as under cabinet and display luminaires.
Features
- Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques
- Intrinsically safe, Class 2 transformers permit no greater than a 5 amp current be drawn
- Non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
- Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable
- Powers most cabinet fixtures
- Dimming: Dimmable with electronic low voltage dimmers
- Dimmers should always be installed on the primary side of the transformer
- Enclosure has knockouts on three sides
- Screw holes are located on one long side for securing enclosure in place
- UL Listed
Current selected SKU:
Other available SKUs: EN-12100-RB-AR, EN-12120-RB2, EN-12150-RB-AR, EN-12180-RB2, EN-12300-RB2 , EN-1260-RB-AR, EN-1260-RB2, EN-B12PY-AR show more
"WAC Lighting 12V Enclosed Electronic Transformer" (Stock ID 312233797)
As provided by WAC Lighting:
Manufacturer's 5 year warranty.
Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.
WARNING For California Residents
Dimensions:
1 x 60 Watts:
- Overall: 6.6 in W x 1.6 in D x 1.25 in H
2 x 60 Watts:
- Overall: 6 in W x 3.25 in D x 2.6 in H
3 x 60 Watts:
- Overall: 6.75 in W x 3.6 in D x 2.6 in H
5 x 60 Watts:
- Overall: 8.25 in W x 4.6 in D x 2.6 in H
100 Watts:
- Overall: 6.5 in W x 3 in D x 1.25 in H
60 Watts:
- Overall: 6.5 in W x 1.6 in D x 1.25 in H
150 Watts:
- Overall: 6.5 in W x 3 in D x 1.25 in H
250 Watts:
- Overall: 6.25 in W x 3.4 in D x 2.1 in H
Power:
- Output: 12V
- Frequency: 20khz
- 1W minimum load
Listing
- UL
Built-in auto reset, soft start, short and overload circuit protection features.
The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp.
