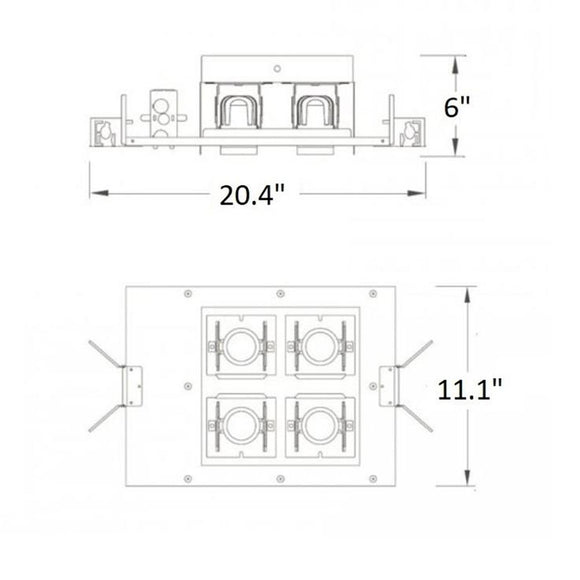

Dimensions:
- Overall: 20.4 in W x 11.1 in D x 6 in H
Lamp Type:
- LED
Bulbs:
Non-IC / ELV Dimmer
Spot - 20 Degrees:
- 4 x 16W 120V 4675 Lumens, 85CRI, 2700K LED lamp
- 4 x 16W 120V 4860 Lumens, 85CRI, 3000K LED lamp
- 4 x 16W 120V 5025 Lumens, 85CRI, 3500K LED lamp
- 4 x 16W 120V 4925 Lumens, 85CRI, 4000K LED lamp
- 4 x 16W 120V 3800 Lumens, 90CRI, 2700K LED lamp
- 4 x 16W 120V 4450 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 4 x 16W 120V 4800 Lumens, 85CRI, 2700K LED lamp
- 4 x 16W 120V 4900 Lumens, 85CRI, 3000K LED lamp
- 4 x 16W 120V 4950 Lumens, 85CRI, 3500K LED lamp
- 4 x 16W 120V 4925 Lumens, 85CRI, 4000K LED lamp
- 4 x 16W 120V 3750 Lumens, 90CRI, 2700K LED lamp
- 4 x 16W 120V 4500 Lumens, 90CRI, 3000K LED lamp
Non-IC / 0-10V Dimmer
Spot - 20 Degrees:
- 4 x 16W 120V 4600 Lumens, 85CRI 2700K LED lamp
- 4 x 16W 120V 4800 Lumens, 85CRI 3000K LED lamp
- 4 x 16W 120V 4875 Lumens, 85CRI, 3500K LED lamp
- 4 x 16W 120V 5500 Lumens, 85CRI, 4000K LED lamp
- 4 x 16W 120V 3950 Lumens, 90CRI, 2700K LED lamp
- 4 x 16W 120V 4075 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 4 x 16W 120V 4525 Lumens, 85CRI, 2700K LED lamp
- 4 x 16W 120V 4700 Lumens, 85CRI, 3000K LED lamp
- 4 x 16W 120V 4800 Lumens, 85CRI, 3500K LED lamp
- 4 x 16W 120V 5400 Lumens, 85CRI, 4000K LED lamp
- 4 x 16W 120V 3925 Lumens, 90CRI, 2700K LED lamp
- 4 x 16W 120V 4000 Lumens, 90CRI, 3000K LED lamp
Listing:
- UL
- cUL
- ETL
- Title 24 (for 90CRI)
- Damp Rated
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Product URL
item #:
Prepared for:
Project:
Room:
Placement:
Approval:
- Shipping Cost: Free Shipping
-
Shipping Time: Please make a selection.
- Shop with Confidence: 30 Day Returns
- # SKU: Make a selection
- Quick Ship
- UL Listed
- Warranty Included
Description

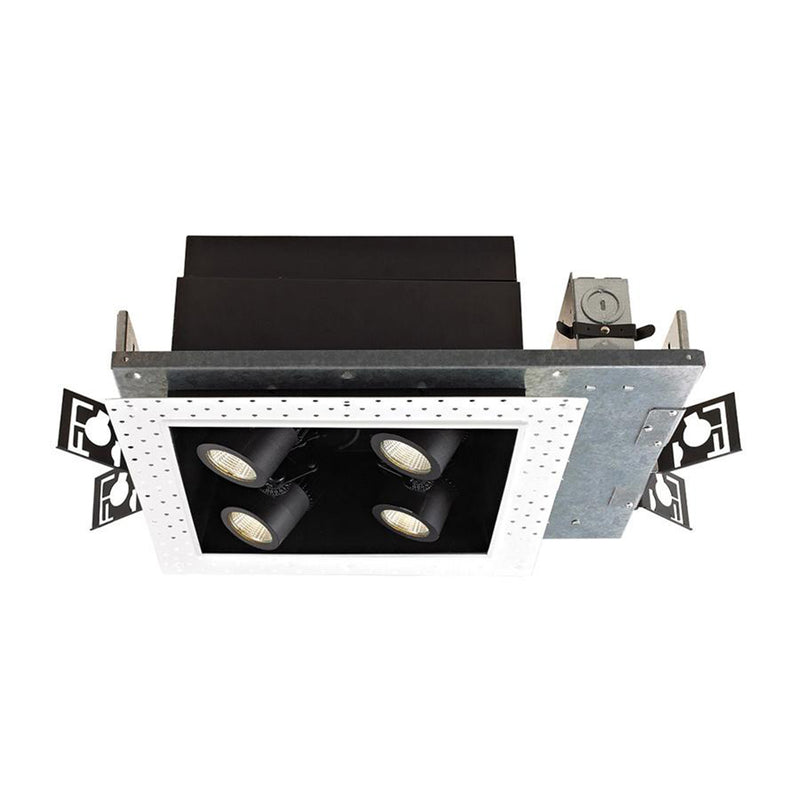

The Precision Multiple Spot Housing is for use with Precision Multiple Spot Trims. The fixture is retractable and adjustable up to 90 degrees.
Features
- Precision Multiple Spots Collection
- For use with Precision Multiple Spots Trims
- 365 degree horizontal rotation and 180 degree vertical tilt
- Accepts one replacement lens
- Accessories not included, but might be used in some applications: Lenses and Louvers
- See housing specs below for more information
- UL Listed
- ETL Listed
- Damp rated for bathrooms and covered patios
- 90CRI versions Title 24 compliant
- Energy Star Rated
- Available in Non-IC housing with specific dimming
- Available in Flood or Spot beam angle
- Available in various CRI and color temperatures
- Available in Black finish
Housing Specs
Non-IC / ELV Dimmer:- New Construction
- Non-IC Rated
- Non-IC Housings require three inches of clearance from insultation on all sides; 0.5" of sheetrock should be considered when planning for housing installation
- 120 Volt
- Dimmable with Electronic Low Voltage dimmer
- New Construction
- Non-IC Rated
- Non-IC Housings require three inches of clearance from insultation on all sides; 0.5" of sheetrock should be considered when planning for housing installation
- Universal Driver for 120V and 277V applications
Current selected SKU:
Other available SKUs: MT-4LD226N-F27-BK, MT-4LD226N-F30-BK, MT-4LD226N-F35-BK, MT-4LD226N-F40-BK, MT-4LD226N-F927-BK , MT-4LD226N-F930-BK, MT-4LD226N-S27-BK, MT-4LD226N-S30-BK, MT-4LD226N-S35-BK, MT-4LD226N-S40-BK, MT-4LD226N-S927-BK, MT-4LD226N-S930-BK, MT4LD226NE-F27-BK, MT4LD226NE-F30-BK, MT4LD226NE-F35-BK, MT4LD226NE-F40-BK, MT4LD226NE-F927-BK, MT4LD226NE-F930-BK, MT4LD226NE-S27-BK, MT4LD226NE-S30-BK, MT4LD226NE-S35-BK, MT4LD226NE-S40-BK, MT4LD226NE-S927-BK, MT4LD226NE-S930-BK show more
15103198
"WAC Lighting Precision Multiple Spots 2 x 2 Light Housing" (Stock ID 78816804873)
As provided by WAC Lighting:
5 Year Warranty.
