WAC Lighting
Mini Multiple Spots Three Light Recessed Trim and Housing
Product Options Available
Finish
Housing
Beam Angle/CRI/Color Temperature
Specifications

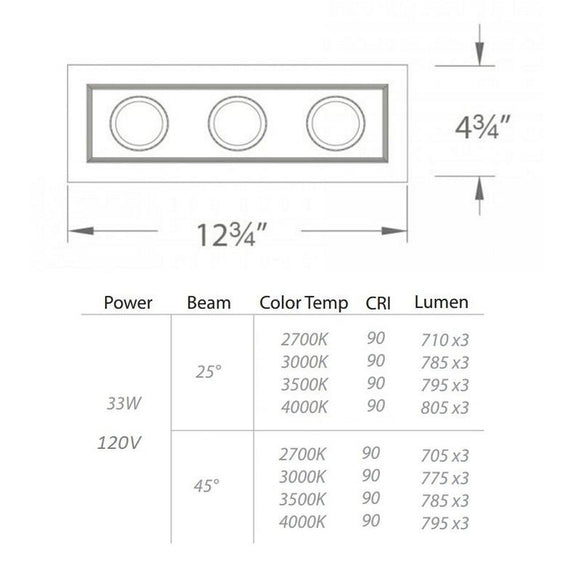

Dimensions:
- Overall: 12.75 in W x 4.75 in D
Lamp Type:
- LED
Bulbs:
25 Degree:
- 3 x 33W 120V 710 Lumens, 90CRI, 2700K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 785 Lumens, 90CRI, 3000K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 795 Lumens, 90CRI, 3500K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 805 Lumens, 90CRI, 4000K LED lamp; 50,000 rated life hours
45 Degree:
- 3 x 33W 120V 705 Lumens, 90CRI, 2700K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 775 Lumens, 90CRI, 3000K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 785 Lumens, 90CRI, 3500K LED lamp; 50,000 rated life hours
- 3 x 33W 120V 795 Lumens, 90CRI, 4000K LED lamp; 50,000 rated life hours
Listing:
- UL
- cUL
- Damp Location
- Title 24
Materials
Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Additional Details
Product URL
item #:
Call us: 1-888-222-4410
Prepared by:
Prepared for:
Project:
Room:
Placement:
Approval:
