WAC Lighting
Precision Multiple Spots One Light Housing
Product Options Available
Housing Rating/Dimmer
Beam Angle
CRI/Color Temperature
Specifications

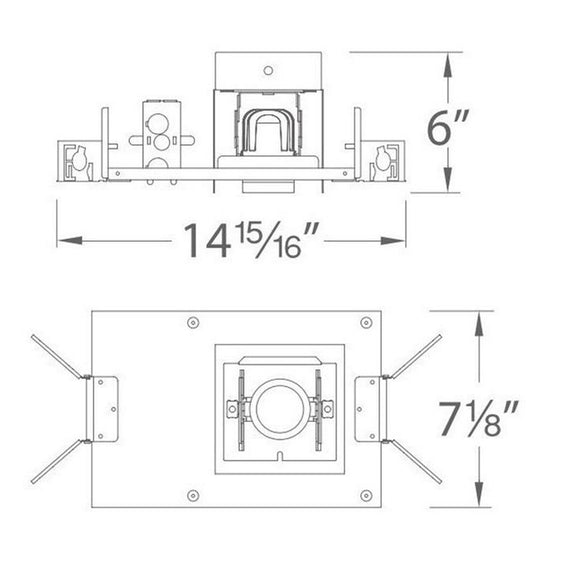

Dimensions:
- Overall: 14.9 in W x 7.1 in D x 6 in H
Lamp Type:
- LED
Bulbs:
IC Rated / ELV Dimmer
Spot - 20 Degrees:
- 1 x 16W 120V 994 Lumens, 85CRI, 2700K LED lamp
- 1 x 16W 120V 857 Lumens, 85CRI, 3000K LED lamp
- 1 x 16W 120V 1000 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1113 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 775 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 794 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 1 x 16W 120V 957 Lumens, 85CRI, 2700 or 3000K LED lamp
- 1 x 16W 120V 982 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1107 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 763 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 782 Lumens, 90CRI, 3000K LED lamp
Non-IC / ELV Dimmer
Spot - 20 Degrees:
- 1 x 16W 120V 1169 Lumens, 85CRI, 2700K LED lamp
- 1 x 16W 120V 1219 Lumens, 85CRI, 3000K LED lamp
- 1 x 16W 120V 1257 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1232 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 200 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 1113 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 1 x 16W 120V 1200 Lumens, 85CRI, 2700K LED lamp
- 1 x 16W 120V 1225 Lumens, 85CRI, 3000K LED lamp
- 1 x 16W 120V 1238 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1232 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 938 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 1125 Lumens, 90CRI, 3000K LED lamp
Non-IC / 0-10V Dimmer
Spot - 20 Degrees:
- 1 x 16W 120V 1150 Lumens, 85CRI 2700K LED lamp
- 1 x 16W 120V 1200 Lumens, 85CRI 3000K LED lamp
- 1 x 16W 120V 1219 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1375 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 988 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 1019 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 1 x 16W 120V 1132 Lumens, 85CRI, 2700K LED lamp
- 1 x 16W 120V 1175 Lumens, 85CRI, 3000K LED lamp
- 1 x 16W 120V 1200 Lumens, 85CRI, 3500K LED lamp
- 1 x 16W 120V 1350 Lumens, 85CRI, 4000K LED lamp
- 1 x 16W 120V 982 Lumens, 90CRI, 2700K LED lamp
- 1 x 16W 120V 1000 Lumens, 90CRI, 3000K LED lamp
Listing:
- UL
- cUL
- ETL
- Title 24 (for 90 CRI)
- Damp Location
Materials
Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
