WAC Lighting

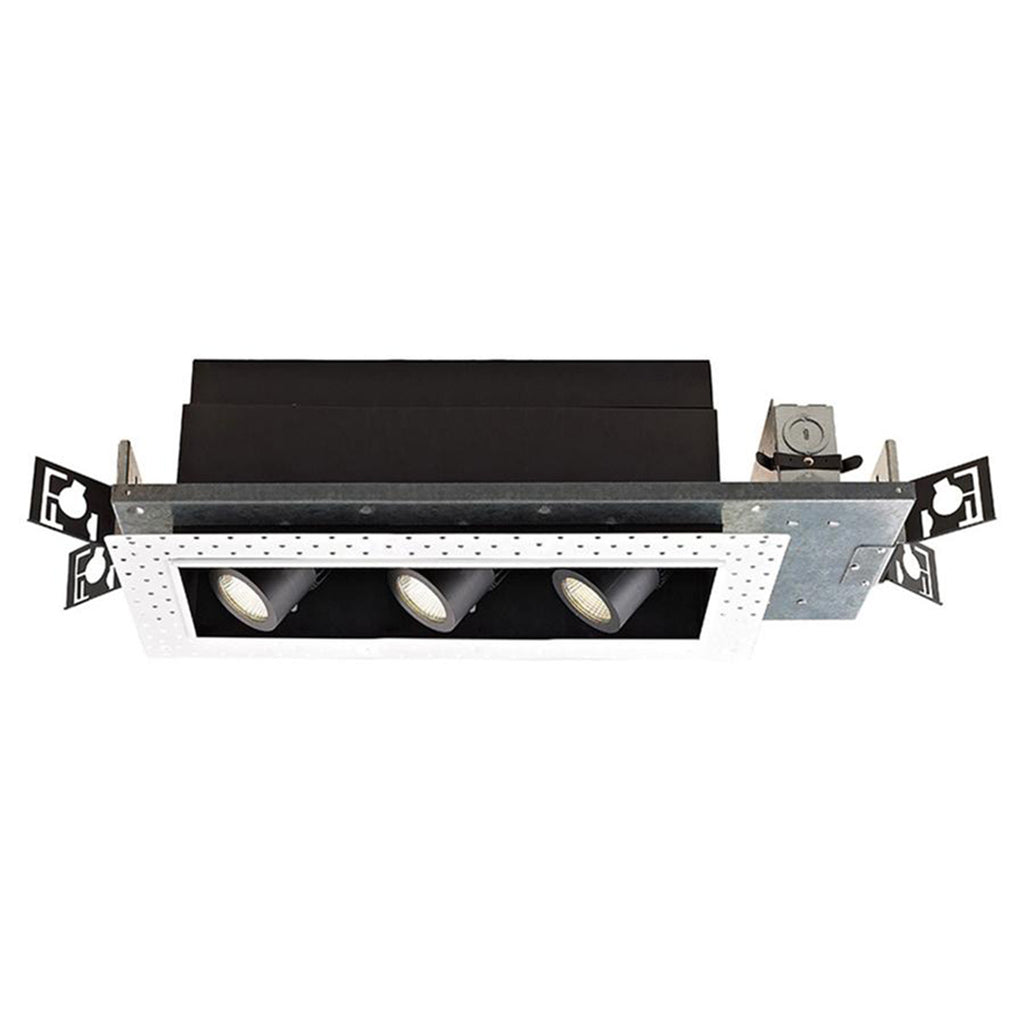

Precision Multiple Spots Three Light Housing
Product Options Available
Housing Rating/Dimmer
Beam Angle
CRI/Color Temperature
Specifications

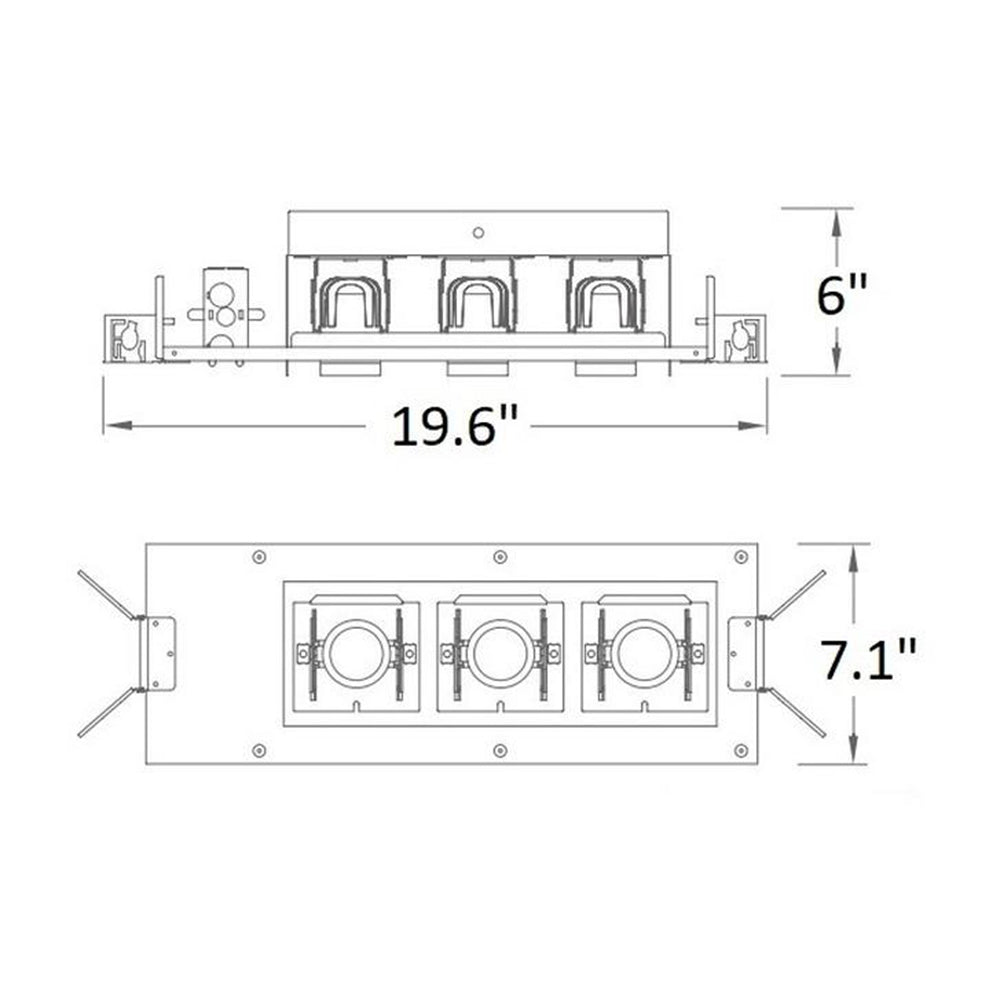

Dimensions:
- Overall: 19.6 in W x 7.1 in D x 6 in H
Lamp Type:
- LED
Bulbs:
IC Rated / ELV Dimmer
Spot - 20 Degrees:
- 3 x 16W 120V 2869 Lumens, 85CRI, 2700K LED lamp
- 3 x 16W 120V 2569 Lumens, 85CRI, 3000K LED lamp
- 3 x 16W 120V 3000 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 3338 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2325 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 3000 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 3 x 16W 120V 2869 Lumens, 85CRI, 2700 or 3000K LED lamp
- 3 x 16W 120V 2944 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 3319 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2288 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 2344 Lumens, 90CRI, 3000K LED lamp
Non-IC / ELV Dimmer
Spot - 20 Degrees:
- 3 x 16W 120V 3507 Lumens, 85CRI, 2700K LED lamp
- 3 x 16W 120V 3645 Lumens, 85CRI, 3000K LED lamp
- 3 x 16W 120V 3769 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 3694 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2850 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 3338 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 3 x 16W 120V 3600 Lumens, 85CRI, 2700K LED lamp
- 3 x 16W 120V 3675 Lumens, 85CRI, 3000K LED lamp
- 3 x 16W 120V 3716 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 3694 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2813 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 3375 Lumens, 90CRI, 3000K LED lamp
Non-IC / 0-10V Dimmer
Spot - 20 Degrees:
- 3 x 16W 120V 3394 Lumens, 85CRI 2700K LED lamp
- 3 x 16W 120V 3525 Lumens, 85CRI 3000K LED lamp
- 3 x 16W 120V 3600 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 4050 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2944 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 3000 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 3 x 16W 120V 3450 Lumens, 85CRI, 2700K LED lamp
- 3 x 16W 120V 3600 Lumens, 85CRI, 3000K LED lamp
- 3 x 16W 120V 3657 Lumens, 85CRI, 3500K LED lamp
- 3 x 16W 120V 4125 Lumens, 85CRI, 4000K LED lamp
- 3 x 16W 120V 2963 Lumens, 90CRI, 2700K LED lamp
- 3 x 16W 120V 3057 Lumens, 90CRI, 3000K LED lamp
Listing:
- UL
- cUL
- ETL
- Title 24 (for 90 CRI)
- Damp Location
Materials
Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.
Trim, housing and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.
