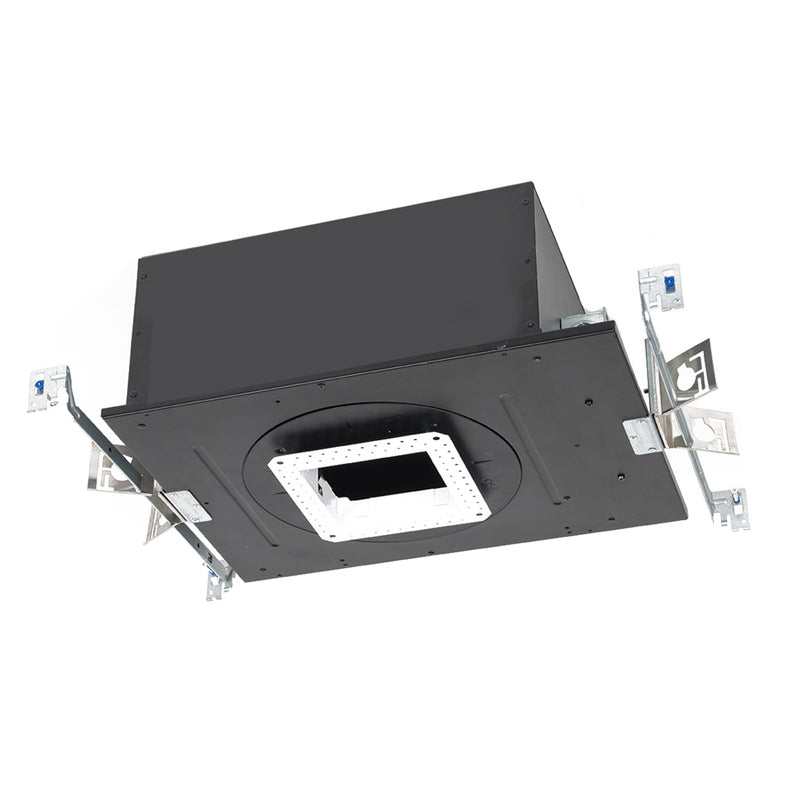

WAC Lighting Volta 4.5IN Square Trimless New Construction IC Housing

View product information
from $218
$218 Sorry that selection is not available. Please choose another option.

Shipping Cost: Free
Shipping Time: Please make a selection.
Discover Similar Products:
  • Product Information

    Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


    Features

    • Volta Collection
    • Suitable for interior use
    • Hardwired
    • Assembled in the USA
    • For use with Volta 4.5 inch square trimless trims
    • Trim shape and driver output must be specified with housing. Built-in indexing allows for quick and simple trim alignment. Universal mounting brackets with hangar bars included
    • Available with Lutron Driver (Housing with L1 in Part #) for maximum compatibility with any Lutron Lighting Control System
    • Smooth and continuous dimming to 1% with an Electronic Low Voltage (ELV) or 0-10V dimmer
    • ETL Listed
    • Energy Star Rated
    • Title 24
    • ADA Compliant
    • Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight versions (Invisible Trim only available on New Construction Models). Chicago Plenum Safety Rating and Emergency Backup battery options
    • Available in 15W, 25W or 36W
    • Quick Ship Quick Ship
    • ADA Compliant ADA Compliant
    • Energy Star Energy Star
    Product Details
    Proposition 65 WARNING For California Residents — Proposition 65 >
    Materials 20 Gauge cold rolled steel.
    Die cast spackle flange included.
    Specifications Dimensions:
    • Overall: 17.7 in W x 13.1 in D x 6.6 in H
    • Cutout: 5.1 in
    Lamp Type:
    • LED
    Bulbs:
    • 1 x 15W 120-240-277V Module LED lamp (not included)
    • 1 x 25W 120-240-277V Module LED lamp (not included)
    • 1 x 36W 120-240-277V Module LED lamp (not included)
    Listing:
    • ETL
    • cETL
    • Wet Location
    • Title 24
    • ADA
    SKU
    R4SNL-15, R4SNL-25, R4SNL-36, R4SNL-15EM, R4SNL-25EM, R4SNL-36EM, R4SCL-15, R4SCL-25, R4SCL-36, R4SCL-15EM, R4SCL-25EM, R4SCL-36EM
    Current selection:
    GTIN
    790576418650, 790576418667, 790576418674, 790576418681, 790576418698, 790576418704, 790576418711, 790576418728, 790576418735, 790576418742, 790576418759, 790576418766
    Current selection:
    Catalog ID 15064426
    Reference ID 77918896137
  • Shipping Details
    Shipping Time: Ships in 1 business day.
    Shipping Cost: Free

    Ships via 2Modern Standard Delivery.

    • Delivery: Standard shipping provides delivery to the front door of a residence or dock of a commercial building. The delivery team will transport the item(s) from the truck to the first available dry, protected area outside your home (front porch, garage, or similar).
    • What's Included: Standard Delivery includes delivery to the front door. If the destination is a multi-unit building, the order may be delivered inside the entrance to the building, but not to specific apartment door. In some cases, a signature may be required. Please note: this option does not include inside delivery to room of choice, unpacking, assembly, or removal of packing debris. Please contact Customer Service at (888) 222-4410 if additional delivery options are needed.

    Cancellation Policy
    If you need to cancel an order, we understand... that happens. Please just notify us as quickly as possible so you can be refunded 100%. If an item has already shipped (shipping timeframes vary, so please review item’s product page), customer will incur shipping charges which will be deducted from your refund, since the item has already been packaged and routed, charges for which 2Modern will not be reimbursed from shipping companies.
    Return Policy
    2Modern has a generous and convenient return policy, accommodating product returns within 30 days. The only exception is with customized orders, noted on individual product pages. Please see further details on our Return Policy page.
  • Product Warranty
    As provided by WAC Lighting:
    5 years functional, 2 years finish.
