WAC Lighting

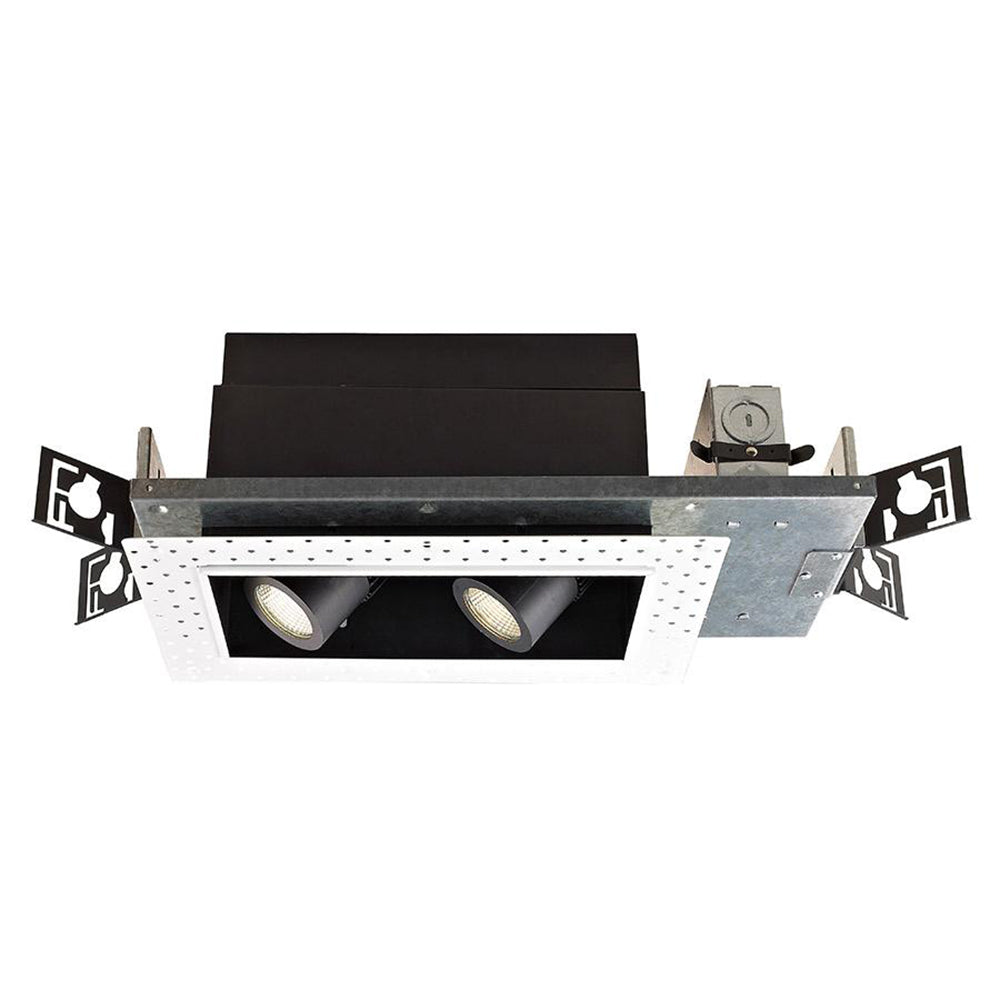

Precision Multiple Spots Two Light Housing
Product Options Available
Housing Rating/Dimmer
Beam Angle
CRI/Color Temperature
Specifications

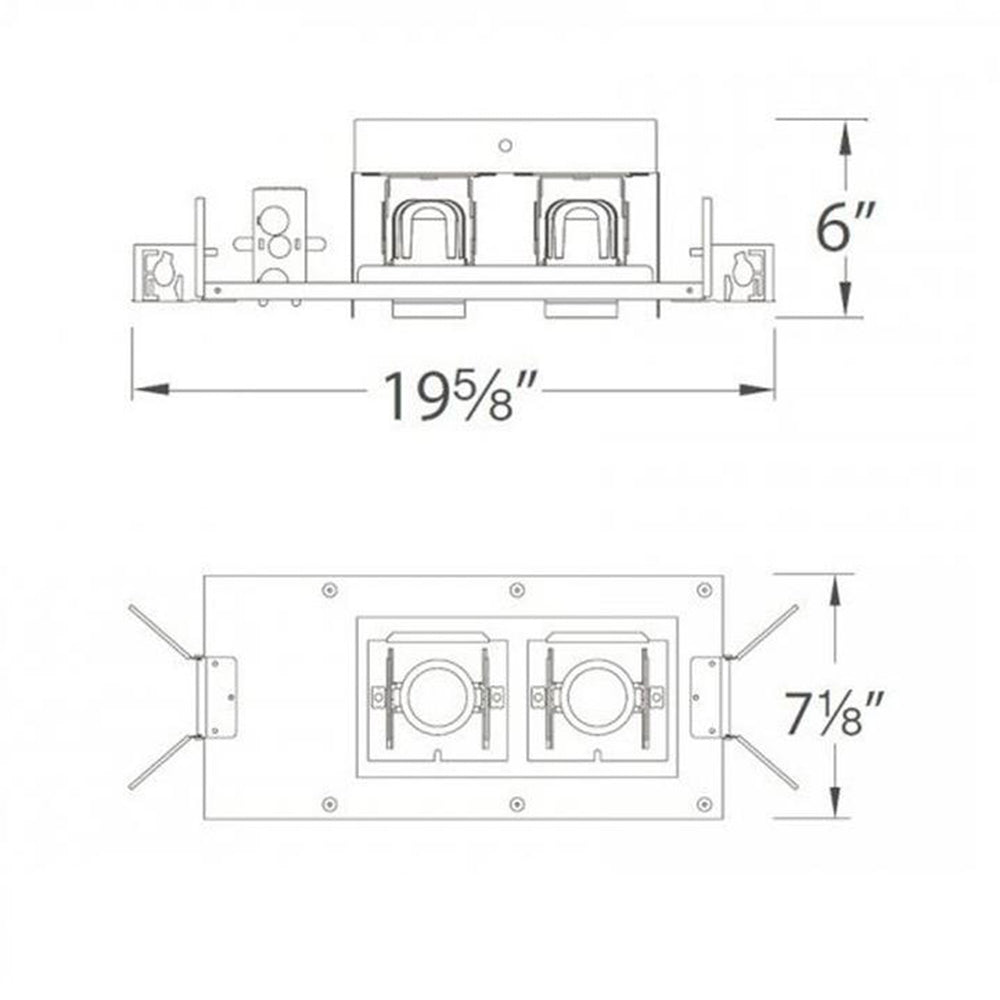

Dimensions:
- Overall: 19.6 in W x 7.1 in D x 6 in H
Lamp Type:
- LED
Bulbs:
IC Rated / ELV Dimmer
Spot - 20 Degrees:
- 2 x 16W 120V 1913 Lumens, 85CRI, 2700K LED lamp
- 2 x 16W 120V 1713 Lumens, 85CRI, 3000K LED lamp
- 2 x 16W 120V 2000 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 2225 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 1550 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 1588 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 2 x 16W 120V 2869 Lumens, 85CRI, 2700 or 3000K LED lamp
- 2 x 16W 120V 2944 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 3319 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 2288 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 2344 Lumens, 90CRI, 3000K LED lamp
Non-IC / ELV Dimmer
Spot - 20 Degrees:
- 2 x 16W 120V 2338 Lumens, 85CRI, 2700K LED lamp
- 2 x 16W 120V 2430 Lumens, 85CRI, 3000K LED lamp
- 2 x 16W 120V 2513 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 2463 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 1900 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 2225 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 2 x 16W 120V 2400 Lumens, 85CRI, 2700K LED lamp
- 2 x 16W 120V 2450 Lumens, 85CRI, 3000K LED lamp
- 2 x 16W 120V 2475 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 2463 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 1875 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 2250 Lumens, 90CRI, 3000K LED lamp
Non-IC / 0-10V Dimmer
Spot - 20 Degrees:
- 2 x 16W 120V 2300 Lumens, 85CRI 2700K LED lamp
- 2 x 16W 120V 2400 Lumens, 85CRI 3000K LED lamp
- 2 x 16W 120V 2438 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 2750 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 1975 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 2038 Lumens, 90CRI, 3000K LED lamp
Flood - 40 Degrees:
- 2 x 16W 120V 2263 Lumens, 85CRI, 2700K LED lamp
- 2 x 16W 120V 2250 Lumens, 85CRI, 3000K LED lamp
- 2 x 16W 120V 2400 Lumens, 85CRI, 3500K LED lamp
- 2 x 16W 120V 2700 Lumens, 85CRI, 4000K LED lamp
- 2 x 16W 120V 1963 Lumens, 90CRI, 2700K LED lamp
- 2 x 16W 120V 2000 Lumens, 90CRI, 3000K LED lamp
Listing:
- UL
- cUL
- ETL
- Title 24 (for 90 CRI)
- Damp Location
Materials
Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
