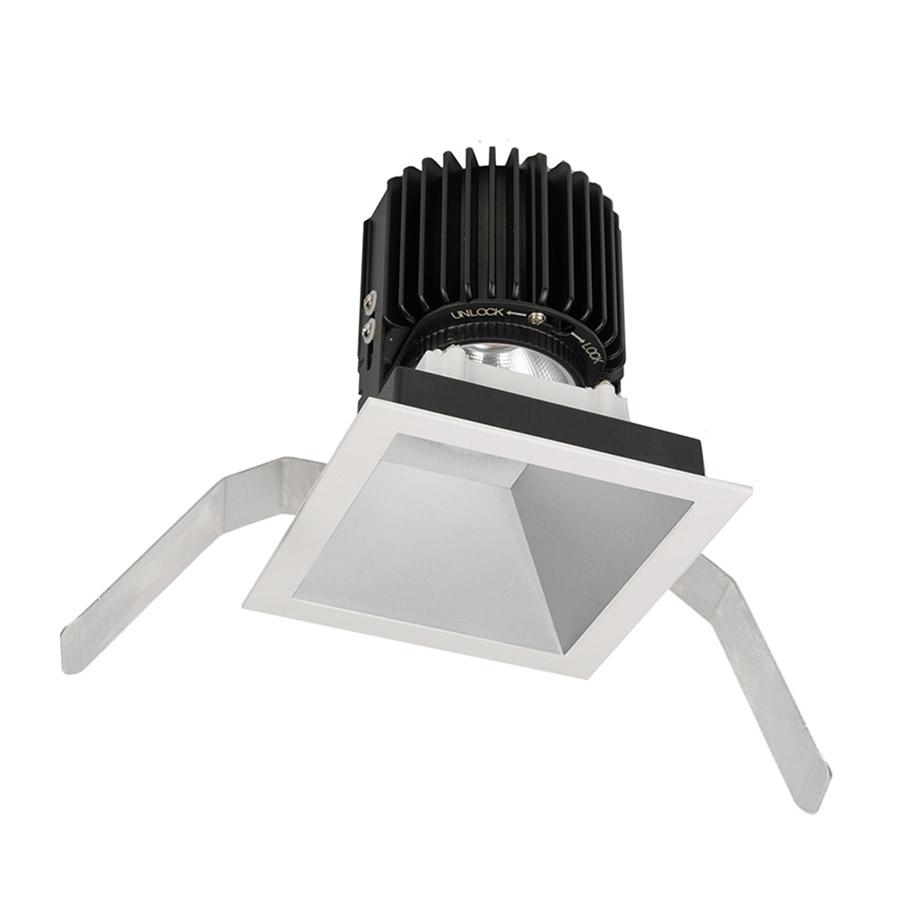

WAC Lighting Volta 4.5IN Square Downlight Trim

View product information
from $278.95
Please make a selection

Please note, making selections of colors, sizes or styles may change item pricing.

Volta 4.5IN Square Downlight Trim Finish option Haze White Volta 4.5IN Square Downlight Trim Finish option Copper Bronze Volta 4.5IN Square Downlight Trim Finish option White Volta 4.5IN Square Downlight Trim Finish option Black Volta 4.5IN Square Downlight Trim Finish option Black White Volta 4.5IN Square Downlight Trim Finish option Haze
Volta 4.5IN Square Downlight Trim Beam Spread option Spot 15 Degrees Volta 4.5IN Square Downlight Trim Beam Spread option Narrow 25 Degrees Volta 4.5IN Square Downlight Trim Beam Spread option Flood 45 Degrees Volta 4.5IN Square Downlight Trim Beam Spread option Wide Flood 60 Degrees
Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 85CRI / 2700K Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 85CRI / 3000K Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 90CRI / 2700K Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 90CRI / 3000K Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 85CRI / 3500K Volta 4.5IN Square Downlight Trim CRI/Color Temperature option 85CRI / 4000K
Shipping Cost: Free
Shipping Time: Please make a selection.
Shop with Confidence: 30 day returns
Discover Similar Products:
  • Product Information

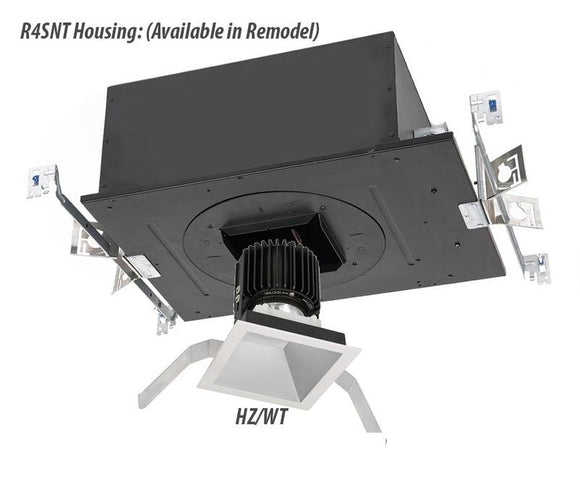

    Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


    Features

    • Volta Collection
    • Suitable for interior use
    • Textured glass lens
    • Hardwired
    • Assembled in the USA
    • 2 inch lens regress for superior glare control
    • Field selectable light engine height for cut-off angle adjustment of 30-34 degrees and accessory use
    • Accepts one replacement lens and one accessory
    • Accessories not included, but might be used in some applications: Lenses and Louvers
    • Available with Lutron Driver (Housing with L1 in Part #) for maximum compatibility with any Lutron Lighting Control System
    • Smooth and continuous dimming to 1% with an Electronic Low Voltage (ELV) or 0-10V dimmer
    • ETL Listed
    • Wet rated for exterior use
    • Title 24
    • ADA Compliant
    • Energy Star Rated
    • Available in Spot, Narrow, Flood or Wide beam spread
    • Available in various CRI/Color Temperatures and finishes
    • Quick Ship Quick Ship
    • ADA Compliant ADA Compliant
    • Energy Star Energy Star
    Product Details
    Proposition 65 WARNING For California Residents — Proposition 65 >
    Materials Durable die-cast aluminum construction, glass.

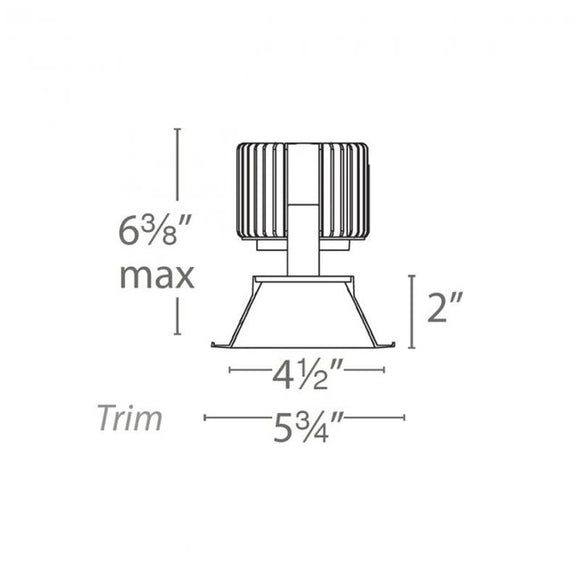

    Specifications Dimensions:
    • Overall: 5.75 in W x 5.75 in D x 6.4 in H max
    • Cutout: 5.1 in
    • Trim Size: 5.75 in
    • Aperture: 4.5 in
    Lamp Type:
    • LED
    Bulbs:
    Spot 15 Degrees:
    • 1 x 15-25-36W 120-240-277V 634-1303 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 676-1390 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 707-1453 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 712-1466 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 516-1062 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 551-1133 Lumens, 90CRI, 3000K LED lamp (included)
    Narrow 25 Degrees:
    • 1 x 15-25-36W 120-240-277V 1300-2671 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1386-2850 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1448-2979 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1460-3004 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1058-2178 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1129-2323 Lumens, 90CRI, 3000K LED lamp (included)
    Flood 45 Degrees:
    • 1 x 15-25-36W 120-240-277V 1270-2610 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1354-2785 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1415-2911 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1426-2936 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1034-2128 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1103-2270 Lumens, 90CRI, 3000K LED lamp (included)
    Wide Flood 60 Degrees:
    • 1 x 15-25-36W 120-240-277V 1109-2277 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1181-2430 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1235-2540 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1245-2562 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 902-1857 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 963-1981 Lumens, 90CRI, 3000K LED lamp (included)
    Listing:
    • ETL
    • cETL
    • ADA
    • Title 24 (for 90CRI version)
    • Wet Location
    SKU
    Current selection: Please make a selection.
    List of SKUs available: R4SD2T-S827-HZWT, R4SD2T-S830-HZWT, R4SD2T-S927-HZWT, R4SD2T-S930-HZWT, R4SD2T-N827-HZWT, R4SD2T-N830-HZWT, R4SD2T-N927-HZWT, R4SD2T-N930-HZWT, R4SD2T-F827-HZWT, R4SD2T-F830-HZWT, R4SD2T-F927-HZWT, R4SD2T-F930-HZWT, R4SD2T-W927-HZWT, R4SD2T-W930-HZWT, R4SD2T-S827-CB, R4SD2T-S830-CB, R4SD2T-S927-CB, R4SD2T-S930-CB, R4SD2T-S835-CB, R4SD2T-S840-CB, R4SD2T-N827-CB, R4SD2T-N830-CB, R4SD2T-N927-CB, R4SD2T-N930-CB, R4SD2T-N835-CB, R4SD2T-N840-CB, R4SD2T-F827-CB, R4SD2T-F830-CB, R4SD2T-F927-CB, R4SD2T-F930-CB, R4SD2T-F835-CB, R4SD2T-F840-CB, R4SD2T-W827-CB, R4SD2T-W830-CB, R4SD2T-W927-CB, R4SD2T-W930-CB, R4SD2T-W835-CB, R4SD2T-W840-CB, R4SD2T-S827-WT, R4SD2T-S830-WT, R4SD2T-S927-WT, R4SD2T-S930-WT, R4SD2T-N827-WT, R4SD2T-N830-WT, R4SD2T-N927-WT, R4SD2T-N930-WT, R4SD2T-F827-WT, R4SD2T-F830-WT, R4SD2T-F927-WT, R4SD2T-F930-WT, R4SD2T-W927-WT, R4SD2T-W930-WT, R4SD2T-S927-BK, R4SD2T-S930-BK, R4SD2T-N927-BK, R4SD2T-N930-BK, R4SD2T-F927-BK, R4SD2T-F930-BK, R4SD2T-W927-BK, R4SD2T-W930-BK, R4SD2T-S927-BKWT, R4SD2T-S930-BKWT, R4SD2T-N927-BKWT, R4SD2T-N930-BKWT, R4SD2T-F927-BKWT, R4SD2T-F930-BKWT, R4SD2T-W927-BKWT, R4SD2T-W930-BKWT, R4SD2T-S927-HZ, R4SD2T-S930-HZ, R4SD2T-N927-HZ, R4SD2T-N930-HZ, R4SD2T-F927-HZ, R4SD2T-F930-HZ, R4SD2T-W927-HZ, R4SD2T-W930-HZ
    GTIN
    790576409740, 790576409849, 790576409795, 790576409894, 790576410043, 790576410142, 790576410098, 790576410197, 790576410340, 790576410449, 790576410395, 790576410494, 790576410692, 790576410791, 790576449425, 790576449449, 790576449432, 790576449456, 790576449463, 790576449470, 790576449487, 790576449500, 790576449494, 790576449517, 790576449524, 790576449531, 790576449548, 790576449562, 790576449555, 790576449579, 790576449586, 790576449593, 790576449609, 790576449623, 790576449616, 790576449630, 790576449647, 790576449654, 790576409719, 790576409818, 790576409764, 790576409863, 790576410012, 790576410111, 790576410067, 790576410166, 790576410319, 790576410418, 790576410364, 790576410463, 790576410661, 790576410760, 790576409801, 790576409900, 790576410104, 790576410203, 790576410401, 790576410500, 790576410708, 790576410807, 790576409788, 790576409887, 790576410081, 790576410180, 790576410388, 790576410487, 790576410685, 790576410784, 790576409771, 790576409870, 790576410074, 790576410173, 790576410371, 790576410470, 790576410678, 790576410777
    Catalog ID 15064388
    Reference ID "WAC Lighting Volta 4.5IN Square Downlight Trim" (Stock ID 77918666761)
  • Shipping Details
    Shipping Cost: Free

    Ships via 2Modern Standard Delivery.

    • Delivery: Standard shipping provides delivery to the front door of a residence or dock of a commercial building. The delivery team will transport the item(s) from the truck to the first available dry, protected area outside your home (front porch, garage, or similar).
    • What's Included: Standard Delivery includes delivery to the front door. If the destination is a multi-unit building, the order may be delivered inside the entrance to the building, but not to specific apartment door. In some cases, a signature may be required. Please note: this option does not include inside delivery to room of choice, unpacking, assembly, or removal of packing debris. Please contact Customer Service at (888) 222-4410 if additional delivery options are needed.

    Cancellation Policy
    If you need to cancel an order, we understand... that happens. Please just notify us as quickly as possible so you can be refunded 100%. If an item has already shipped (shipping timeframes vary, so please review item’s product page), customer will incur shipping charges which will be deducted from your refund, since the item has already been packaged and routed, charges for which 2Modern will not be reimbursed from shipping companies.
    Return Policy
    2Modern has a generous and convenient return policy, accommodating product returns within 30 days. The only exception is with customized orders, noted on individual product pages. Please see further details on our Return Policy page.
  • Product Warranty
    As provided by WAC Lighting:
    5 years functional, 2 years finish.
