WAC Lighting

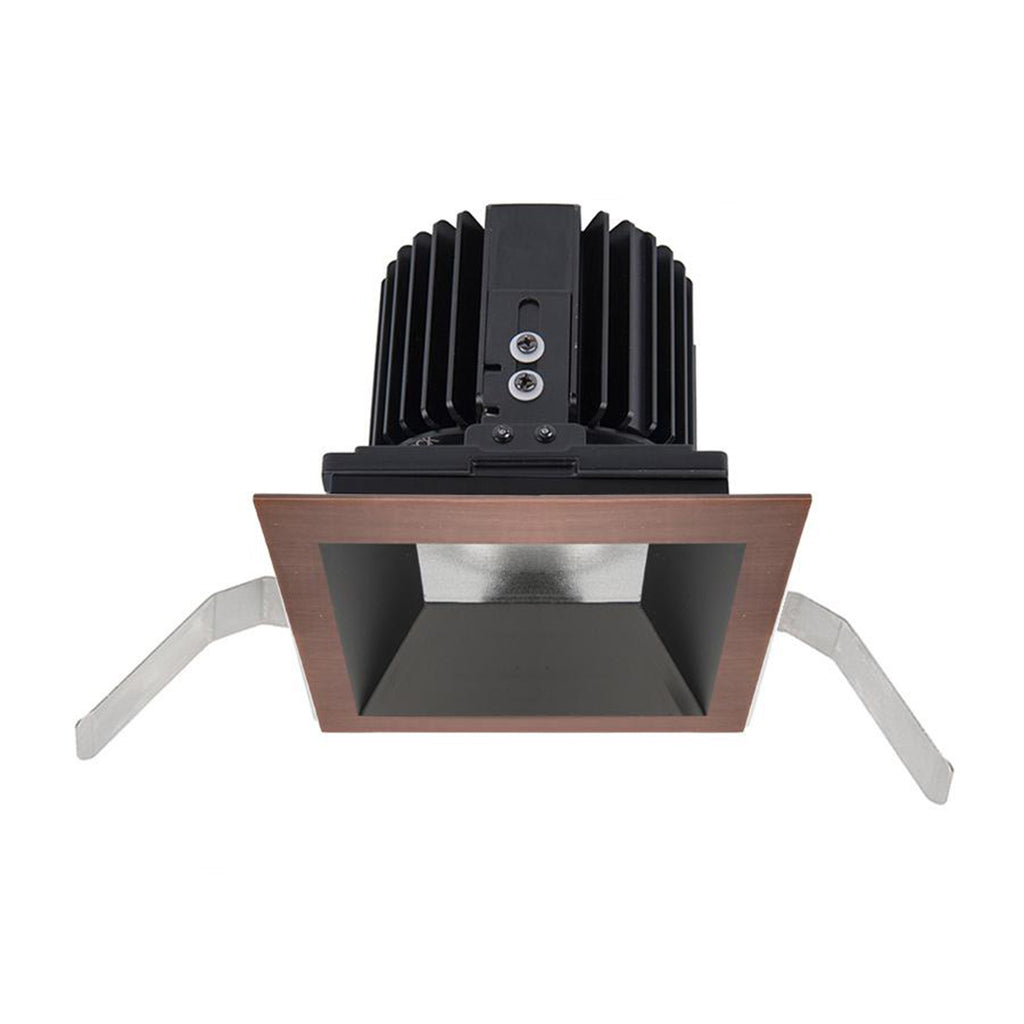

Volta Shallow 4.5IN Square Downlight Trim
Product Options Available
Finish
Beam Spread
CRI/Color Temperature
Specifications

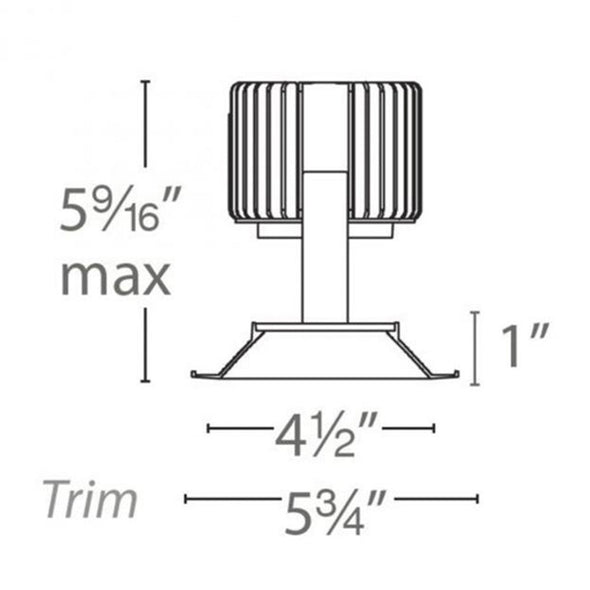

Dimensions:
- Overall: 5.75 in W x 5.75 in D x 5.6 in H
- Cutout: 5.1 in
- Trim Size: 5.75 in
- Aperture: 4.5 in
Lamp Type:
- LED
Bulbs:
Spot 15 Degrees:
- 1 x 15-25-36W 120-240-277V 655-1345 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 698-1435 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 729-1500 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 735-1513 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 533-1097 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 569-1170 Lumens, 90CRI, 3000K LED lamp (included)
Narrow 25 Degrees:
- 1 x 15-25-36W 120-240-277V 1277-2624 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1361-2800 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1423-2926 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1434-2952 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1039-2140 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1109-2282 Lumens, 90CRI, 3000K LED lamp (included)
Flood 45 degrees:
- 1 x 15-25-36W 120-240-277V 1259-2587 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1342-2760 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1403-2885 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1414-2910 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1024-2109 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1093-2250 Lumens, 90CRI, 3000K LED lamp (included)
Wide Flood 60 Degrees:
- 1 x 15-25-36W 120-240-277V 1170-2404 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1247-2565 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1304-2681 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1314-2704 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 952-1960 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1016-2091 Lumens, 90CRI, 3000K LED lamp (included)
Listing:
- ETL
- cETL
- ADA
- Title 24 (for 90CRI version)
- Wet Location
Materials
Die cast aluminum, glass.
