WAC Lighting Volta Shallow 4.5IN Square Trimless Downlight Trim

View product information
from $243
$243 Sorry that selection is not available. Please choose another option.

Shipping Cost: Free
Shipping Time: Ships in 1 business day.
  • Product Information

    Volta LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.


    Features

    • Volta Collection

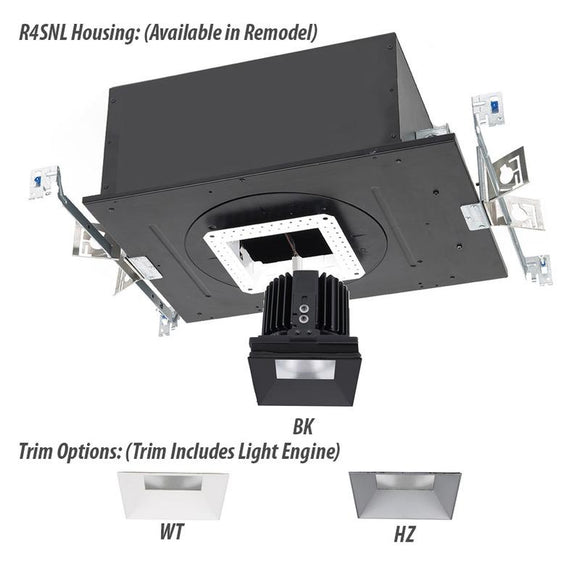

    • For use with Volta 4.5IN Square Trimless Housings
    • 2 inch lens regress for superior glare control
    • Field selectable light engine height for cut-off angle adjustment of 30-34 degrees
    • Accessories not included, but might be used in some applications: Lenses and Louvers
    • Accepts one replacement lens and one accessory
    • Dimmable with Electronic Low Voltage dimmer
    • ETL Listed
    • Wet rated for exterior installation
    • 90CRI versions Title 24 compliant
    • Energy Star rated
    • Avaialble in Spot, Narrow, Flood, or Wide beam spread
    • Available in various CRI and color temperatures
    • Available in Black or White finish
    • ADA Compliant ADA Compliant
    • Energy Star Energy Star
    Technical Details
    Materials Die Cast Aluminum.
    Specifications Dimensions:

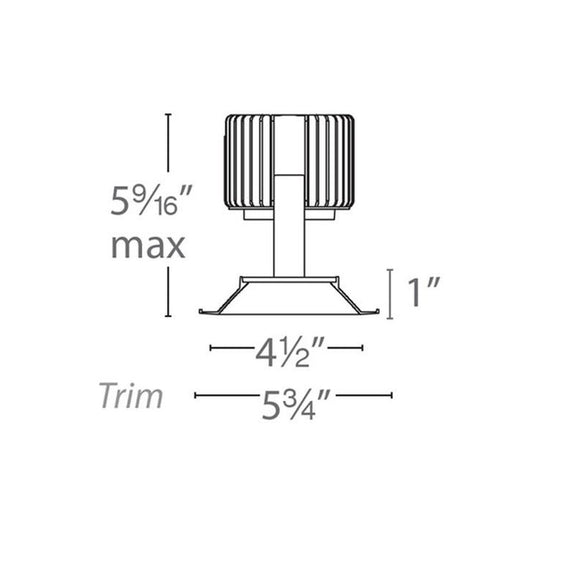

    • Overall: 5.75 in W x 5.75 in D x 5.6 in H
    Lamp Type:
    • LED
    Bulbs:
    Spot 15 Degrees:
    • 1 x 15-25-36W 120-240-277V 655-1345 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 698-1435 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 729-1500 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 735-1513 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 533-1097 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 569-1170 Lumens, 90CRI, 3000K LED lamp (included)
    Narrow 25 Degrees:
    • 1 x 15-25-36W 120-240-277V 1277-2624 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1361-2800 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1423-2926 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1434-2952 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1039-2140 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1109-2282 Lumens, 90CRI, 3000K LED lamp (included)
    Flood 45 degrees:
    • 1 x 15-25-36W 120-240-277V 1259-2587 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1342-2760 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1403-2885 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1414-2910 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1024-2109 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1093-2250 Lumens, 90CRI, 3000K LED lamp (included)
    Wide Flood 60 Degrees:
    • 1 x 15-25-36W 120-240-277V 1170-2404 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1247-2565 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1304-2681 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1314-2704 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 952-1960 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1016-2091 Lumens, 90CRI, 3000K LED lamp (included)
    Listing:
    • ETL
    • cETL
    • ADA
    • Title 24 (for 90CRI version)
    • Wet Location
    SKU
    R4SD1L-F827-CB, R4SD1L-F830-CB, R4SD1L-F835-CB, R4SD1L-F840-CB, R4SD1L-F927-CB, R4SD1L-F930-CB, R4SD1L-N827-CB, R4SD1L-N830-CB, R4SD1L-N835-CB, R4SD1L-N840-CB, R4SD1L-N927-CB, R4SD1L-N930-CB, R4SD1L-S827-CB, R4SD1L-S830-CB, R4SD1L-S835-CB, R4SD1L-S840-CB, R4SD1L-S927-CB, R4SD1L-S930-CB, R4SD1L-W827-CB, R4SD1L-W830-CB, R4SD1L-W835-CB, R4SD1L-W840-CB, R4SD1L-W927-CB, R4SD1L-W930-CB
    Current selection:
    GTIN
    790576451343, 790576451367, 790576451381, 790576451398, 790576451350, 790576451374, 790576451282, 790576451305, 790576451329, 790576451336, 790576451299, 790576451312, 790576451220, 790576451244, 790576451268, 790576451275, 790576451237, 790576451251, 790576451404, 790576451428, 790576451442, 790576451459, 790576451411, 790576451435
    Current selection:
    Catalog ID 15315445
    Reference ID 92898000905
  • Shipping Details
    Shipping Time: Ships in 1 business day.
    Shipping Cost: Free

    Ships via 2Modern Standard Delivery.

    • Delivery: Standard shipping provides delivery to the front door of a residence or dock of a commercial building. The delivery team will transport the item(s) from the truck to the first available dry, protected area outside your home (front porch, garage, or similar).
    • What's Included: Standard Delivery includes delivery to the front door. If the destination is a multi-unit building, the order may be delivered inside the entrance to the building, but not to specific apartment door. In some cases, a signature may be required. Please note: this option does not include inside delivery to room of choice, unpacking, assembly, or removal of packing debris. Please contact Customer Service at (888) 222-4410 if additional delivery options are needed.

    Cancellation Policy
    If you need to cancel an order, we understand... that happens. Please just notify us as quickly as possible so you can be refunded 100%. If an item has already shipped (shipping timeframes vary, so please review item’s product page), customer will incur shipping charges which will be deducted from your refund, since the item has already been packaged and routed, charges for which 2Modern will not be reimbursed from shipping companies.
    Return Policy
    2Modern has a generous and convenient return policy, accommodating product returns within 30 days. The only exception is with customized orders, noted on individual product pages. Please see further details on our Return Policy page.
  • Product Warranty
    As provided by WAC Lighting:
    5 Year Warranty.
