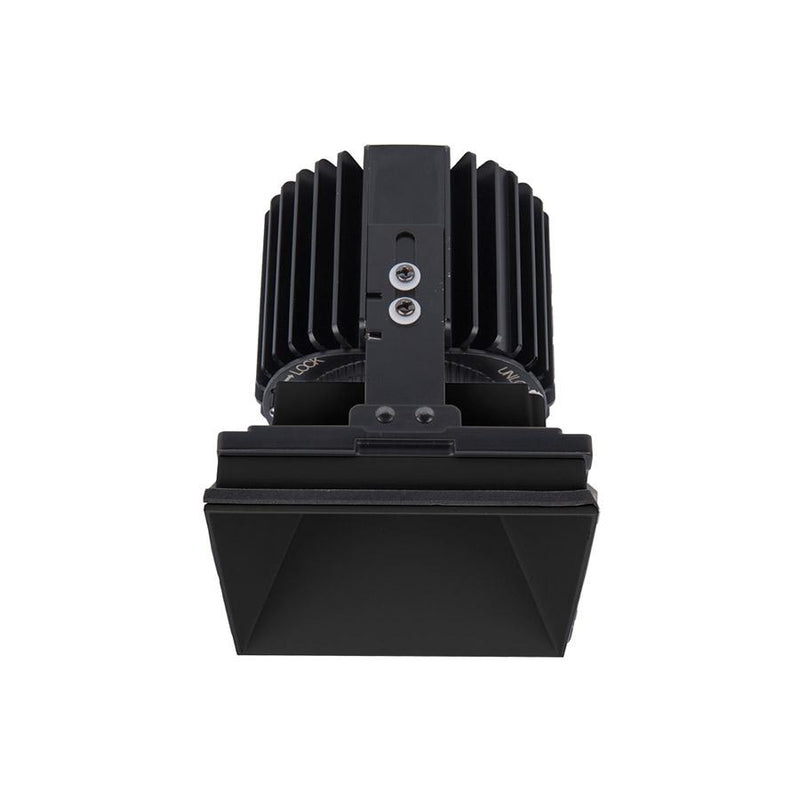

WAC Lighting Volta 4.5IN Square Trimless Downlight Trim

View product information
from $278.95
Please make a selection

Please note, making selections of colors, sizes or styles may change item pricing.

Volta 4.5IN Square Trimless Downlight Trim Finish option Black Volta 4.5IN Square Trimless Downlight Trim Finish option Copper Bronze Volta 4.5IN Square Trimless Downlight Trim Finish option Haze Volta 4.5IN Square Trimless Downlight Trim Finish option White
Volta 4.5IN Square Trimless Downlight Trim Beam Spread option Flood 45 Degrees Volta 4.5IN Square Trimless Downlight Trim Beam Spread option Narrow 25 Degrees Volta 4.5IN Square Trimless Downlight Trim Beam Spread option Spot 15 Degrees Volta 4.5IN Square Trimless Downlight Trim Beam Spread option Wide Flood 60 Degrees
Shipping Cost: Free
Shipping Time: Please make a selection.
Shop with Confidence: 30 day returns
Discover Similar Products:
  • Product Information

    Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


    Features

    • Volta Collection
    • 2 inch lens regress for superior glare control
    • Field selectable light engine height for cut-off angle adjustment of 30-34 degrees and accessory use
    • Accepts one replacement lens and one accessory
    • Accessories not included, but might be used in some applications: Lenses and Louvers
    • Dimmable with Electronic Low Voltage dimmer
    • ETL Listed
    • Wet rated for exterior use
    • Title 24
    • ADA compliant
    • Energy Star Rated
    • Available in four beam spreads
    • Available in a variety of CRI / Color Temperatures
    • Available in Black, White or Copper Bronze finish
    • Quick Ship Quick Ship
    • ADA Compliant ADA Compliant
    • Energy Star Energy Star
    Product Details
    Proposition 65 WARNING For California Residents — Proposition 65 >
    Materials Durable die-cast self flanged aluminum construction, glass.
    Specifications Dimensions:
    • Overall: 5.75 in W x 5.75 in D x 6.4 in H max
    • Cutout: 5.1 in
    • Trim Size: 5.75 in
    • Aperture: 4.5 in
    Lamp Type:
    • LED
    Bulbs:
    Spot 15 Degrees:
    • 1 x 15-25-36W 120-240-277V 639-1312 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 681-1400 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 712-1463 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 717-1476 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 520-1070 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 555-1141 Lumens, 90CRI, 3000K LED lamp (included)
    Narrow 25 Degrees:
    • 1 x 15-25-36W 120-240-277V 1300-2671 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1386-2850 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1448-2979 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1460-3004 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1058-2178 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1129-2323 Lumens, 90CRI, 3000K LED lamp (included)
    Flood 45 Degrees:
    • 1 x 15-25-36W 120-240-277V 1270-2610 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1354-2785 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1415-2911 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1426-2936 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1034-2128 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1103-2270 Lumens, 90CRI, 3000K LED lamp (included)
    Wide Flood 60 Degrees:
    • 1 x 15-25-36W 120-240-277V 1109-2277 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1181-2430 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1235-2540 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1245-2562 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 902-1857 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 963-1981 Lumens, 90CRI, 3000K LED lamp (included)
    Listing:
    • ETL
    • cETL
    • Wet location
    • Title 24 (for 90CRI versions)
    • ADA
    SKU
    Current selection: Please make a selection.
    List of SKUs available: R4SD2L-F827-BK, R4SD2L-F827-CB, R4SD2L-F827-HZ, R4SD2L-F827-WT, R4SD2L-F830-BK, R4SD2L-F830-CB, R4SD2L-F830-HZ, R4SD2L-F830-WT, R4SD2L-F835-BK, R4SD2L-F835-CB, R4SD2L-F835-HZ, R4SD2L-F835-WT, R4SD2L-F840-BK, R4SD2L-F840-CB, R4SD2L-F840-HZ, R4SD2L-F840-WT, R4SD2L-F927-BK, R4SD2L-F927-CB, R4SD2L-F927-HZ, R4SD2L-F927-WT, R4SD2L-F930-BK, R4SD2L-F930-CB, R4SD2L-F930-HZ, R4SD2L-F930-WT, R4SD2L-N827-BK, R4SD2L-N827-CB, R4SD2L-N827-HZ, R4SD2L-N827-WT, R4SD2L-N830-BK, R4SD2L-N830-CB, R4SD2L-N830-HZ, R4SD2L-N830-WT, R4SD2L-N835-BK, R4SD2L-N835-CB, R4SD2L-N835-HZ, R4SD2L-N835-WT, R4SD2L-N840-BK, R4SD2L-N840-CB, R4SD2L-N840-HZ, R4SD2L-N840-WT, R4SD2L-N927-BK, R4SD2L-N927-CB, R4SD2L-N927-HZ, R4SD2L-N927-WT, R4SD2L-N930-BK, R4SD2L-N930-CB, R4SD2L-N930-HZ, R4SD2L-N930-WT, R4SD2L-S827-BK, R4SD2L-S827-CB, R4SD2L-S827-HZ, R4SD2L-S827-WT, R4SD2L-S830-BK, R4SD2L-S830-CB, R4SD2L-S830-HZ, R4SD2L-S830-WT, R4SD2L-S835-BK, R4SD2L-S835-CB, R4SD2L-S835-HZ, R4SD2L-S835-WT, R4SD2L-S840-BK, R4SD2L-S840-CB, R4SD2L-S840-HZ, R4SD2L-S840-WT, R4SD2L-S927-BK, R4SD2L-S927-CB, R4SD2L-S927-HZ, R4SD2L-S927-WT, R4SD2L-S930-BK, R4SD2L-S930-CB, R4SD2L-S930-HZ, R4SD2L-S930-WT, R4SD2L-W827-BK, R4SD2L-W827-CB, R4SD2L-W827-HZ, R4SD2L-W827-WT, R4SD2L-W830-BK, R4SD2L-W830-CB, R4SD2L-W830-HZ, R4SD2L-W830-WT, R4SD2L-W835-BK, R4SD2L-W835-CB, R4SD2L-W835-HZ, R4SD2L-W835-WT, R4SD2L-W840-BK, R4SD2L-W840-CB, R4SD2L-W840-HZ, R4SD2L-W840-WT, R4SD2L-W927-BK, R4SD2L-W927-CB, R4SD2L-W927-HZ, R4SD2L-W927-WT, R4SD2L-W930-BK, R4SD2L-W930-CB, R4SD2L-W930-HZ, R4SD2L-W930-WT
    GTIN
    790576416335, 790576451107, 790576416328, 790576416311, 790576416397, 790576451121, 790576416380, 790576416373, 790576416458, 790576451145, 790576416441, 790576416434, 790576416489, 790576451152, 790576416472, 790576416465, 790576416366, 790576451114, 790576416359, 790576416342, 790576416427, 790576451138, 790576416410, 790576416403, 790576416151, 790576451046, 790576416144, 790576416137, 790576416212, 790576451060, 790576416205, 790576416199, 790576416274, 790576451084, 790576416267, 790576416250, 790576416304, 790576451091, 790576416298, 790576416281, 790576416182, 790576451053, 790576416175, 790576416168, 790576416243, 790576451077, 790576416236, 790576416229, 790576415970, 790576450988, 790576415963, 790576415956, 790576416038, 790576451008, 790576416021, 790576416014, 790576416090, 790576451022, 790576416083, 790576416076, 790576416120, 790576451039, 790576416113, 790576416106, 790576416007, 790576450995, 790576415994, 790576415987, 790576416069, 790576451015, 790576416052, 790576416045, 790576416519, 790576451169, 790576416502, 790576416496, 790576416571, 790576451183, 790576416564, 790576416557, 790576416632, 790576451206, 790576416625, 790576416618, 790576416663, 790576451213, 790576416656, 790576416649, 790576416540, 790576451176, 790576416533, 790576416526, 790576416601, 790576451190, 790576416595, 790576416588
    Catalog ID 15064355
    Reference ID "WAC Lighting Volta 4.5IN Square Trimless Downlight Trim" (Stock ID 77918339081)
