WAC Lighting

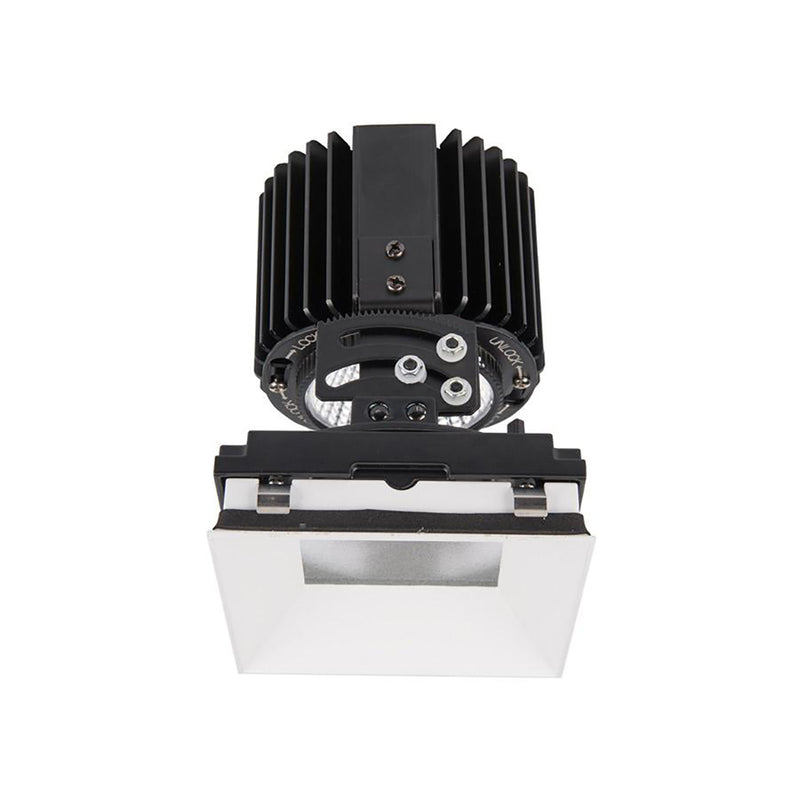

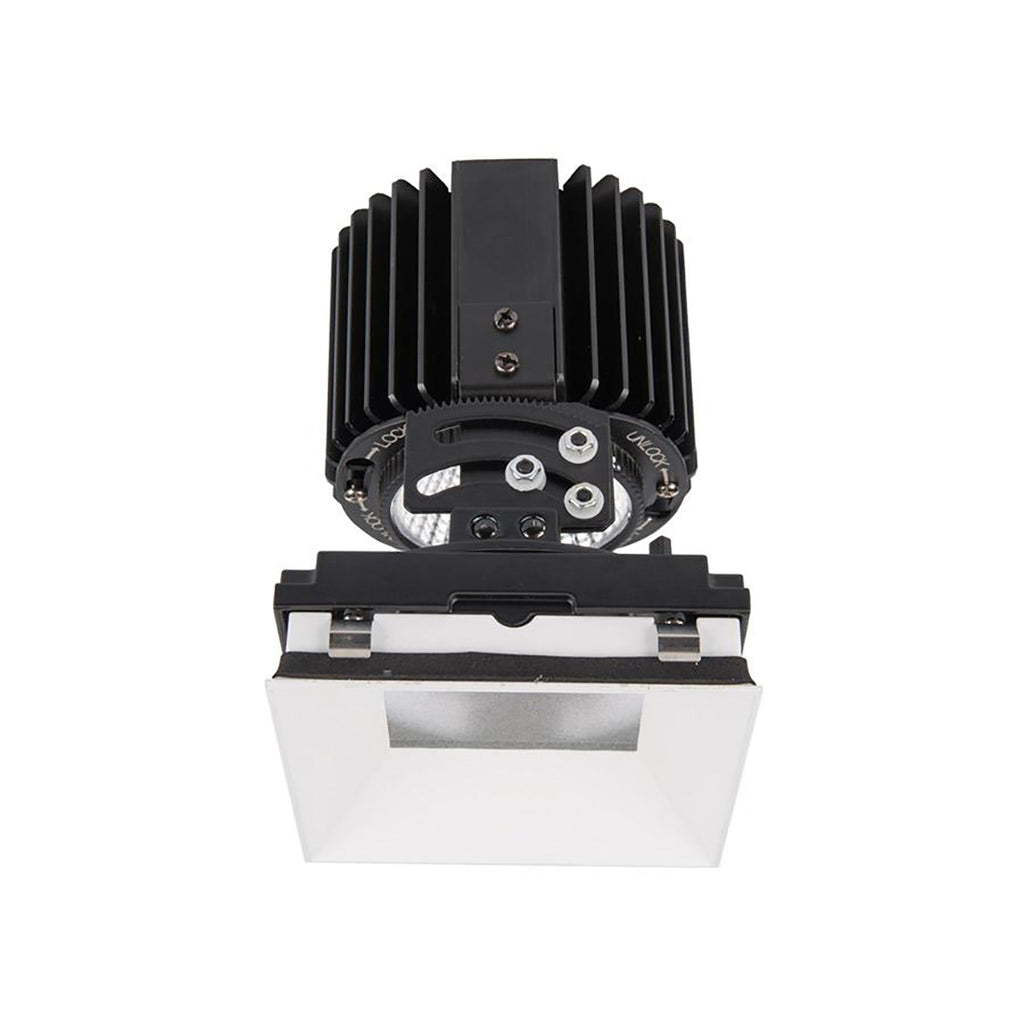

Volta 4.5IN Square Trimless Adjustable Trim
Product Options Available
Finish
Beam Spread
CRI/Color Temperature
Specifications

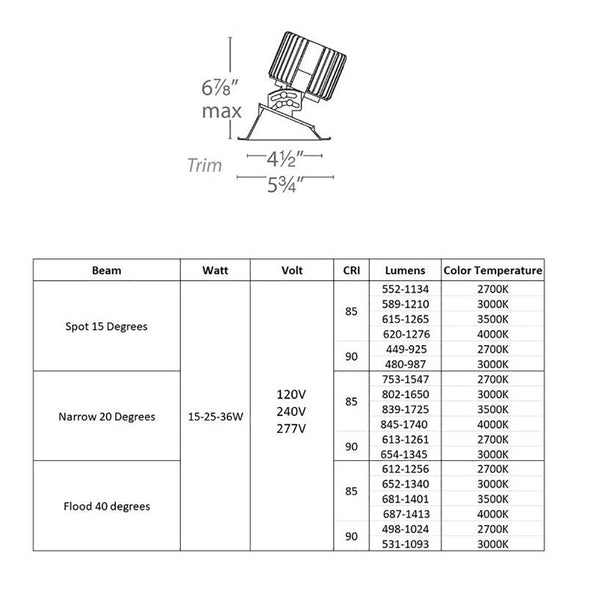

Dimensions:
- Overall: 5.75 in W x 5.75 in D x 6.9 in H max
- Cutout: 5.13 in
- Trim Size: 5.75 in
- Aperture: 4.5 in
Lamp Type:
- LED
Bulbs:
Spot 15 Degrees:
- 1 x 15-25-36W 120-240-277V 552-1134 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 589-1210 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 615-1265 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 620-1276 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 449-925 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 480-987 Lumens, 90CRI, 3000K LED lamp (included)
Narrow 25 Degrees:
- 1 x 15-25-36W 120-240-277V 753-1547 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 802-1650 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 839-1725 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 845-1740 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 613-1261 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 654-1345 Lumens, 90CRI, 3000K LED lamp (included)
Flood 45 Degrees:
- 1 x 15-25-36W 120-240-277V 612-1256 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 652-1340 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 681-1401 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 687-1413 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 498-1024 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 531-1093 Lumens, 90CRI, 3000K LED lamp (included)
Listing:
- ETL
- cETL
- ADA
- Title 24 (for 90CRI versions)
- Wet Location
Materials
Durable die-cast aluminum construction, glass.
Additional Details
