WAC Lighting
Volta 4.5IN Round Downlight Trim
Product Options Available
Finish
Beam Spread
CRI/Color Temperature
Specifications

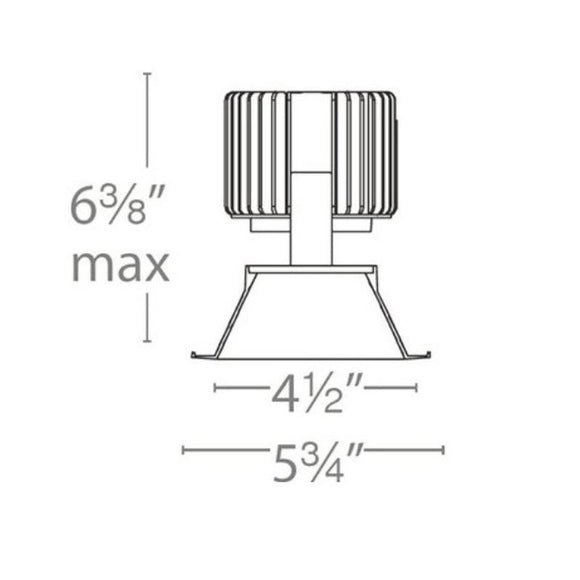

Dimensions:
- Overall: 5.75 in Dia x 6.4 in H max li>Cutout: 5.1 in
- Trim Size: 5.75 in
- Aperture: 4.5 in
Lamp Type:
- LED
Bulbs:
Spot 15 Degrees:
- 1 x 15-25-36W 120-240-277V 634-1303 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 676-1390 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 707-1453 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 712-1466 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 516-1062 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 551-1133 Lumens, 90CRI, 3000K LED lamp (included)
Narrow 25 Degrees:
- 1 x 15-25-36W 120-240-277V 1229-2526 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1310-2695 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1370-2817 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1380-2841 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1000-2059 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1068-2197 Lumens, 90CRI, 3000K LED lamp (included)
Flood 45 Degrees:
- 1 x 15-25-36W 120-240-277V 1191-2446 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1269-2610 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1326-2728 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1337-2751 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 969-1995 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1034-2128 Lumens, 90CRI, 3000K LED lamp (included)
Wide Flood 60 Degrees:
- 1 x 15-25-36W 120-240-277V 1102-2263 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1174-2415 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1227-2524 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1237-2546 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 896-1846 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 957-1969 Lumens, 90CRI, 3000K LED lamp (included)
Listing:
- ETL
- cETL
- ADA
- Title 24 (for 90CRI version)
- Wet Location
Materials
Durable die-cast self flanged aluminum construction, glass.
