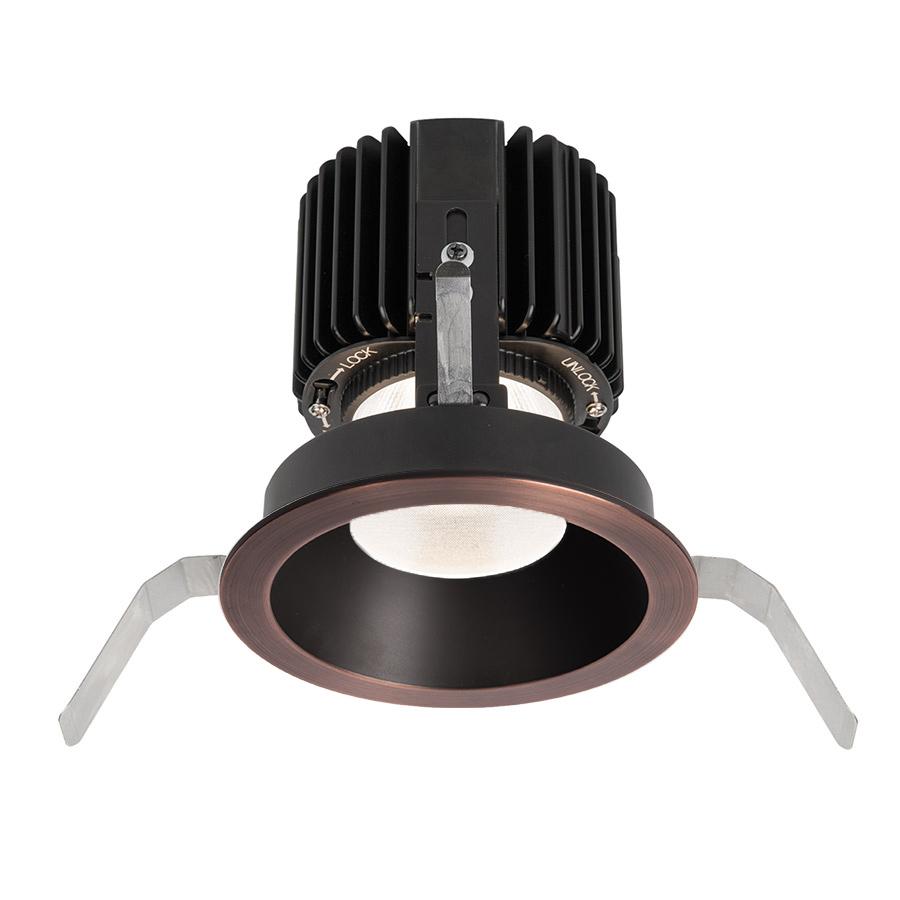

WAC Lighting Volta Shallow 4.5IN Round Downlight Trim

View product information
from $243
$243 Sorry that selection is not available. Please choose another option.

Shipping Cost: Free
Shipping Time: Please make a selection.
  • Product Information

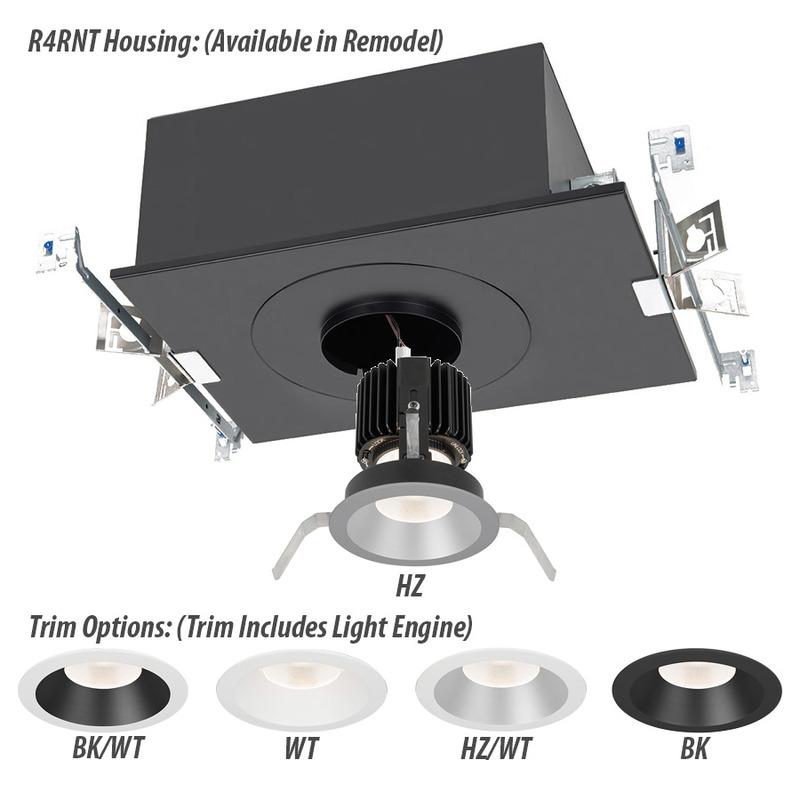

    Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


    Features

    • Volta Collection
    • Optimized cut-off for superior glare control
    • Wide range of accessories, including glare control, optic and color lenses
    • Field interchangeable optics
    • Beam spreads from 15 degree spot to 60 degree wide flood
    • Increased field angle for reduced scalloping
    • Low ceiling and close-to-wall applications
    • Field selectable light engine height for cut-off angle adjustment (32 degree - 40 degree) and accessory use
    • Integral patterned tempered trim lens included standard
    • Compatible with wide range of accessories
    • Mounting: Heavy gauge retention clips support trim firmly, safety cabling standard
    • Dimmable with Electronic Low Voltage or 0-10V dimmer
    • ETL Listed
    • Wet rated for exterior use
    • Title 24
    • ADA Compliant
    • Energy Star rated
    • Available in Flood, Narrow, Spot or Wide Flood beam spread
    • Available in various CRI and color temperatures
    • Available in Copper Bronze finish
    • ADA Compliant ADA Compliant
    • Energy Star Energy Star
    Product Details
    Proposition 65 WARNING For California Residents — Proposition 65 >
    Materials Die Cast Aluminum.

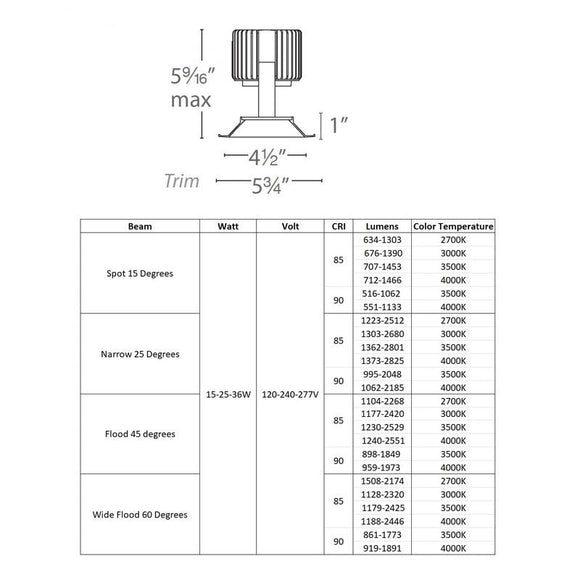

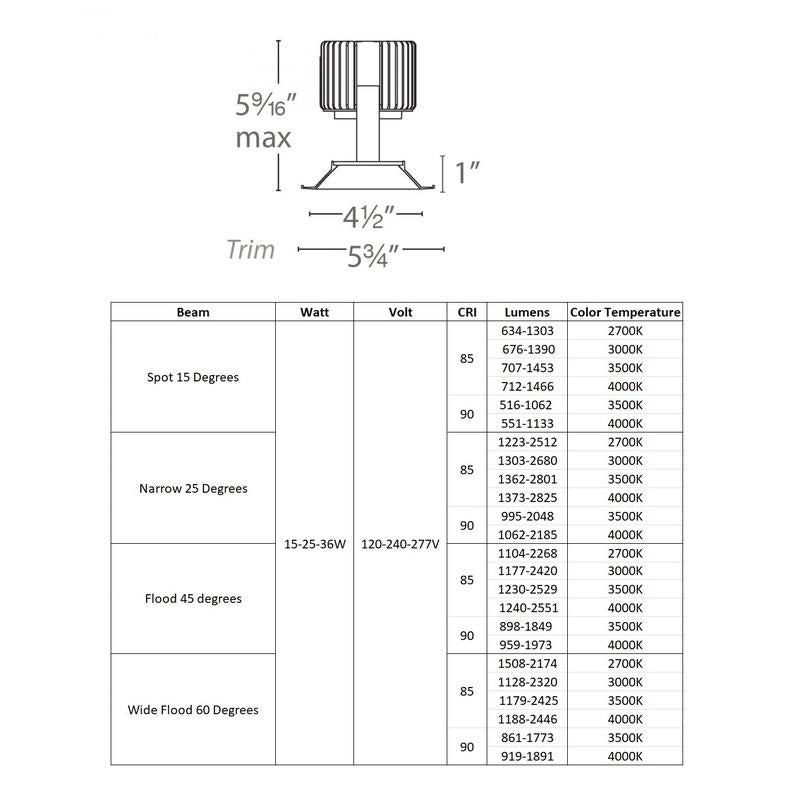

    Specifications Dimensions:
    • Overall: 5.75 in W x 5.6 in H
    Lamp Type:
    • LED
    Bulbs:
    Spot 15 Degrees:
    • 1 x 15-25-36W 120-240-277V 634-1303 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 676-1390 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 707-1453 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 712-1466 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 516-1062 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 551-1133 Lumens, 90CRI, 3000K LED lamp (included)
    Narrow 25 Degrees:
    • 1 x 15-25-36W 120-240-277V 1223-2512 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1303-2680 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1362-2801 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1373-2825 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 995-2048 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1062-2185 Lumens, 90CRI, 3000K LED lamp (included)
    Flood 45 degrees:
    • 1 x 15-25-36W 120-240-277V 1104-2268 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1177-2420 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1230-2529 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1240-2551 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 898-1849 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 959-1973 Lumens, 90CRI, 3000K LED lamp (included)
    Wide Flood 60 Degrees:
    • 1 x 15-25-36W 120-240-277V 1508-2174 Lumens, 85CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1128-2320 Lumens, 85CRI, 3000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1179-2425 Lumens, 85CRI, 3500K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 1188-2446 Lumens, 85CRI, 4000K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 861-1773 Lumens, 90CRI, 2700K LED lamp (included)
    • 1 x 15-25-36W 120-240-277V 919-1891 Lumens, 90CRI, 3000K LED lamp (included)
    Listing:
    • ETL
    • cETL
    • ADA
    • Title 24 (for 90CRI version)
    • Wet Location
    SKU
    R4RD1T-F827-CB, R4RD1T-F830-CB, R4RD1T-F835-CB, R4RD1T-F840-CB, R4RD1T-F927-CB, R4RD1T-F930-CB, R4RD1T-N827-CB, R4RD1T-N830-CB, R4RD1T-N835-CB, R4RD1T-N840-CB, R4RD1T-N927-CB, R4RD1T-N930-CB, R4RD1T-S827-CB, R4RD1T-S830-CB, R4RD1T-S835-CB, R4RD1T-S840-CB, R4RD1T-S927-CB, R4RD1T-S930-CB, R4RD1T-W827-CB, R4RD1T-W830-CB, R4RD1T-W835-CB, R4RD1T-W840-CB, R4RD1T-W927-CB, R4RD1T-W930-CB
    Current selection:
    GTIN
    790576449005, 790576449029, 790576449043, 790576449050, 790576449012, 790576449036, 790576448947, 790576448961, 790576448985, 790576448992, 790576448954, 790576448978, 790576448886, 790576448909, 790576448923, 790576448930, 790576448893, 790576448916, 790576449067, 790576449081, 790576449104, 790576449111, 790576449074, 790576449098
    Current selection:
    Catalog ID 15315413
    Reference ID 92896952329
