WAC Lighting

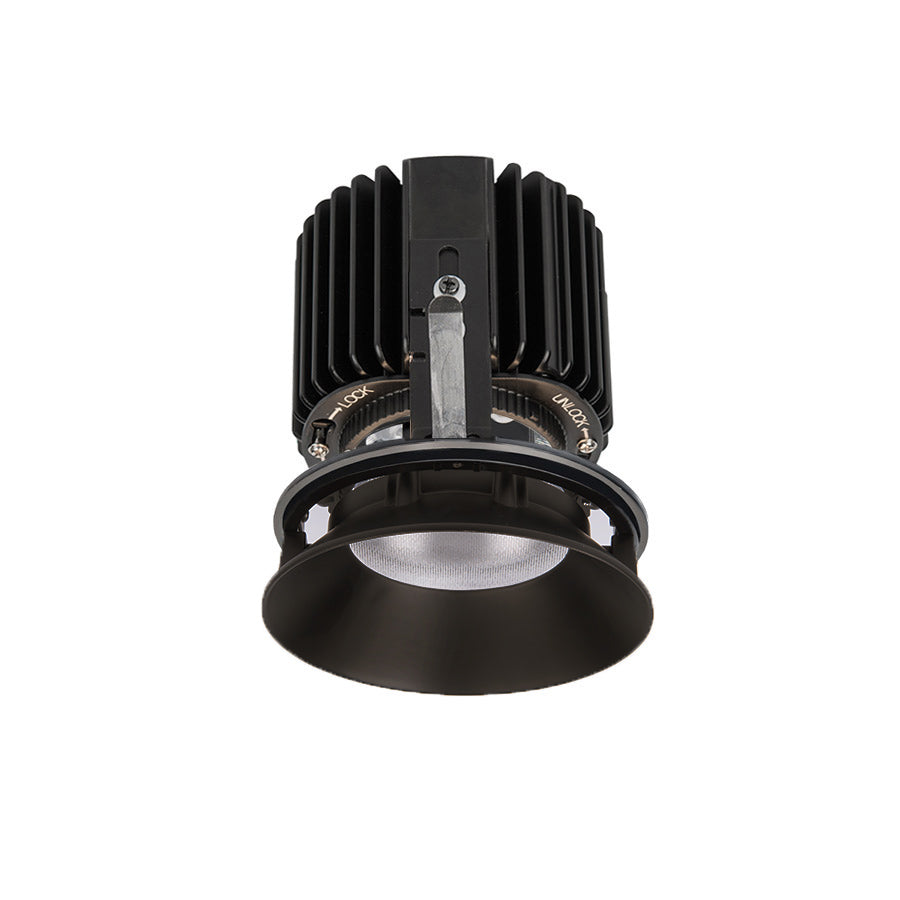

Volta Shallow 4.5IN Round Trimless Downlight Trim
Product Options Available
Finish
Beam Spread
CRI/Color Temperature
Specifications

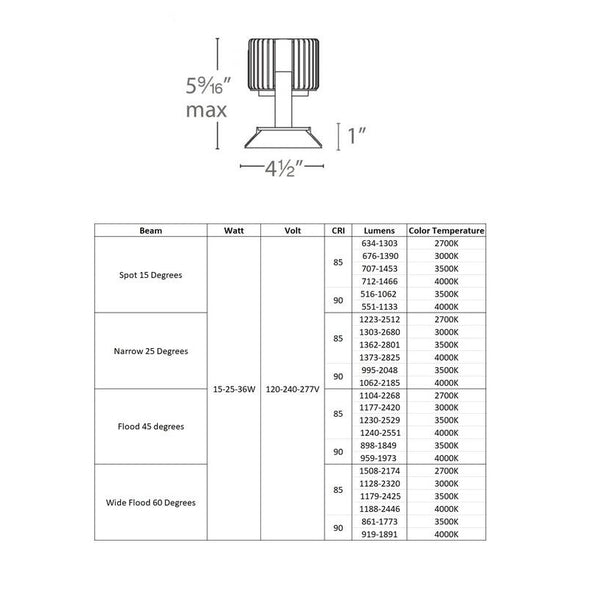

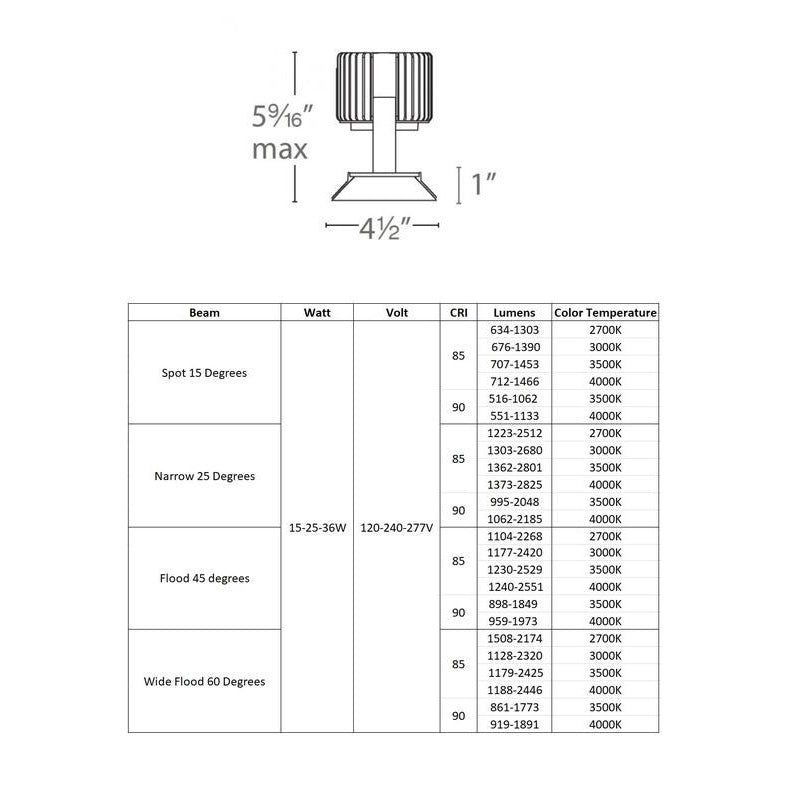

Dimensions:
- Overall: 4.5 in Dia x 5.6 in H
- Cutout: 5.1 in
- Trim Size: 5.75 in
- Aperture: 4.5 in
Lamp Type:
- LED
Bulbs:
Spot 15 Degrees:
- 1 x 15-25-36W 120-240-277V 634-1303 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 676-1390 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 707-1453 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 712-1466 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 516-1062 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 551-1133 Lumens, 90CRI, 3000K LED lamp (included)
Narrow 25 Degrees:
- 1 x 15-25-36W 120-240-277V 1223-2512 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1303-2680 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1362-2801 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1373-2825 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 995-2048 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1062-2185 Lumens, 90CRI, 3000K LED lamp (included)
Flood 45 degrees:
- 1 x 15-25-36W 120-240-277V 1104-2268 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1177-2420 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1230-2529 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1240-2551 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 898-1849 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 959-1973 Lumens, 90CRI, 3000K LED lamp (included)
Wide Flood 60 Degrees:
- 1 x 15-25-36W 120-240-277V 1508-2174 Lumens, 85CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1128-2320 Lumens, 85CRI, 3000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1179-2425 Lumens, 85CRI, 3500K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 1188-2446 Lumens, 85CRI, 4000K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 861-1773 Lumens, 90CRI, 2700K LED lamp (included)
- 1 x 15-25-36W 120-240-277V 919-1891 Lumens, 90CRI, 3000K LED lamp (included)
Listing:
- ETL
- cETL
- ADA
- Title 24 (for 90CRI version)
- Wet Location
Materials
Die cast aluminum, glass.
