Dimensions:
Small:

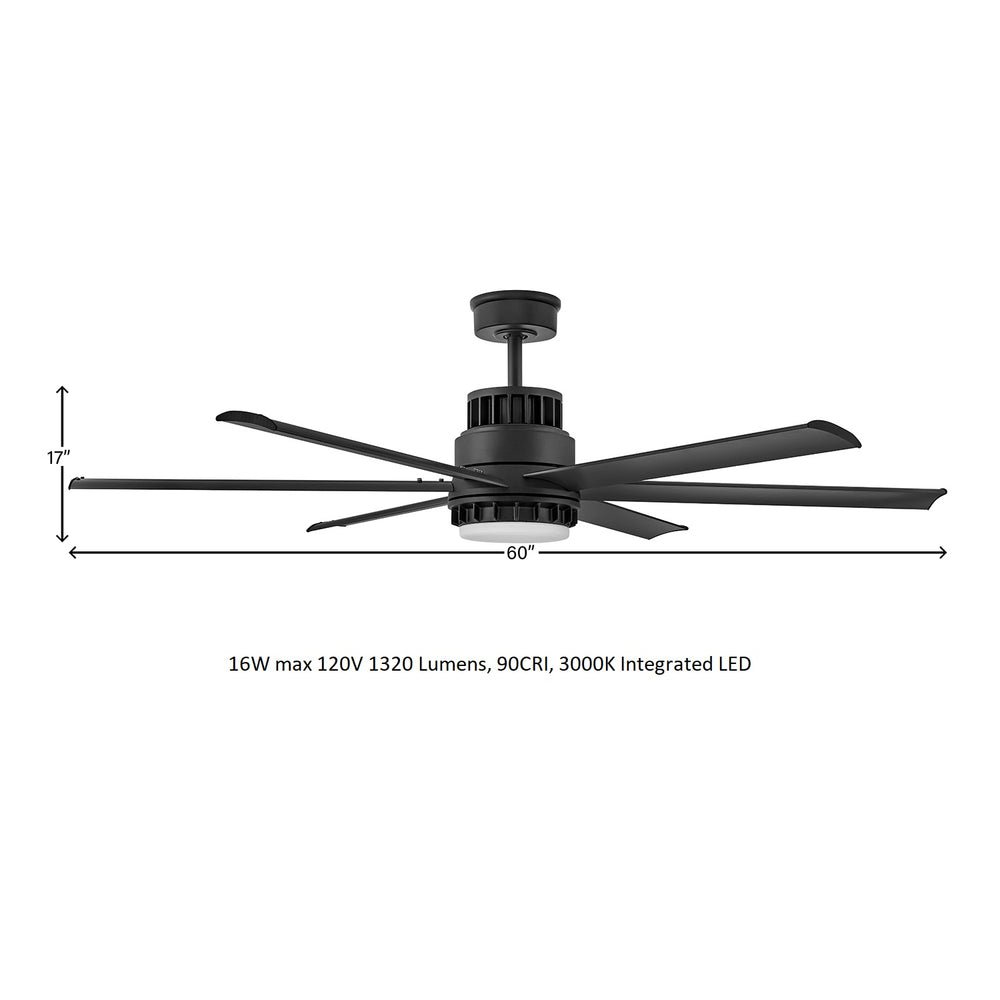

- Overall: 60 in W x 60 in D x 17 in H
Large:

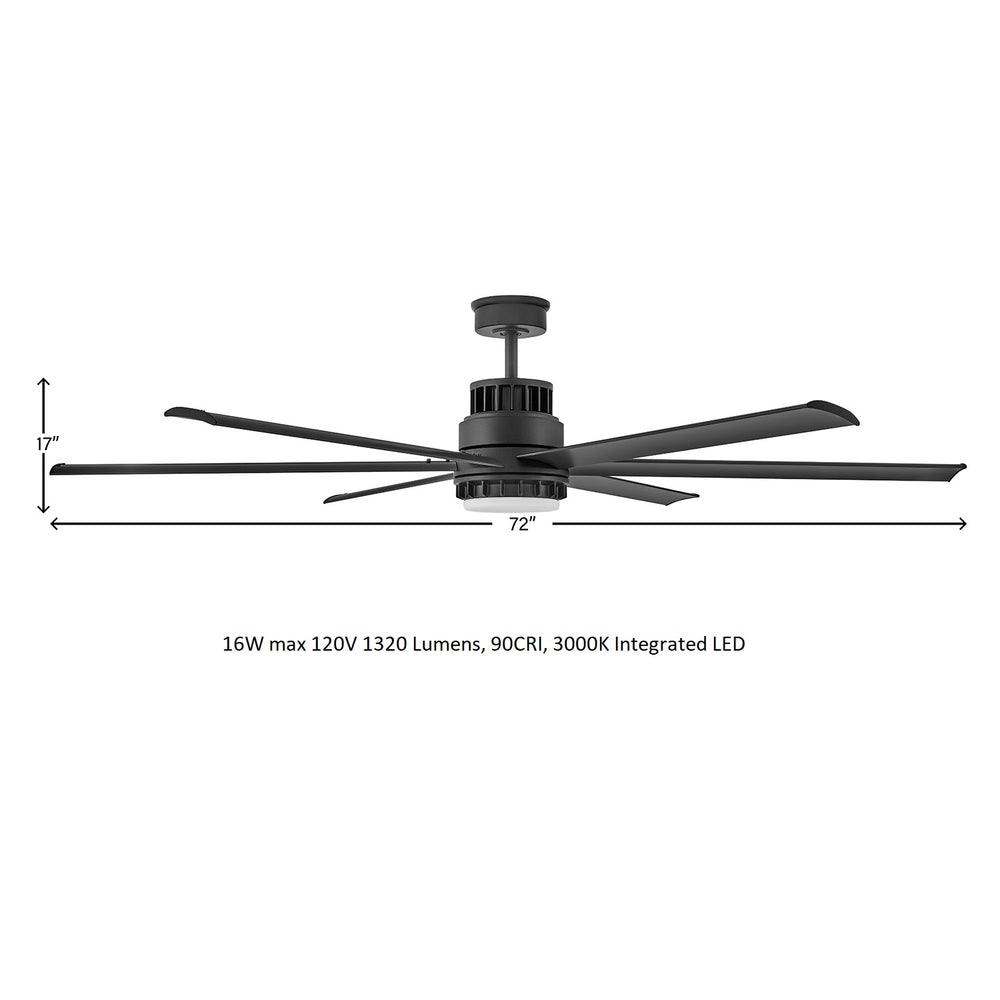

- Overall: 72 in W x 72 in D x 17 in H
Blade Pitch: 12 degrees

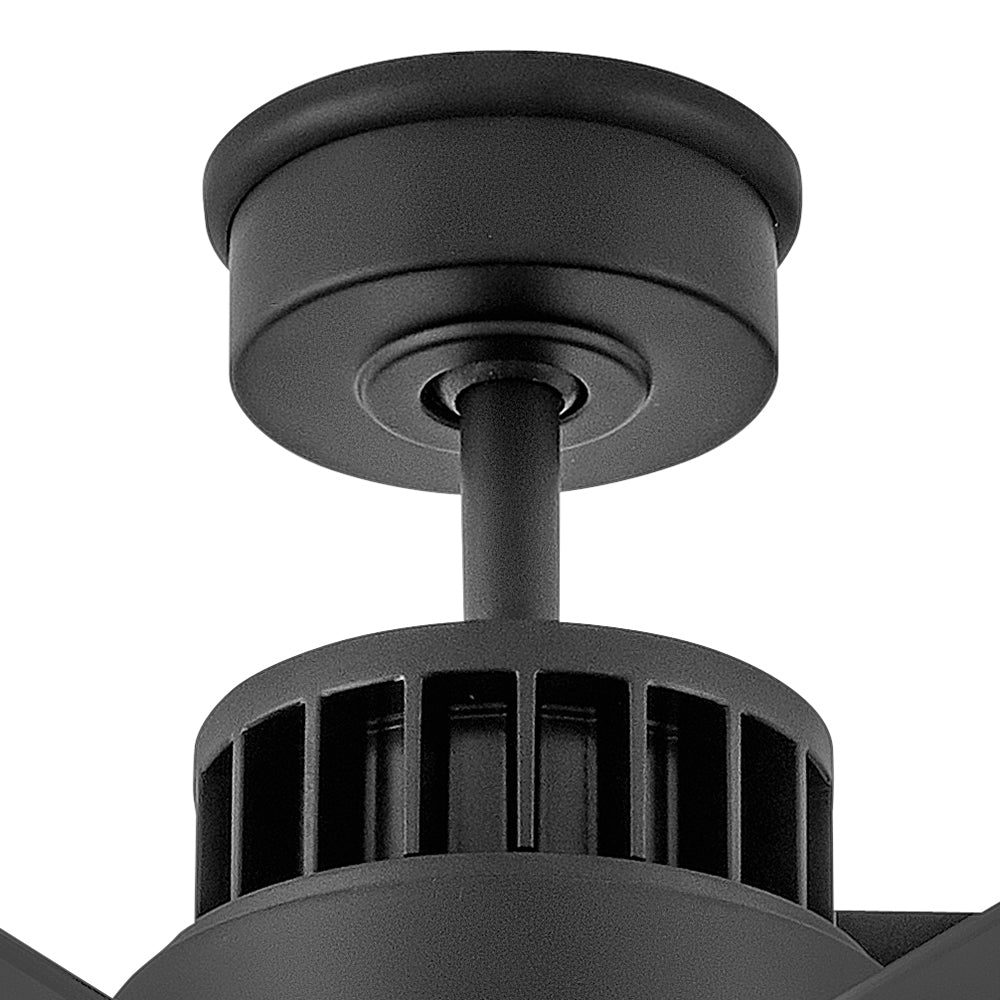

Canopy: 6.5 in Dia x 2.5 in H
Downrod Length: 6 in

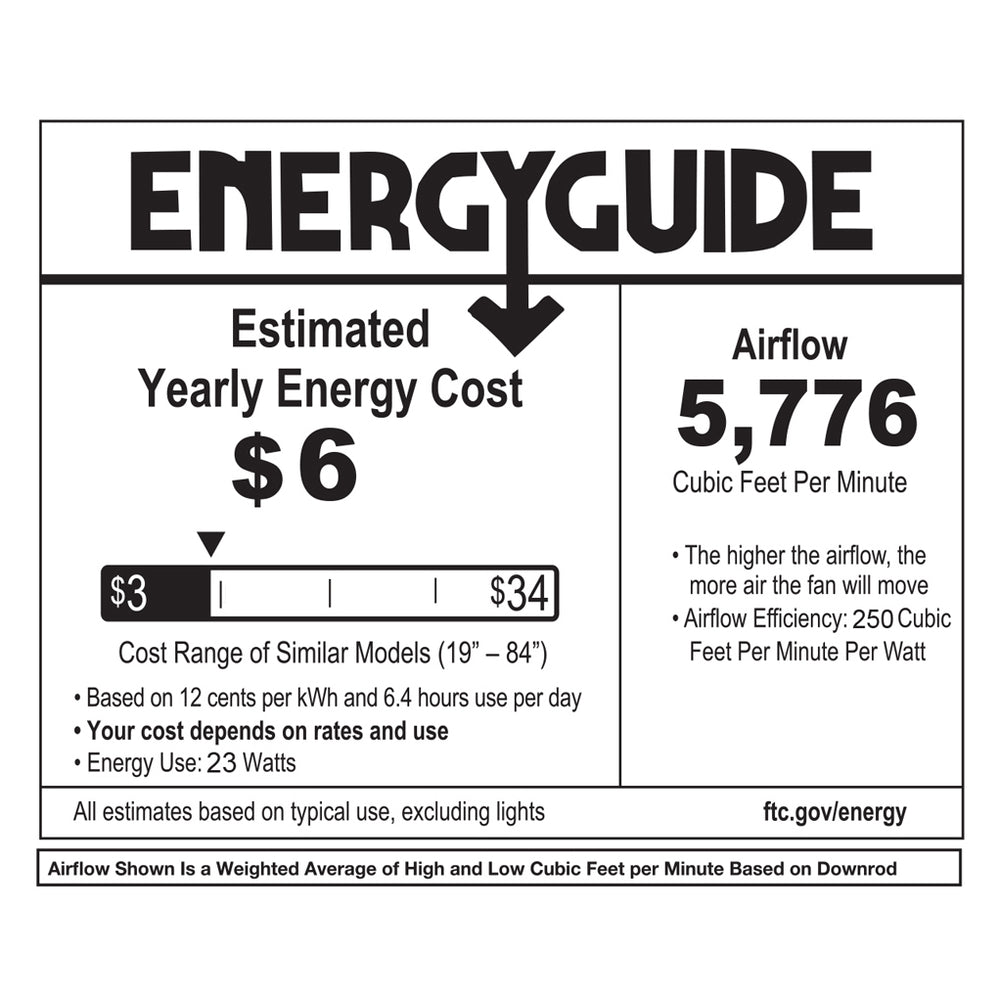

Energy Information:
Small:
- RPM (Low - High): 99 - 147
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 8389 - 5776
- Watts at high speed: 32.9
- Airflow efficiency high (CFM/Watts): 255
Large:
- RPM (Low - High): 82 - 112

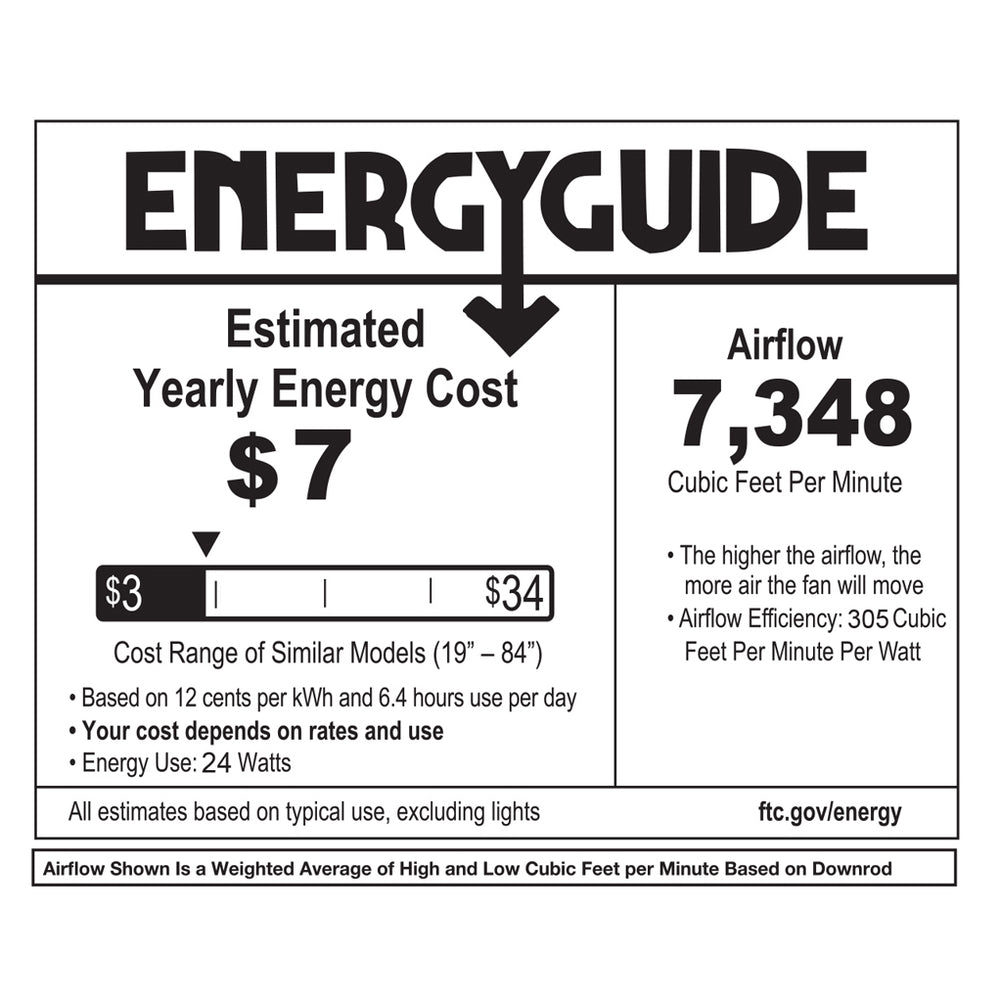

- Airflow measure in cubic feet per minute at High - Low speed (CFM): 9902 - 7348
- Watts at high speed: 33.7
- Airflow efficiency high (CFM/Watts): 294
Lamp Type:
- LED
Bulbs:
- 16W max 120V 1320 Lumens, 90CRI, 3000K Integrated LED lamp (included)
Listing:
- UL
- Wet Rated
Packaged Dimensions: 34 in W x 17 in D x 9 in H
Product Weight:
- Small: 26 lbs.
- Large: 28 lbs.
Packaged Weight:
- Small: 33 lbs.
- Large: 35 lbs.
Product URL
item #:

Prepared for:
Project:
Room:
Placement:
Approval:
- Shipping Cost: Free Shipping
-
Shipping Time: Please make a selection.
- Shop with Confidence: 30 Day Returns
- # SKU: Make a selection
- Quick Ship
- Dimmable
- Smart Enabled
- Wet Rated
- LED Compatible
- Warranty Included
Description

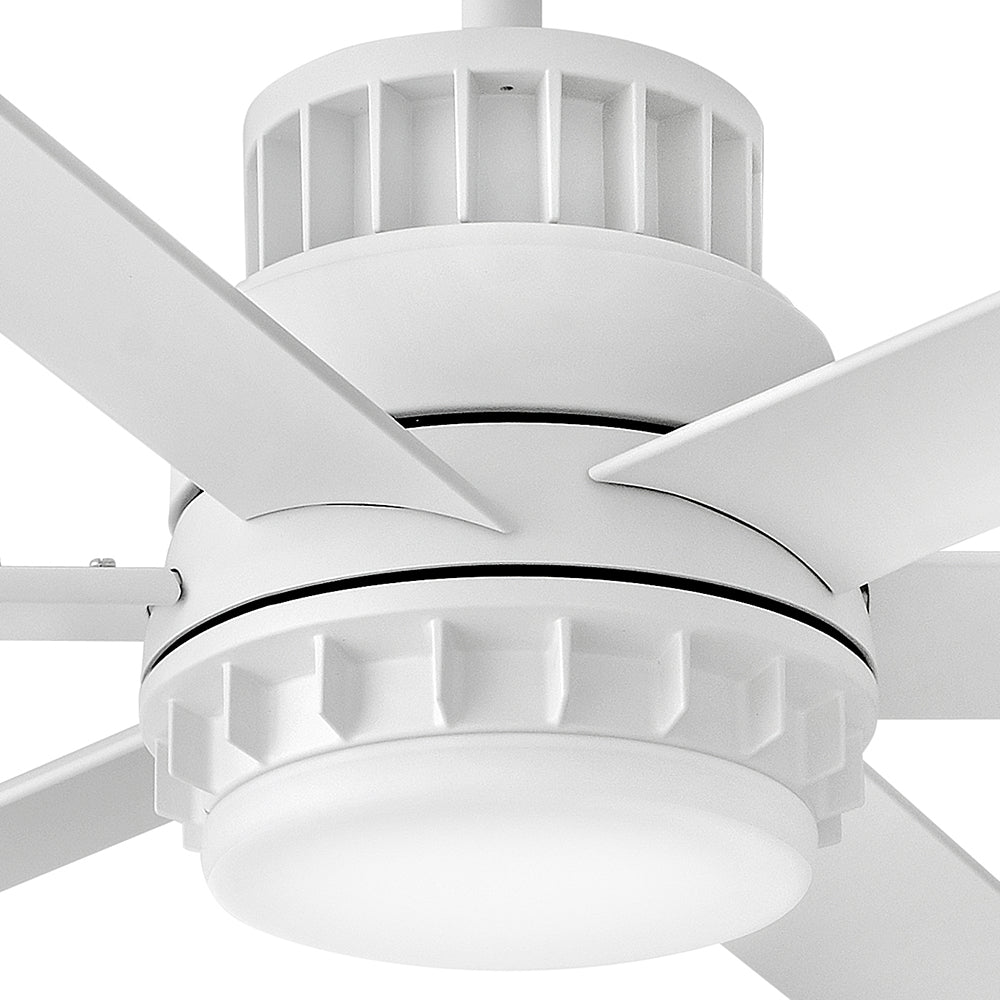

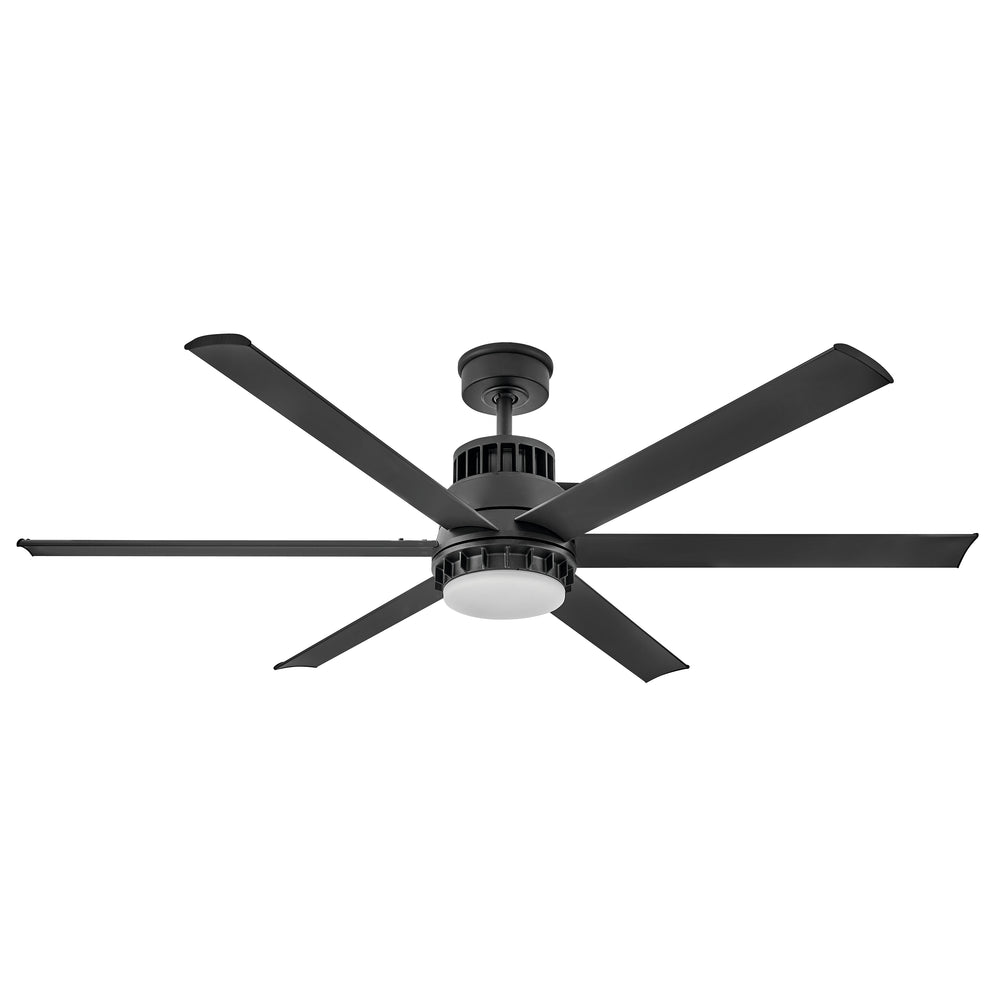

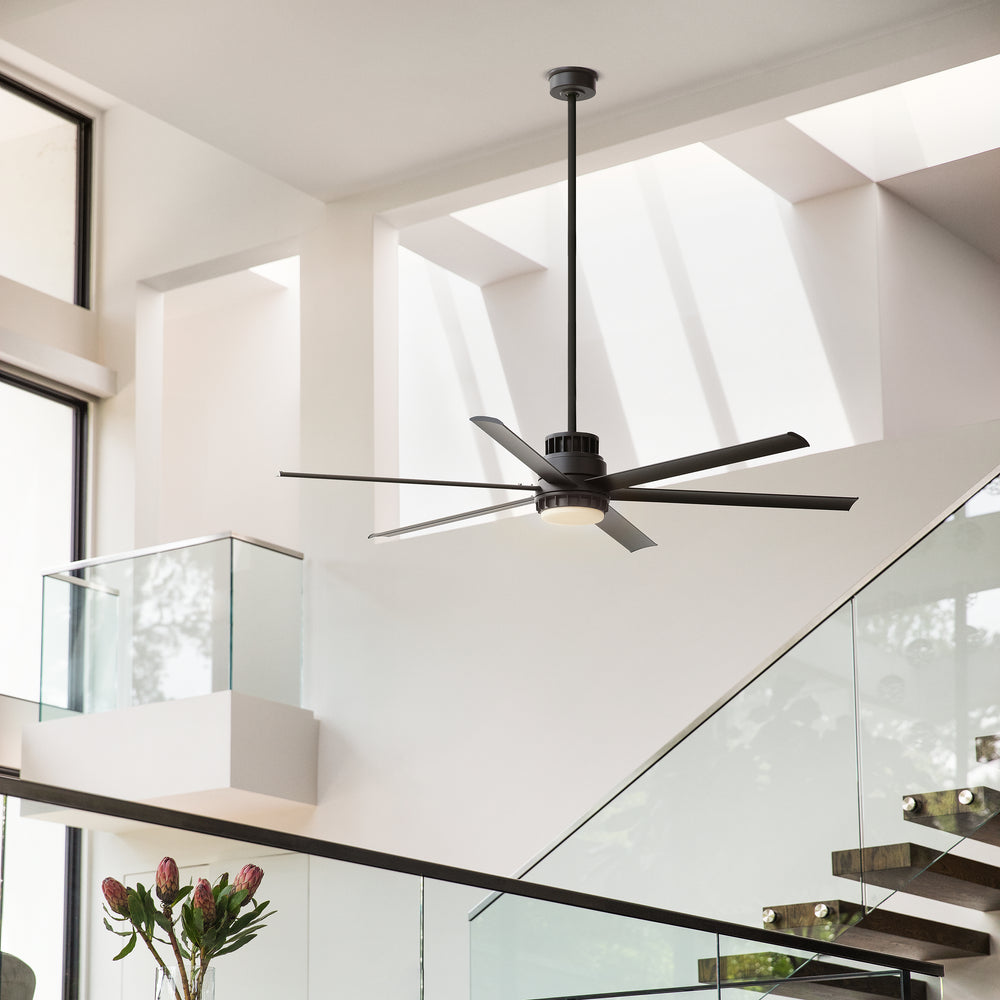

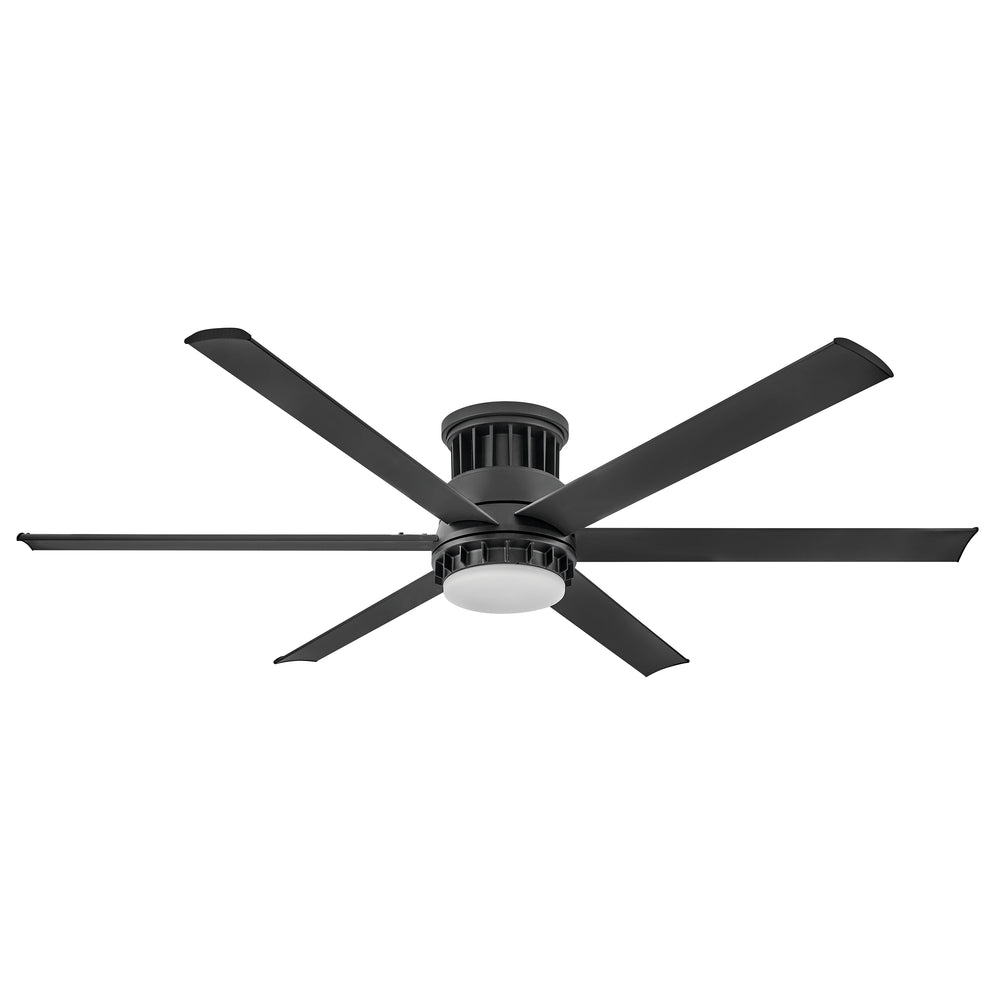

Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
Features
- Install sloped ceiling up to 20 degrees

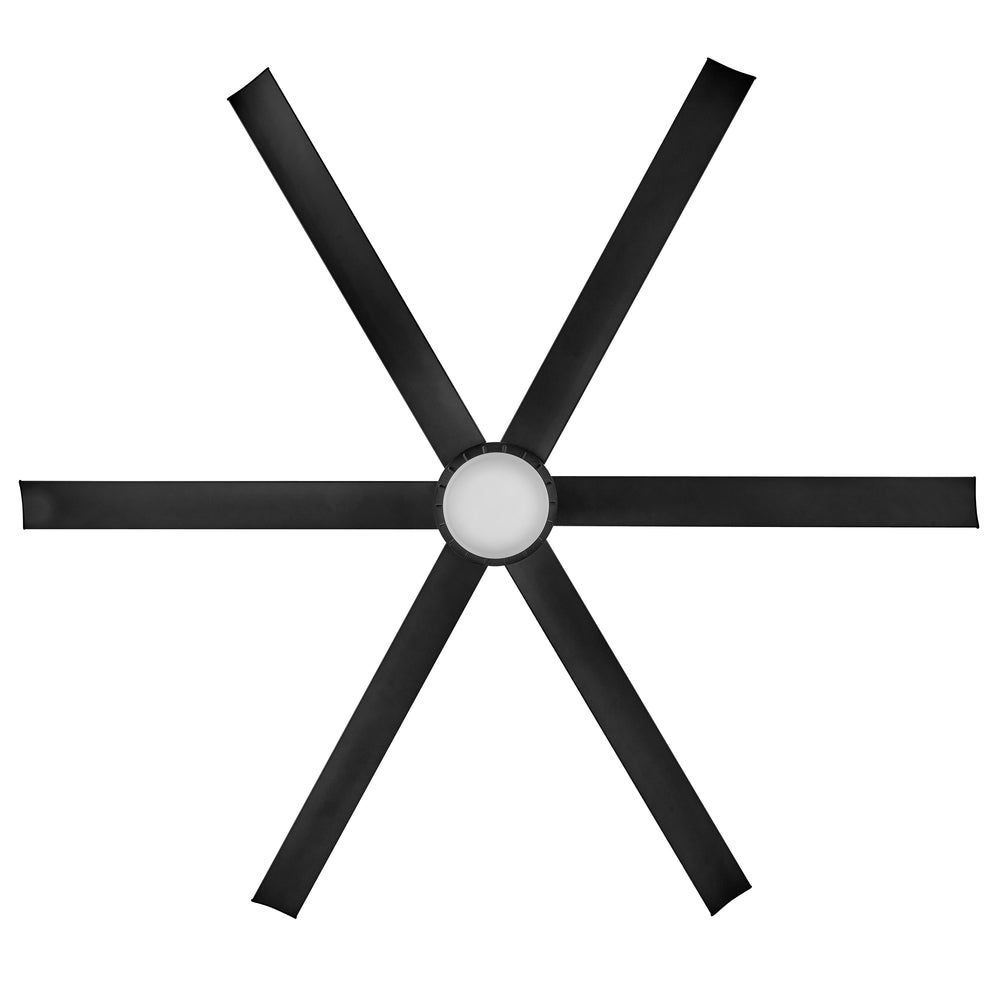

- Six blades
- Light kit cover included
- Wifi Control included
- Fan Control included, 6 Speed HIRO: Reversing 980014FWH-R
- Fans should be installed at a minimum of 7 feet from the floor
- This item includes a 6" down rod; Other various lengths of down rods are available and sold separately to customize the installation height
- Motor Type: DC
- Dimmable
- UL Listed
- Wet rated for outdoor use
- Available in two sizes

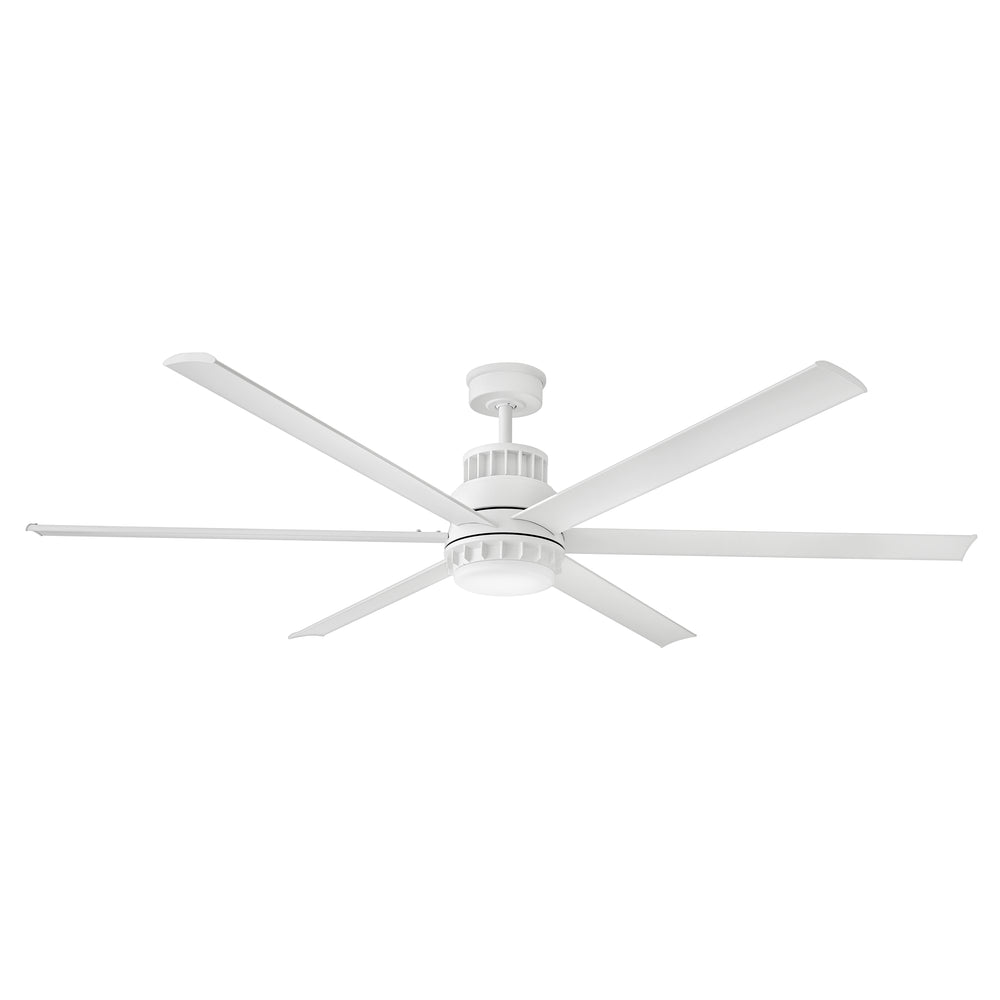

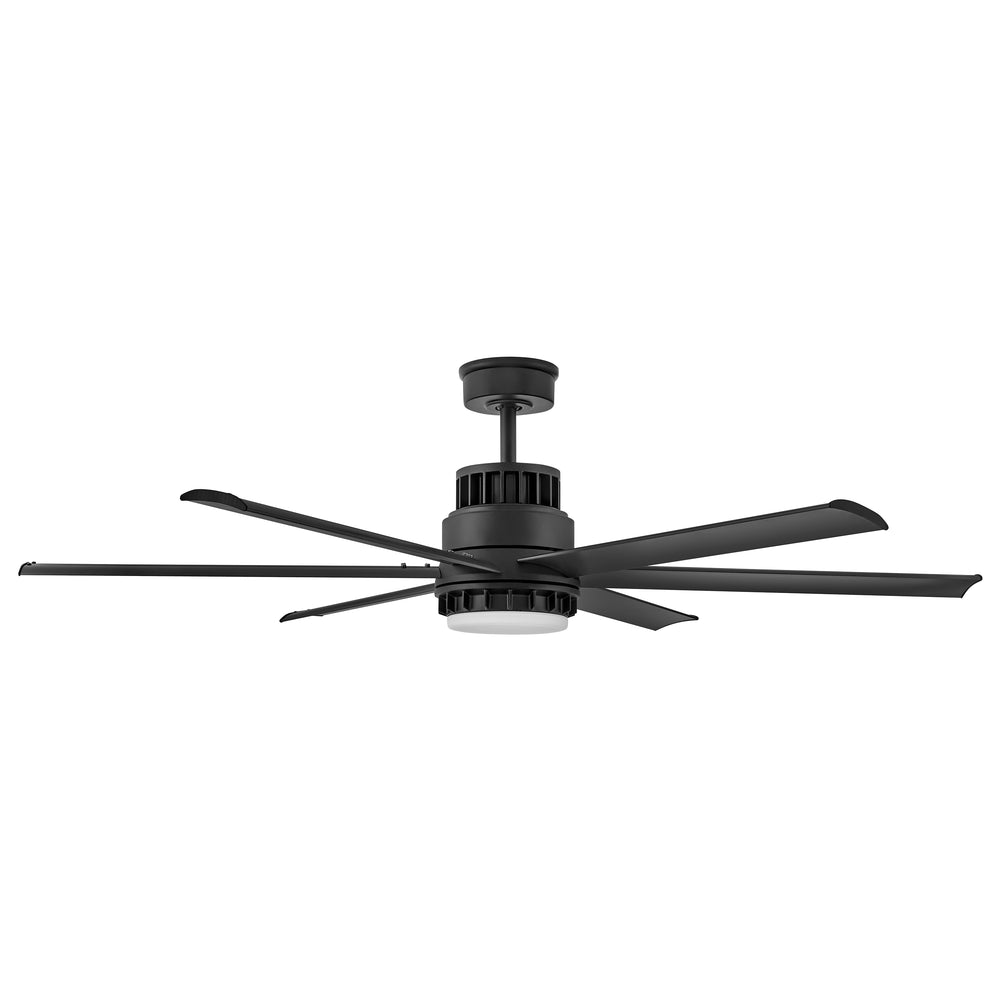

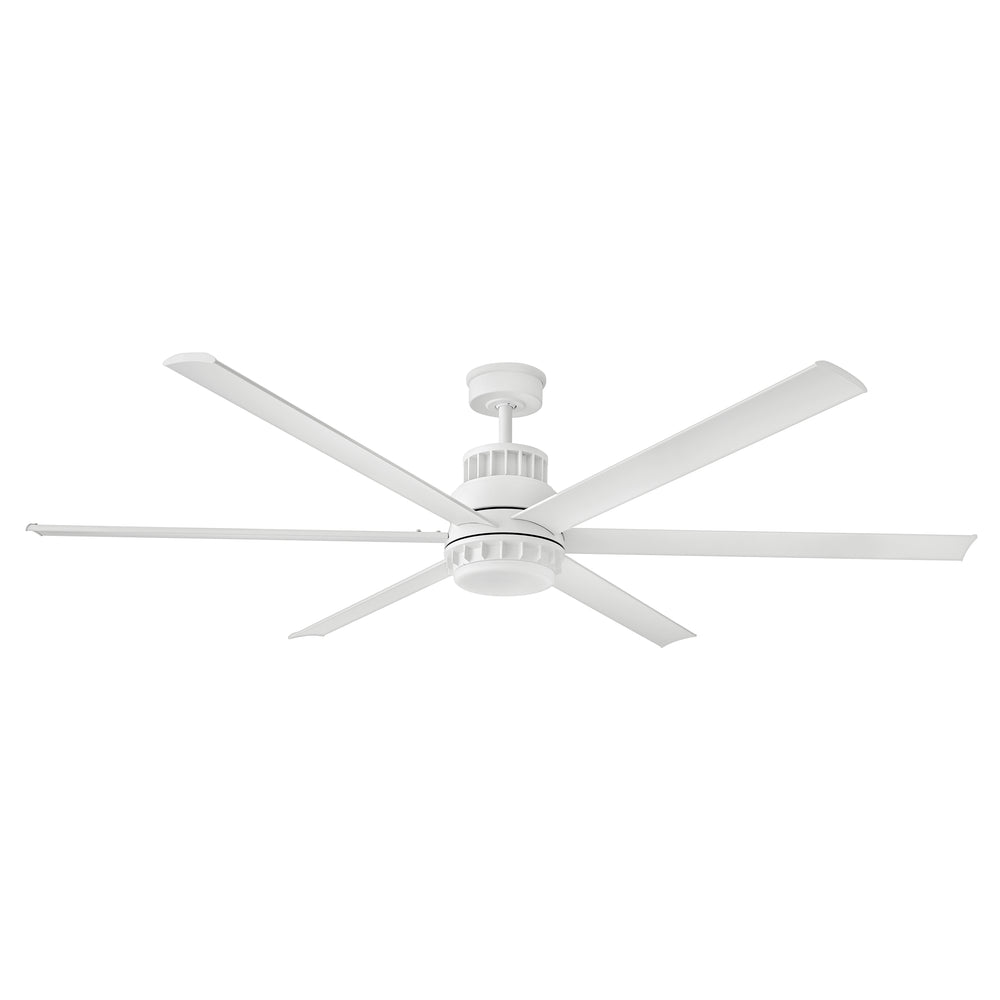

- Available in Matte Black or Matte White finish
Current selected SKU:
Other available SKUs: 905360FMB-LWD, 905360FMW-LWD, 905372FMB-LWD, 905372FMW-LWD
"Hinkley Draftsman Outdoor LED Ceiling Fan" (Stock ID 7448533336109)
As provided by Hinkley:
LED components carry a 5-year limited warranty.
Motor carries a lifetime warranty.
Blades, controls, switches, capacitors and hardware carry a 1 year warranty.
Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.

Dimensions:
Small:
- Overall: 60 in W x 60 in D x 17 in H
Large:
- Overall: 72 in W x 72 in D x 17 in H
Blade Pitch: 12 degrees
Canopy: 6.5 in Dia x 2.5 in H
Downrod Length: 6 in
Energy Information:
Small:
- RPM (Low - High): 99 - 147
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 8389 - 5776
- Watts at high speed: 32.9
- Airflow efficiency high (CFM/Watts): 255
Large:
- RPM (Low - High): 82 - 112
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 9902 - 7348
- Watts at high speed: 33.7
- Airflow efficiency high (CFM/Watts): 294
Lamp Type:
- LED
Bulbs:
- 16W max 120V 1320 Lumens, 90CRI, 3000K Integrated LED lamp (included)
Listing:
- UL
- Wet Rated
Packaged Dimensions: 34 in W x 17 in D x 9 in H
Product Weight:
- Small: 26 lbs.
- Large: 28 lbs.
Packaged Weight:
- Small: 33 lbs.
- Large: 35 lbs.
Steel.
