Matthews Fan Company

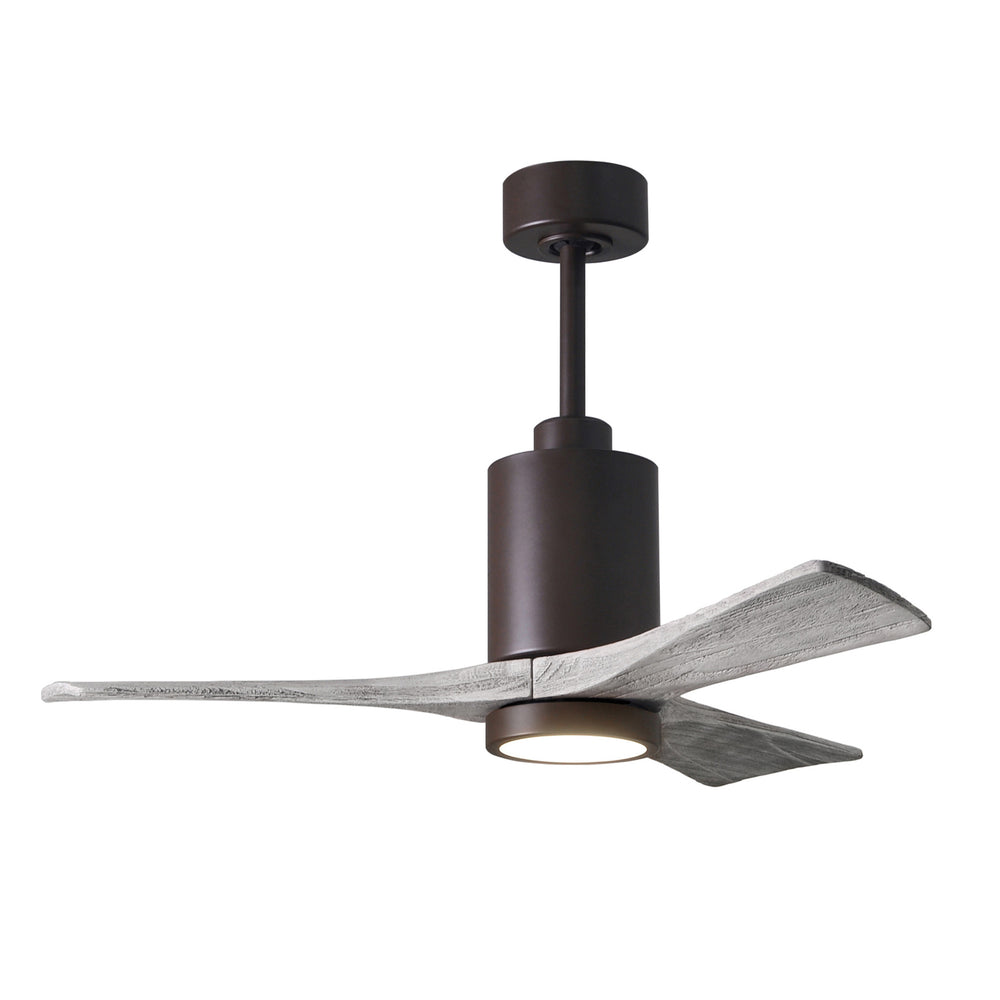

Patricia PA3 Ceiling Fan
Product Options Available
Motor Finish/Blade Finish
Size
Specifications

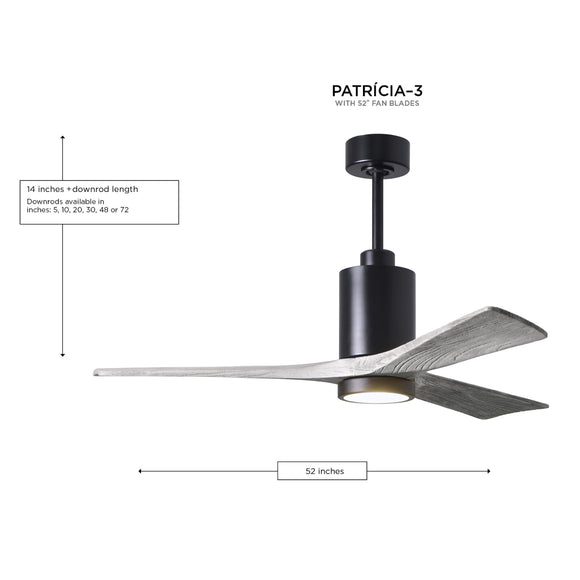

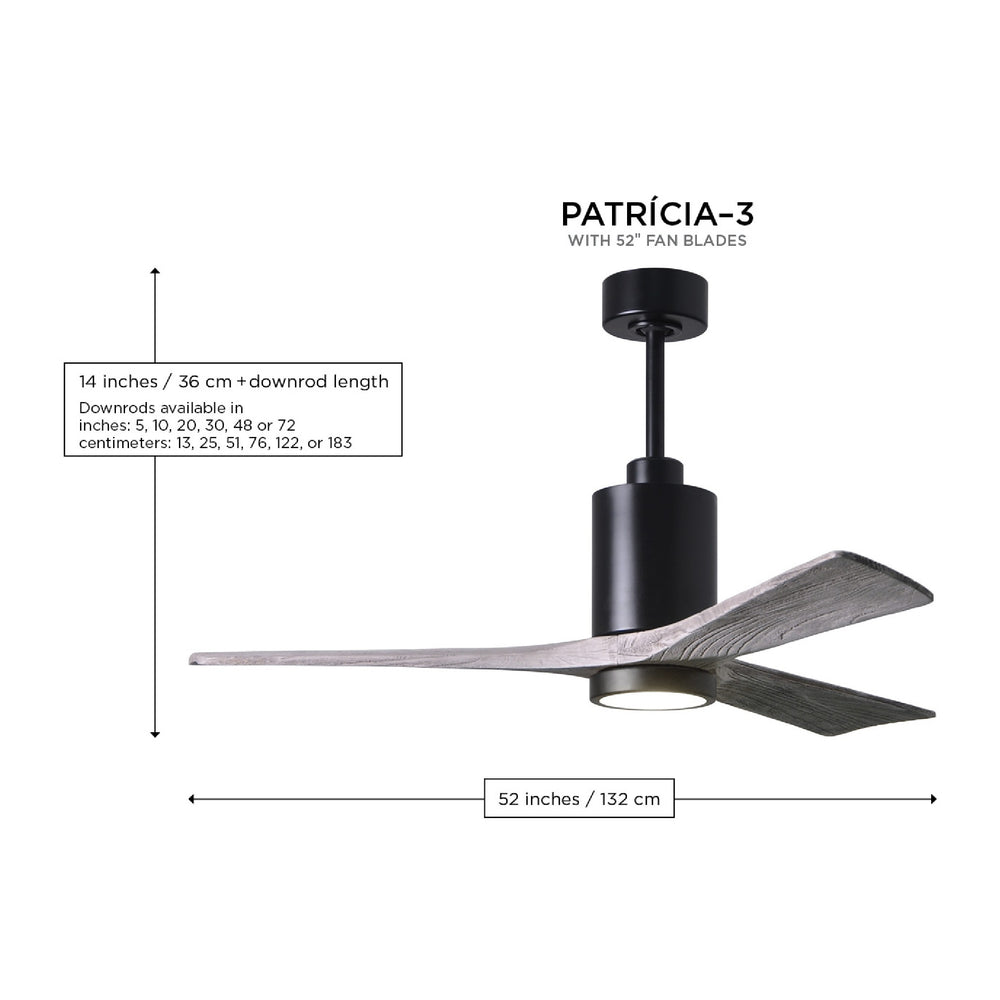

Dimensions:

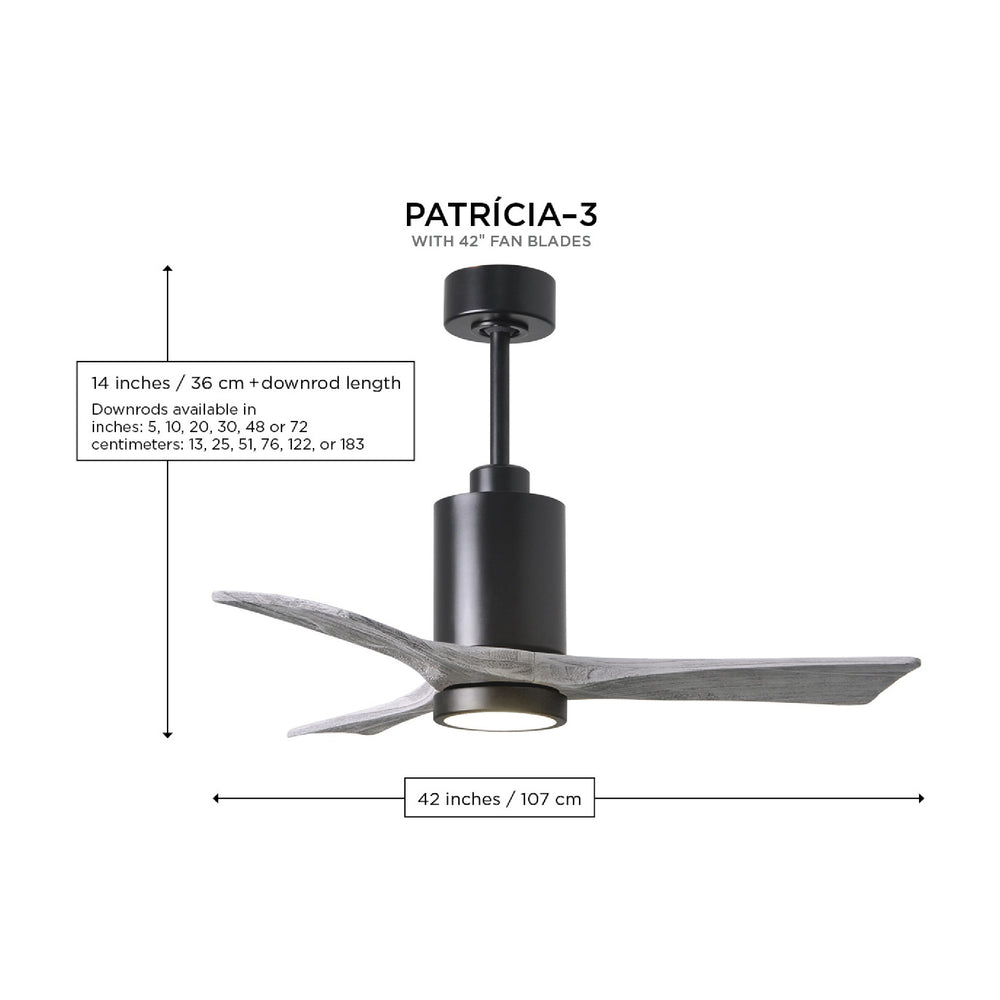

Small:
- Overall: 42 in W x 13 in H
Medium:
- Overall: 52 in W x 13 in H
Large:

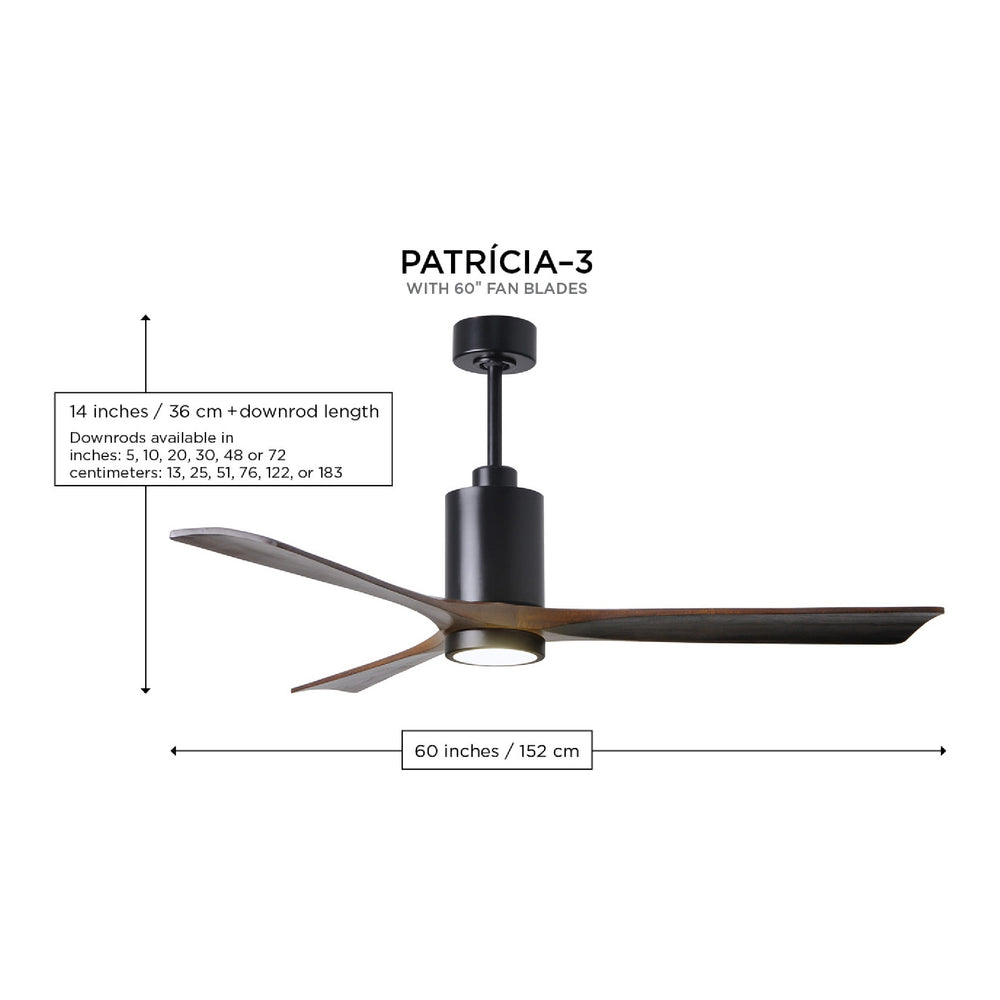

- Overall: 60 in W x 13 in H

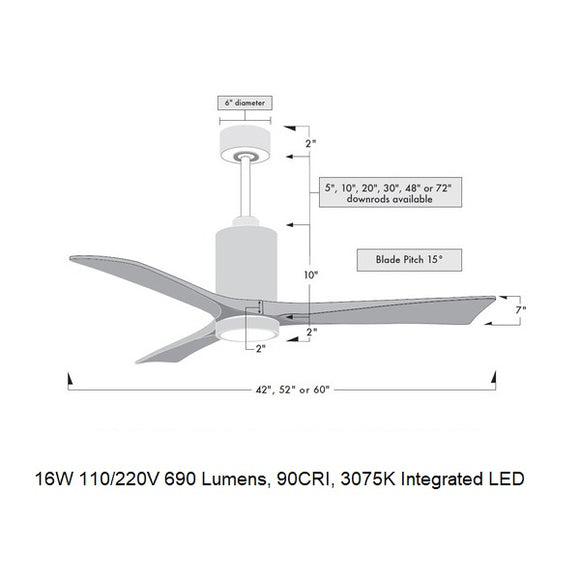

Canopy: 6 in Dia x 2 in H

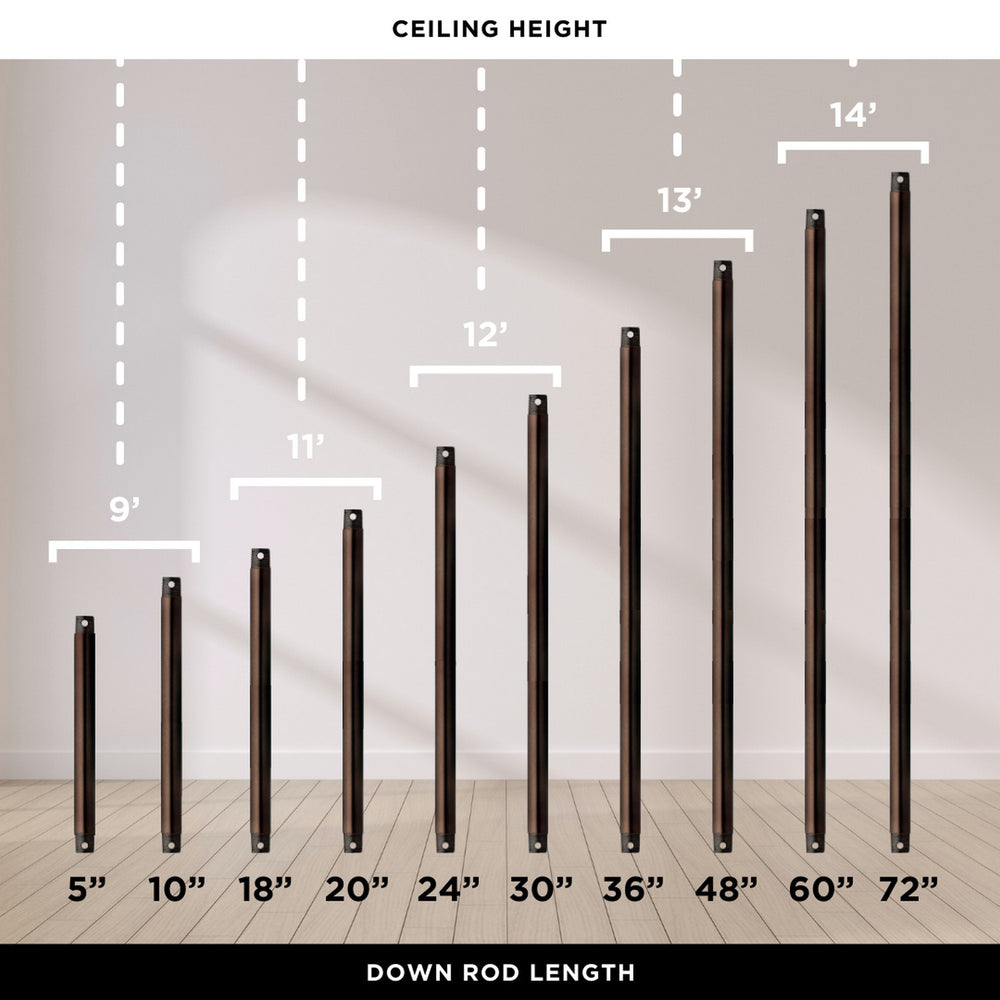

Downrod Length: 1 in Dia x 10 in H (for Standard)
Blade Pitch: 15 degrees
Blade Width: 7 in

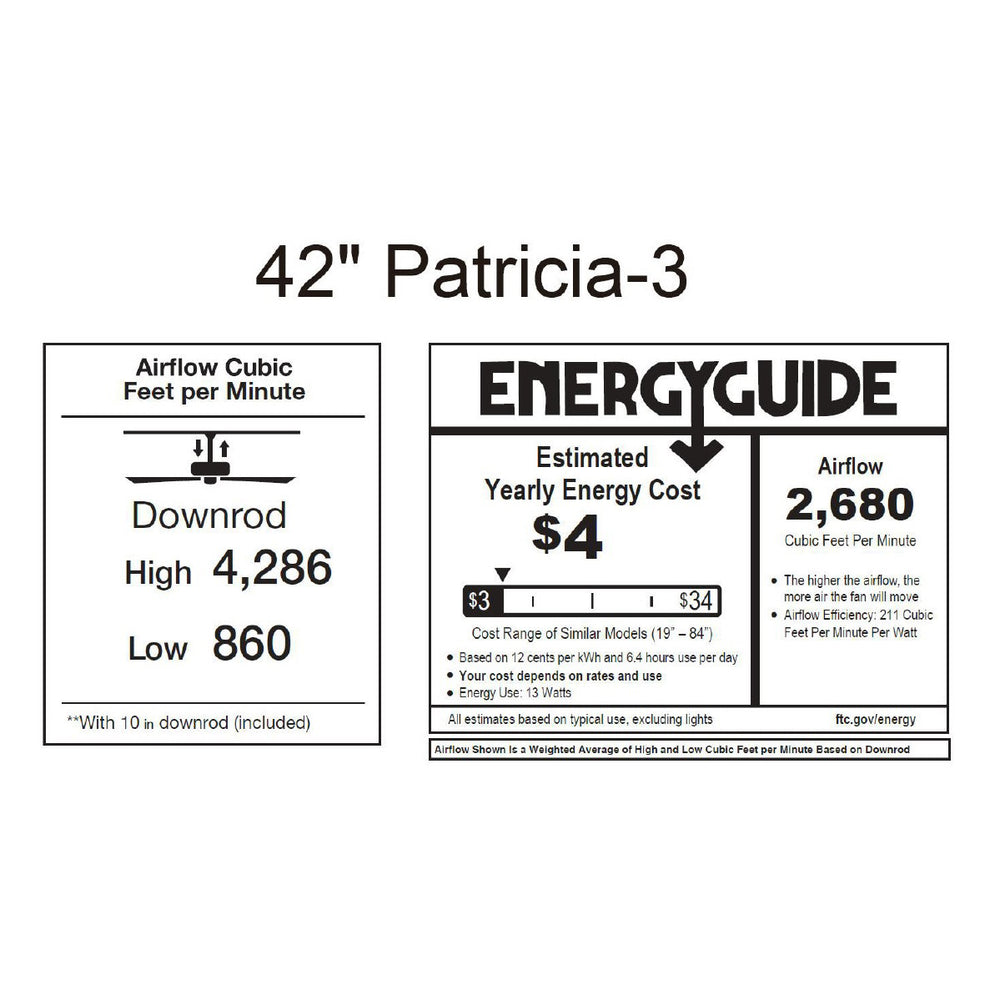

Energy Information:
Small:
- RPM: 232
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 4286 - 860
- Watts average: 13
- Airflow efficiency average (CFM/Watts): 211

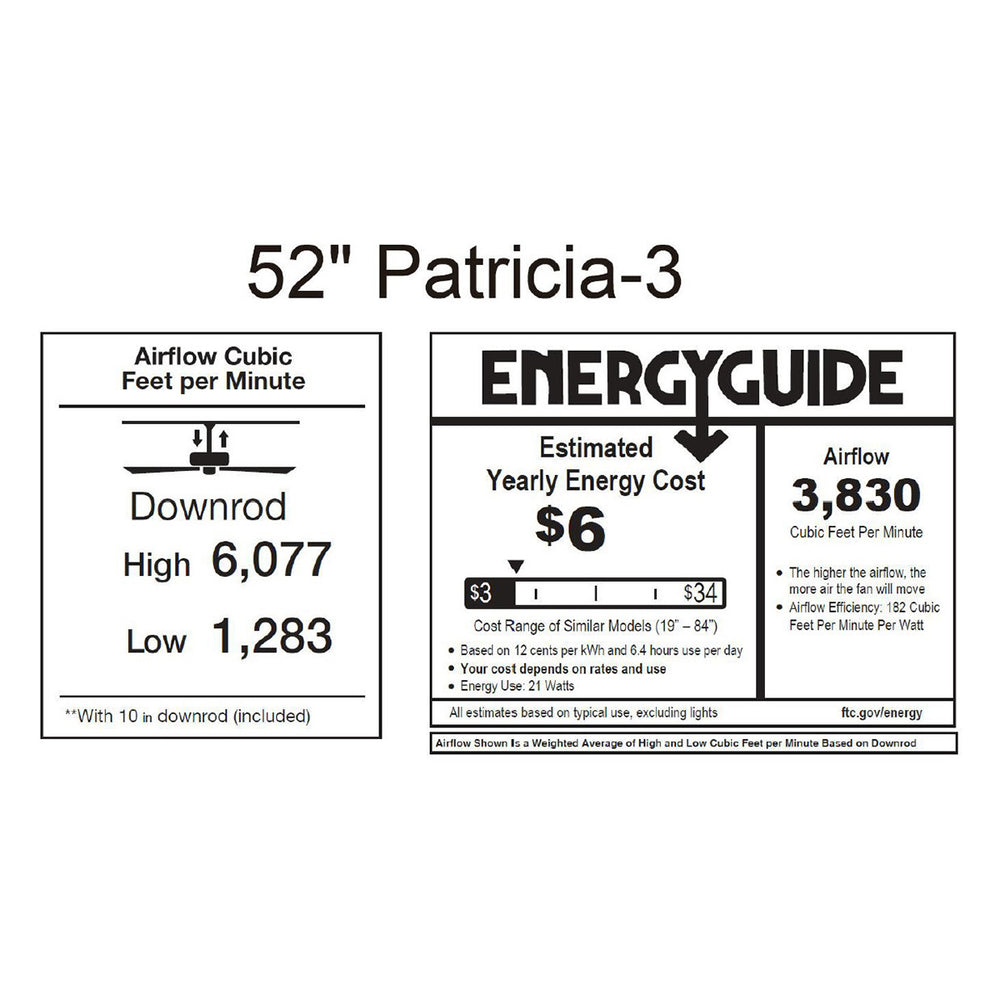

Medium:
- RPM: 219
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 6077 - 1283
- Watts average: 21
- Airflow efficiency average (CFM/Watts): 182

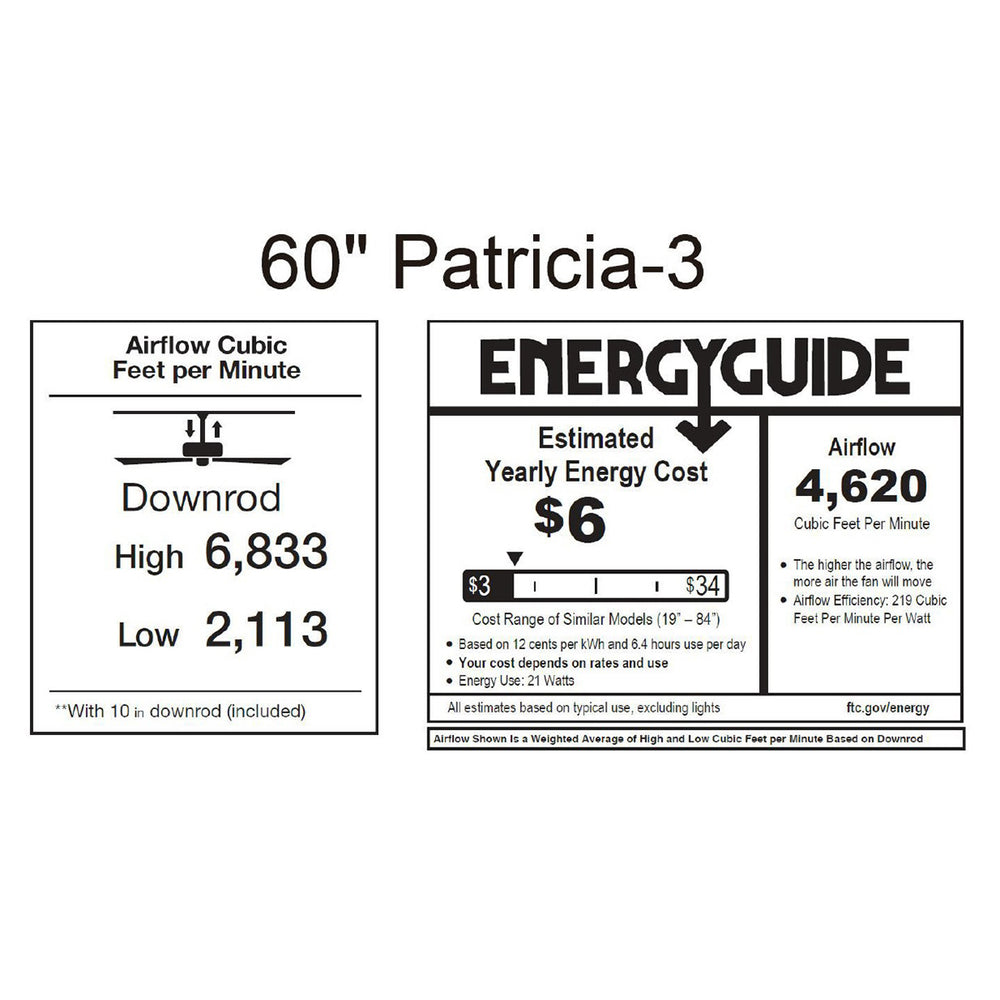

Large:
- RPM: 156
- Airflow measure in cubic feet per minute at High - Low speed (CFM): 6833 - 2113
- Watts average: 21
- Airflow efficiency average (CFM/Watts): 219
Lamp Type:
- LED
Bulbs:
- 1 x 16W 110/220V 690 Lumens, 90CRI, 3075K Integrated LED lamp (included)
Listing:
- ETL
- cETL
- Damp Rated
- Title 20
Packaged Dimensions:
Small:
- Box 1: 28 in W x 12 in D x 17 in H
- Box 2: 23 in W x 12 in D x 8 in H
Medium:
- Box 1: 28 in W x 12 in D x 17 in H
- Box 2: 28 in W x 13 in D x 9 in H
Large:
- Box 1: 28 in W x 12 in D x 17 in H
- Box 2: 32 in W x 11 in D x 10 in H
Product Weight: 19 lbs.
Packaged Weight:
- Box 1: 17 lbs.
- Box 2: 5 lbs.
Materials
Cast aluminum, heavy stamped steel, solid wood, glass.
