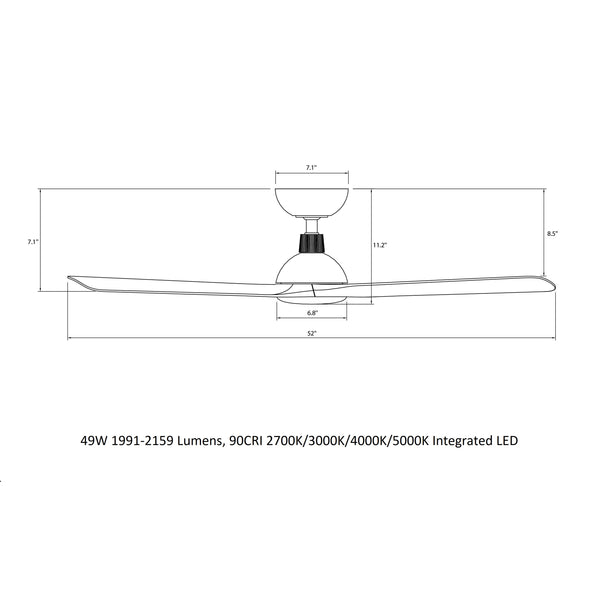

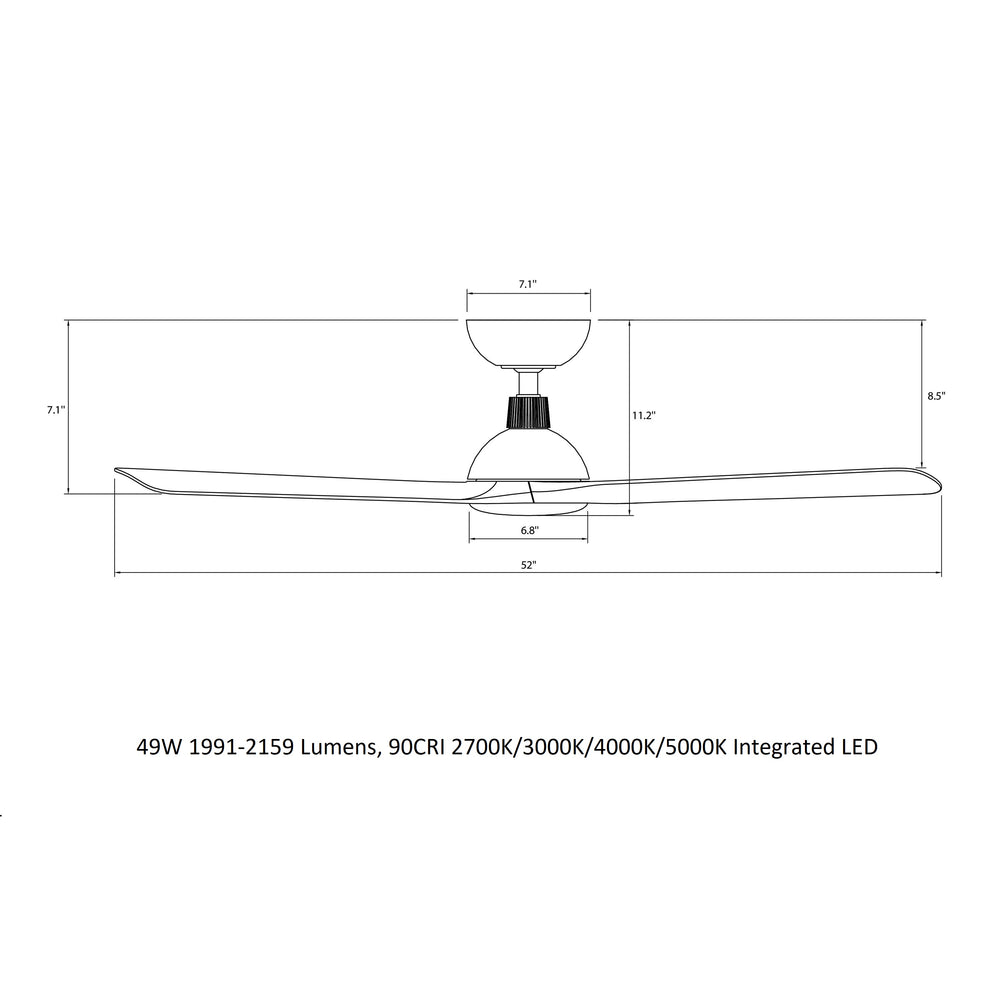

Dimensions:
- Overall: 52 in W x 11.2 in H
- Body: 6.8 in Dia
- Blade Length: 22.6 in
- Blade Pitch: 16 degrees
- Canopy: 7.1 in Dia
- Downrod: 0.75 in Dia x 4.5 in H
- Wire Length: 80 in
- Motor Size: 120 x 20 mm
Energy Information:
- RPM: 167
- Airflow measure in cubic feet per minute at high speed (CFM): 6272
- Watts at high speed: 28
Lamp Type:
- LED
Bulbs:
- 1 x 49W 1991-2159 Lumens, 90CRI 2700K/3000K/4000K/5000K Integrated LED lamp
Listing:
- UL
- cUL
- Title 24
- Damp Rated
- Title 20
Packaged Dimensions: 26 in W x 10 in D x 11 in H
Product Weight: 11.9 lbs.
Packaged Weight: 14.5 lbs.
ABS.
Product URL
item #:
Prepared for:
Project:
Room:
Placement:
Approval:
- Quick Ship
- Dimmable
- Light Assembly
- LED Compatible
- UL Listed
- Warranty Included
Description

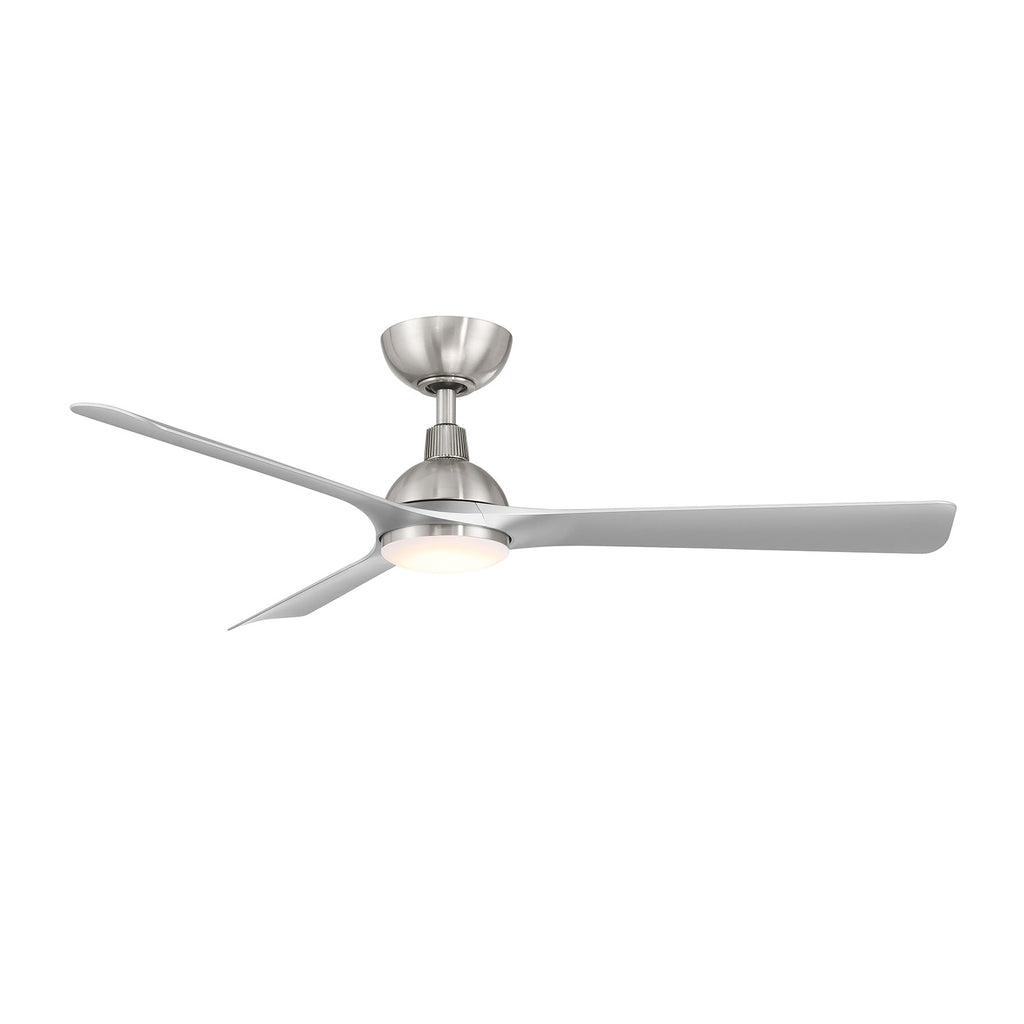

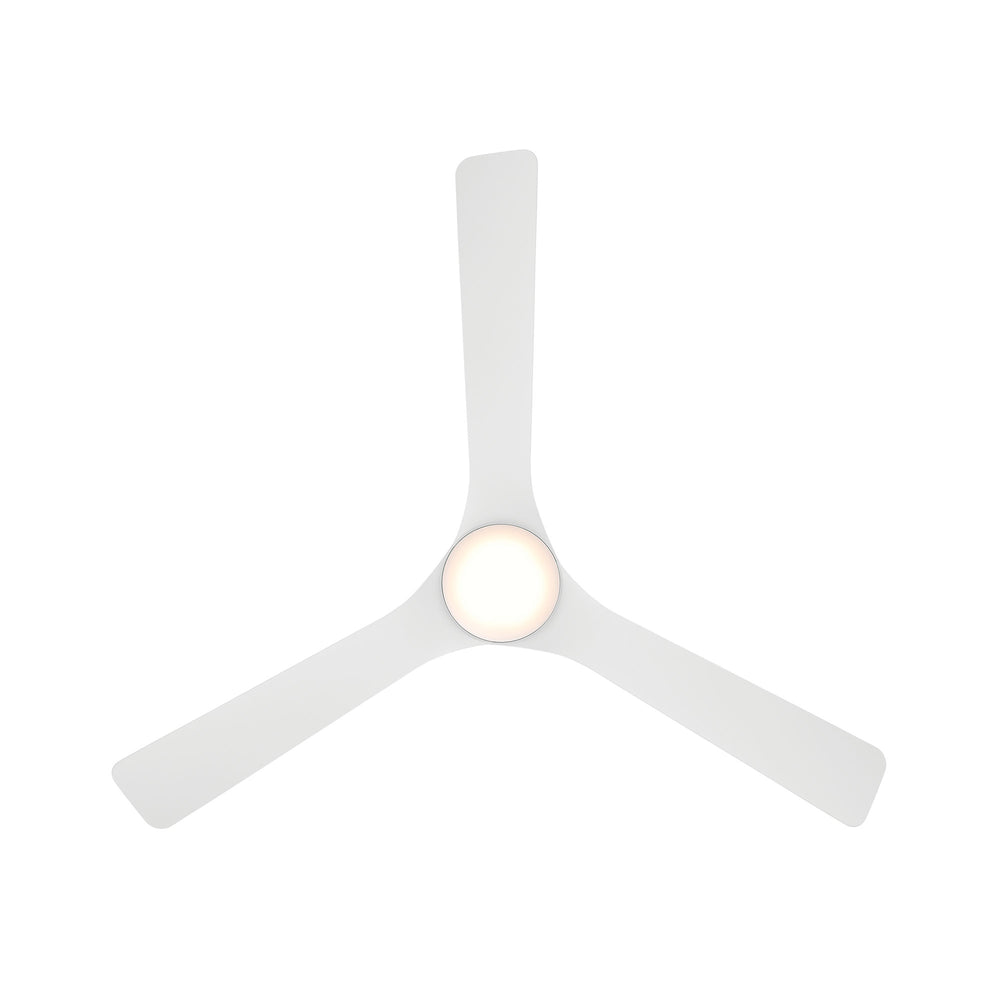

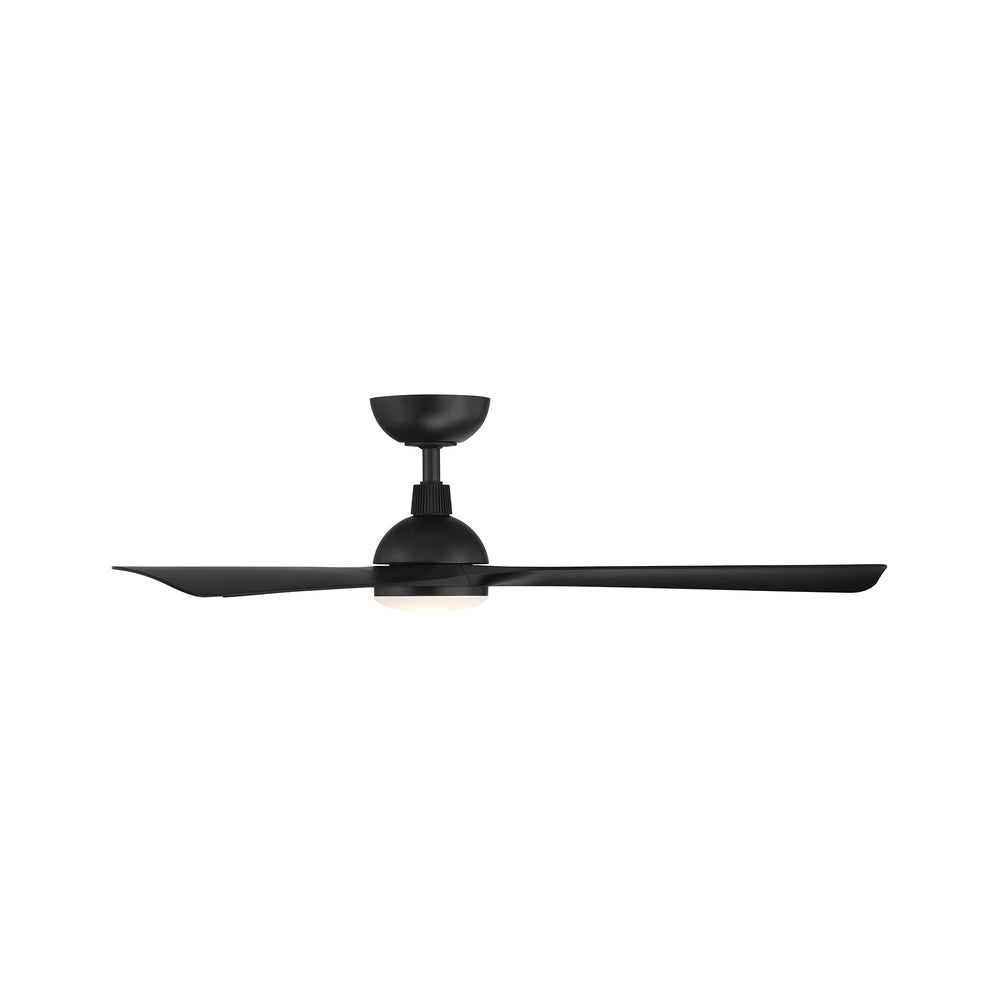

The Gage LED Smart Ceiling Fan from Modern Forms combines industrial design with high performance, featuring riveted detailing and subtly curved blades that converge around a sleek acrylic diffuser. Its integrated, dimmable LED light provides versatile illumination, while the quiet DC motor delivers powerful airflow of up to 6,000 CFM across a 52-inch blade sweep. Included remote control with wall cradle (RC20-WT) offers convenient operation, making the Gage fan an expert choice for both style and functionality in modern spaces.
Highlights
- Features an incredibly efficient and completely silent DC motor that is up to 70% more efficient than traditional fans.
- Pairs with smart home tech including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest
- The WAC Smart Fan iOS or Android app can sync with your ceiling fan to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs
- Battery operated Bluetooth remote control with wall cradle is included
- Features an energy efficient replaceable LED light kit with up to 1600 lumens and 90CRI in a selectable CCT 2700-3000-4000-5000K color temperature. LED light kit can be dimmed smooth and continuously
- Damp rated for bathrooms and covered patios
- Some Assembly Required
Remote Included
- Bluetooth Remote Control, Android or iOS Device
- Includes 1 CR2032 Coin Type 3V Lithium Battery
Assembly Required
Current selected SKU:
Other available SKUs: F-104L-BN/SL, F-104L-MB, F-104L-MW
"WAC Lighting Gage LED Smart Ceiling Fan" (Stock ID 8195688792109)
As provided by WAC Lighting:
5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.
