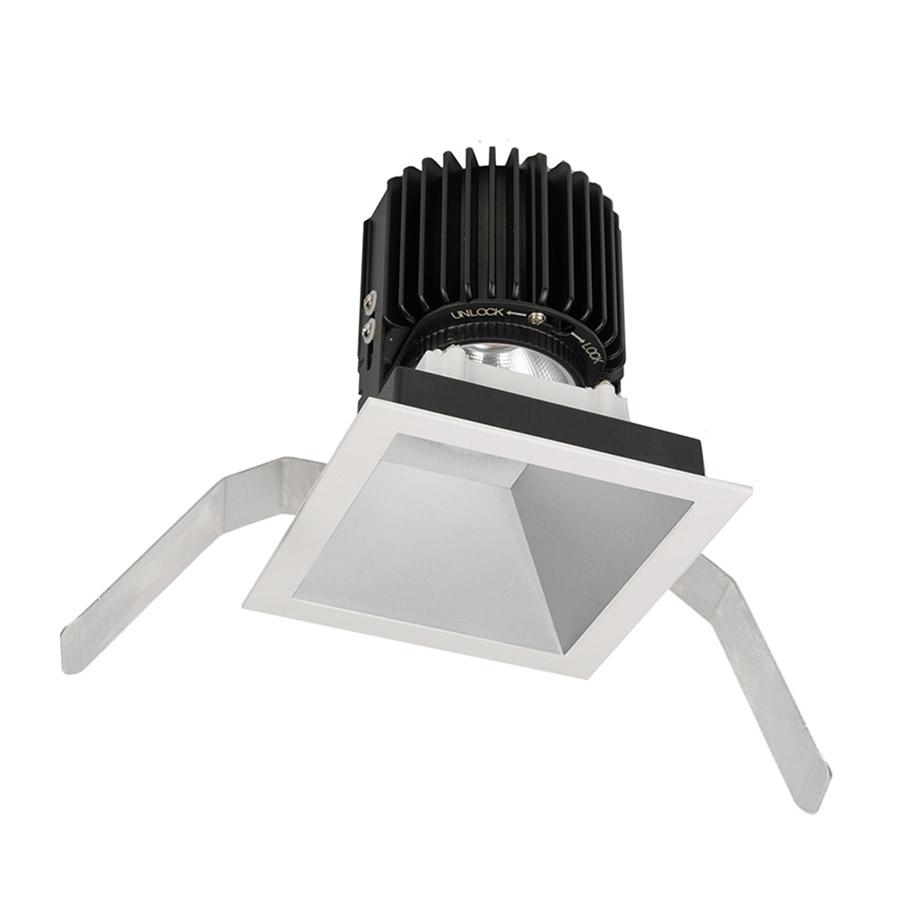

WAC Lighting Volta 4.5IN Square Downlight Trim

from $323.95
Swatch Options
Finish:
Swatch Options
Beam Spread:
Swatch Options
CRI/Color Temperature:
Selection Not Available. This option or combination of options is not currently available. Please select another option.

THIS ITEM IS OUT OF STOCK
$323.95
  • Shipping Cost: Free Shipping
  • Shipping Time: Please make a selection.
  • 100% Price Match Shop with Confidence: 30 Day Returns
  • # SKU: Make a selection
This Product is Made to Order
  • Quick Ship
  • Warranty Included

Description

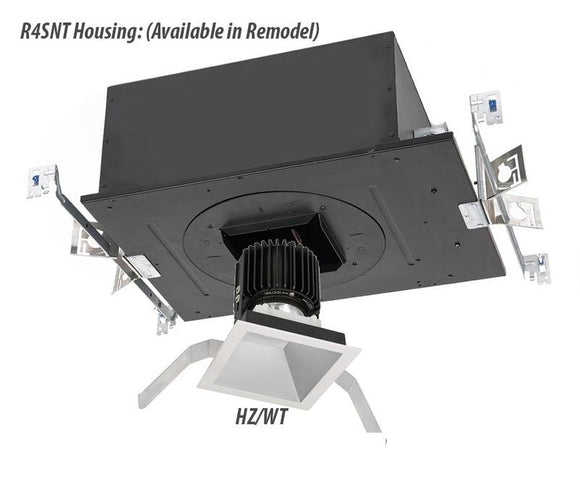

Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


Features

  • Volta Collection
  • Suitable for interior use
  • Textured glass lens
  • Hardwired
  • 2 inch lens regress for superior glare control
  • Field selectable light engine height for cut-off angle adjustment of 30-34 degrees and accessory use
  • Accepts one replacement lens and one accessory
  • Accessories not included, but might be used in some applications: Lenses and Louvers
  • Available with Lutron Driver (Housing with L1 in Part #) for maximum compatibility with any Lutron Lighting Control System
  • Smooth and continuous dimming to 1% with an Electronic Low Voltage (ELV) or 0-10V dimmer
  • ETL Listed
  • Wet rated for exterior use
  • Title 24
  • ADA Compliant
  • Energy Star Rated
  • Available in Spot, Narrow, Flood or Wide beam spread
  • Available in various CRI/Color Temperatures and finishes
Sku

Current selected SKU:

Other available SKUs: R4SD2T-F827-CB, R4SD2T-F827-HZWT, R4SD2T-F827-WT, R4SD2T-F830-CB, R4SD2T-F830-HZWT , R4SD2T-F830-WT, R4SD2T-F835-CB, R4SD2T-F840-CB, R4SD2T-F927-BK, R4SD2T-F927-BKWT, R4SD2T-F927-CB, R4SD2T-F927-HZ, R4SD2T-F927-HZWT, R4SD2T-F927-WT, R4SD2T-F930-BK, R4SD2T-F930-BKWT, R4SD2T-F930-CB, R4SD2T-F930-HZ, R4SD2T-F930-HZWT, R4SD2T-F930-WT, R4SD2T-N827-CB, R4SD2T-N827-HZWT, R4SD2T-N827-WT, R4SD2T-N830-CB, R4SD2T-N830-HZWT, R4SD2T-N830-WT, R4SD2T-N835-CB, R4SD2T-N840-CB, R4SD2T-N927-BK, R4SD2T-N927-BKWT, R4SD2T-N927-CB, R4SD2T-N927-HZ, R4SD2T-N927-HZWT, R4SD2T-N927-WT, R4SD2T-N930-BK, R4SD2T-N930-BKWT, R4SD2T-N930-CB, R4SD2T-N930-HZ, R4SD2T-N930-HZWT, R4SD2T-N930-WT, R4SD2T-S827-CB, R4SD2T-S827-HZWT, R4SD2T-S827-WT, R4SD2T-S830-CB, R4SD2T-S830-HZWT, R4SD2T-S830-WT, R4SD2T-S835-CB, R4SD2T-S840-CB, R4SD2T-S927-BK, R4SD2T-S927-BKWT, R4SD2T-S927-CB, R4SD2T-S927-HZ, R4SD2T-S927-HZWT, R4SD2T-S927-WT, R4SD2T-S930-BK, R4SD2T-S930-BKWT, R4SD2T-S930-CB, R4SD2T-S930-HZ, R4SD2T-S930-HZWT, R4SD2T-S930-WT, R4SD2T-W827-CB, R4SD2T-W830-CB, R4SD2T-W835-CB, R4SD2T-W840-CB, R4SD2T-W927-BK, R4SD2T-W927-BKWT, R4SD2T-W927-CB, R4SD2T-W927-HZ, R4SD2T-W927-HZWT, R4SD2T-W927-WT, R4SD2T-W930-BK, R4SD2T-W930-BKWT, R4SD2T-W930-CB, R4SD2T-W930-HZ, R4SD2T-W930-HZWT, R4SD2T-W930-WT show more

Reference ID

"WAC Lighting Volta 4.5IN Square Downlight Trim" (Stock ID 77918666761)

Product Warranty

As provided by WAC Lighting:
5 years functional, 2 years finish.

Contact customer service

Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.

Prop 65 - California
Volta 4.5IN Square Downlight Trim

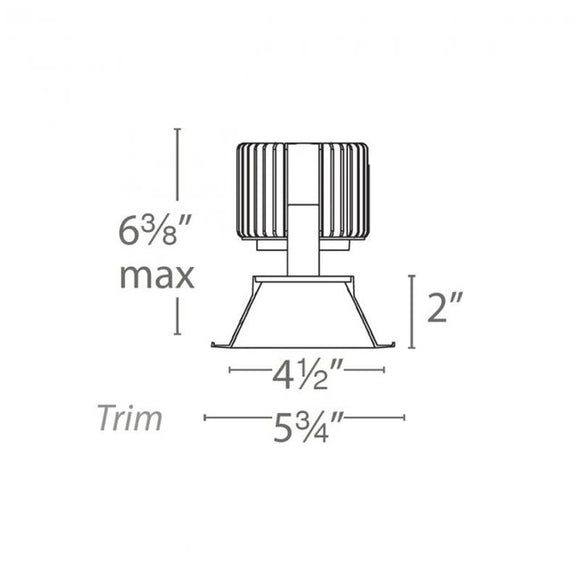

Dimensions:

  • Overall: 5.75 in W x 5.75 in D x 6.4 in H max
  • Cutout: 5.1 in
  • Trim Size: 5.75 in
  • Aperture: 4.5 in

Lamp Type:

  • LED

Bulbs:
Spot 15 Degrees:

  • 1 x 15-25-36W 120-240-277V 634-1303 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 676-1390 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 707-1453 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 712-1466 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 516-1062 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 551-1133 Lumens, 90CRI, 3000K LED lamp (included)

Narrow 25 Degrees:

  • 1 x 15-25-36W 120-240-277V 1300-2671 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1386-2850 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1448-2979 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1460-3004 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1058-2178 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1129-2323 Lumens, 90CRI, 3000K LED lamp (included)

Flood 45 Degrees:

  • 1 x 15-25-36W 120-240-277V 1270-2610 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1354-2785 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1415-2911 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1426-2936 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1034-2128 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1103-2270 Lumens, 90CRI, 3000K LED lamp (included)

Wide Flood 60 Degrees:

  • 1 x 15-25-36W 120-240-277V 1109-2277 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1181-2430 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1235-2540 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1245-2562 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 902-1857 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 963-1981 Lumens, 90CRI, 3000K LED lamp (included)

Listing:

  • ETL
  • cETL
  • ADA
  • Title 24 (for 90CRI version)
  • Wet Location
Materials

Durable die-cast aluminum construction, glass.
