    LED100 LEDme Step Light By WAC Lighting

    Free Shipping!   |   More Product Information
    Ships in 24 hours. Please note, Amber,610nm and White,3000K in Stainless Steel are currently out of stock until 09/29/2014 and will ship in 24 hours after 09/29/2014.

    • Have Questions? Need Inspiration?
      Contact our WAC Lighting Specialist today via e-mail or (888) 222-4410.

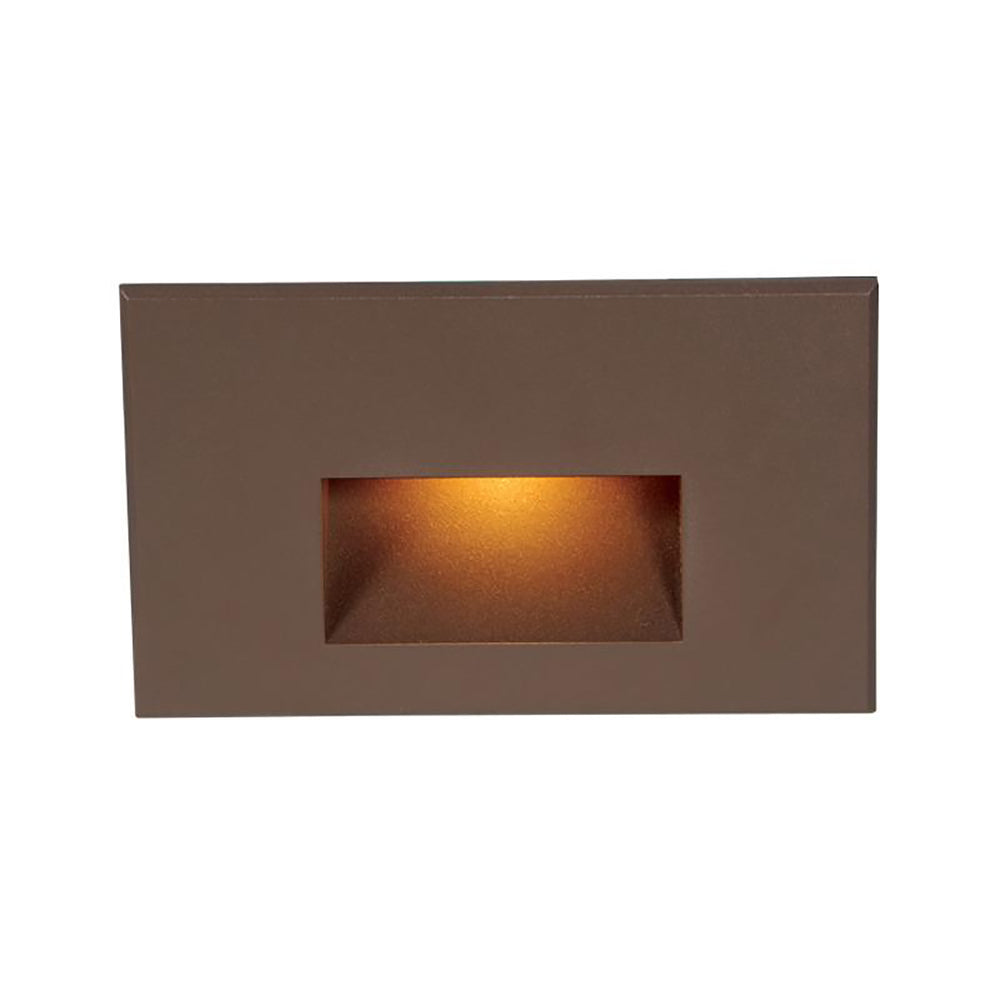

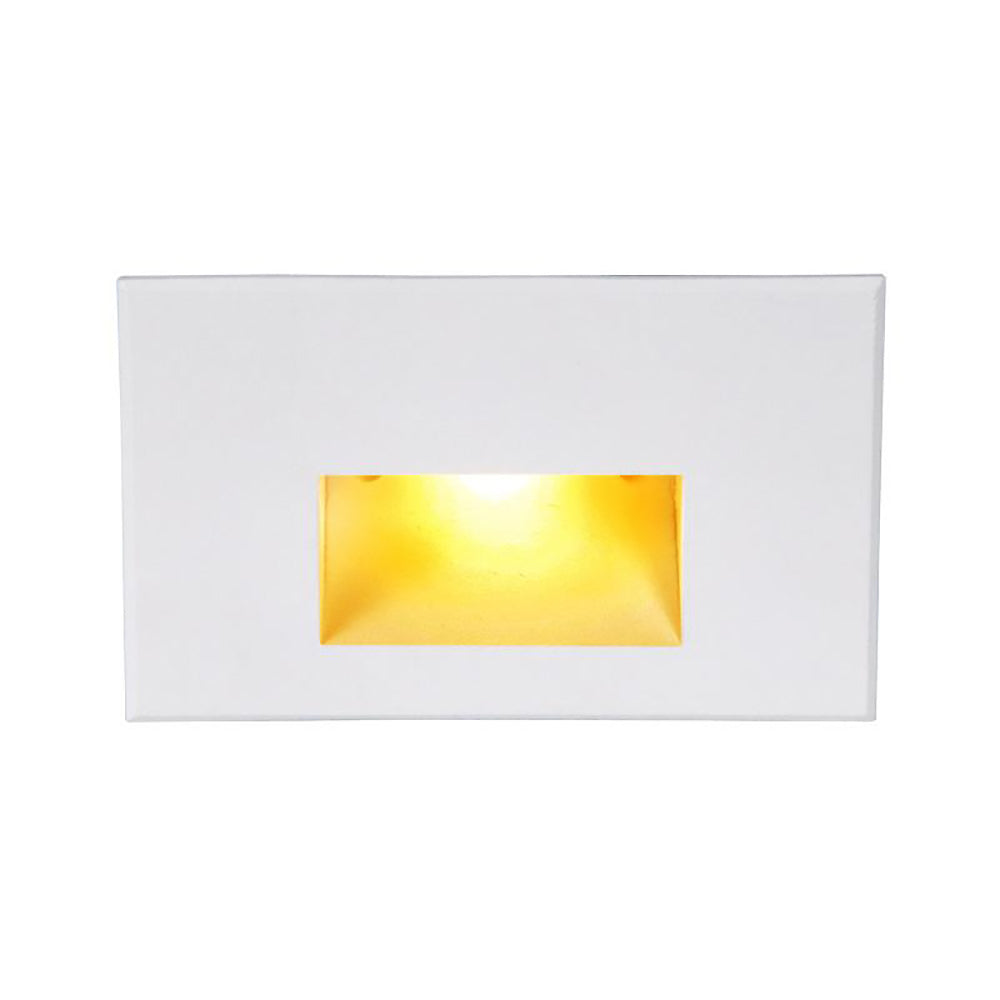

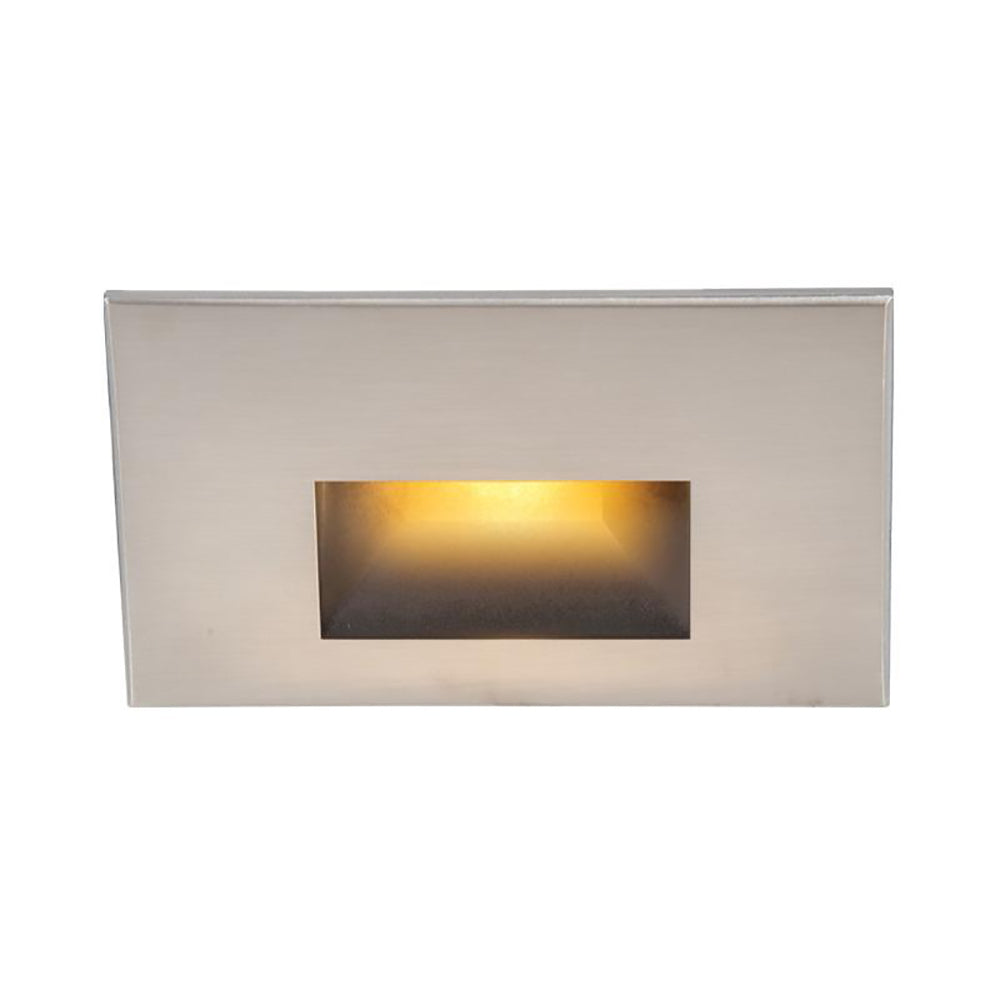

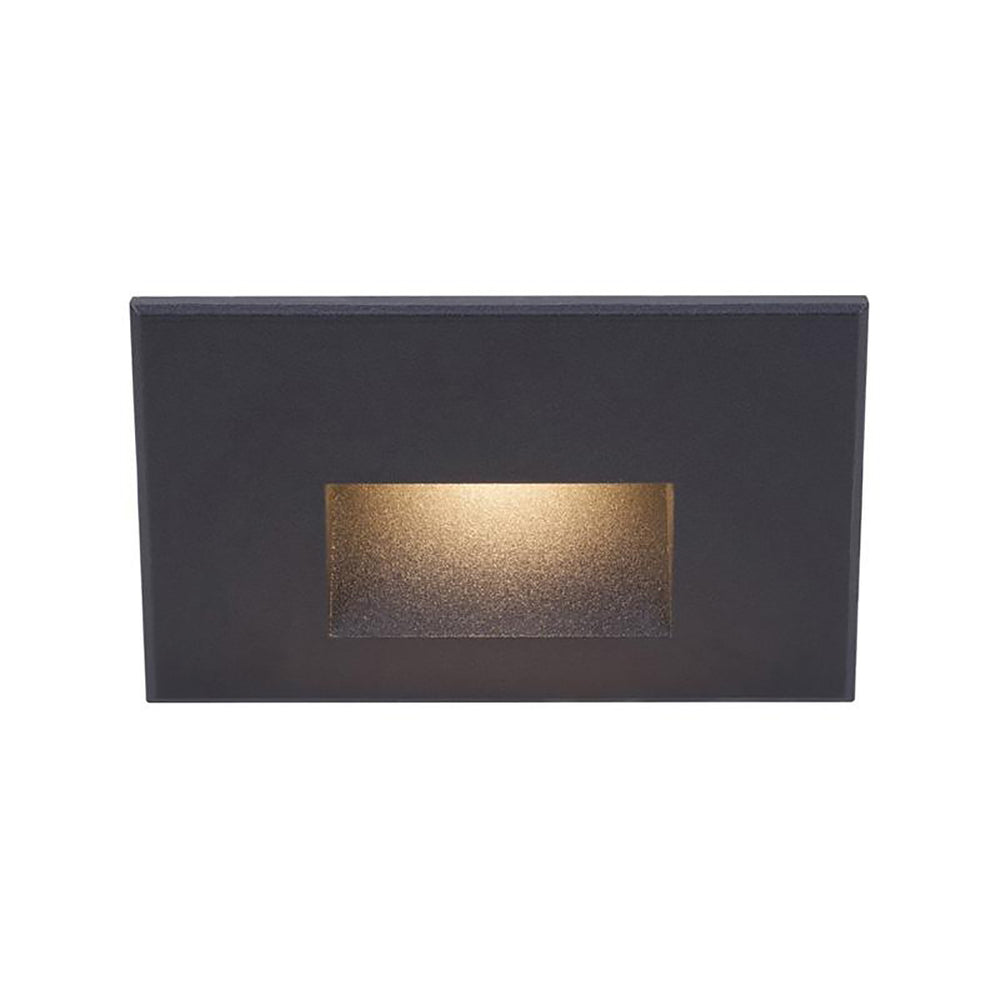

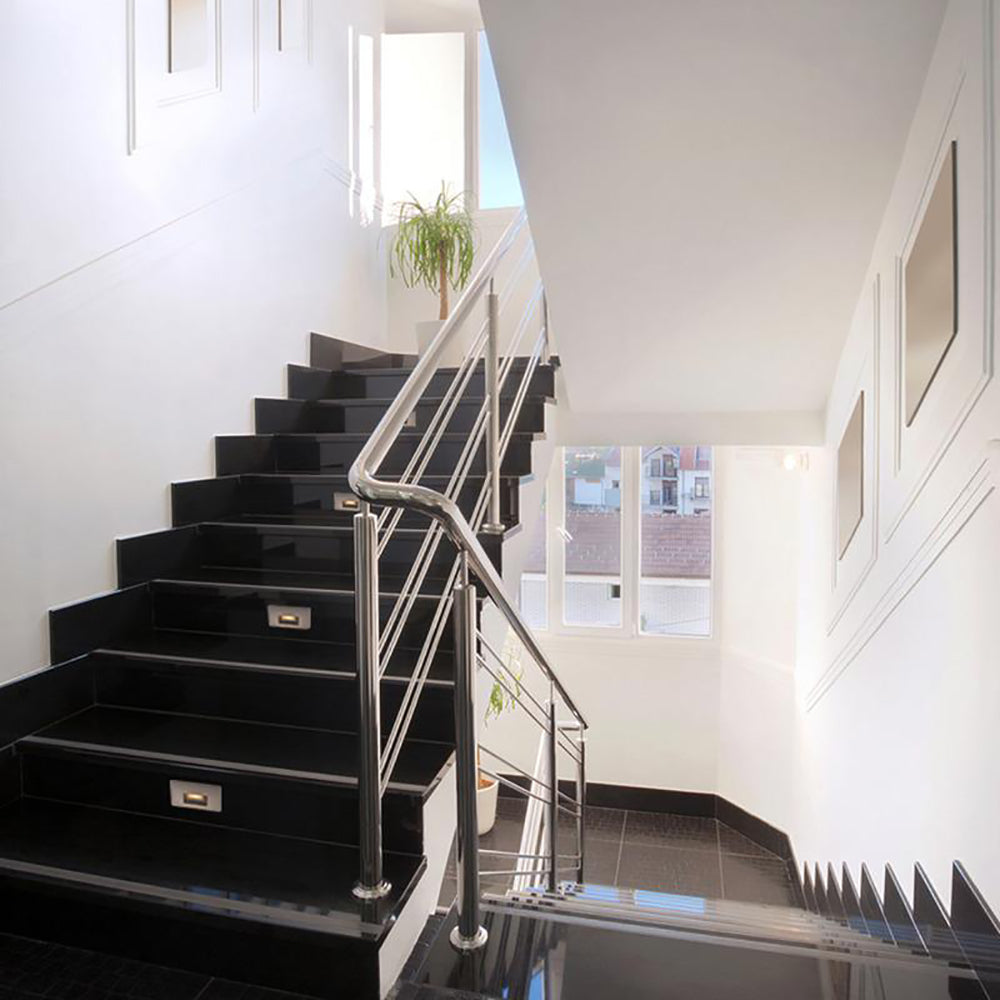

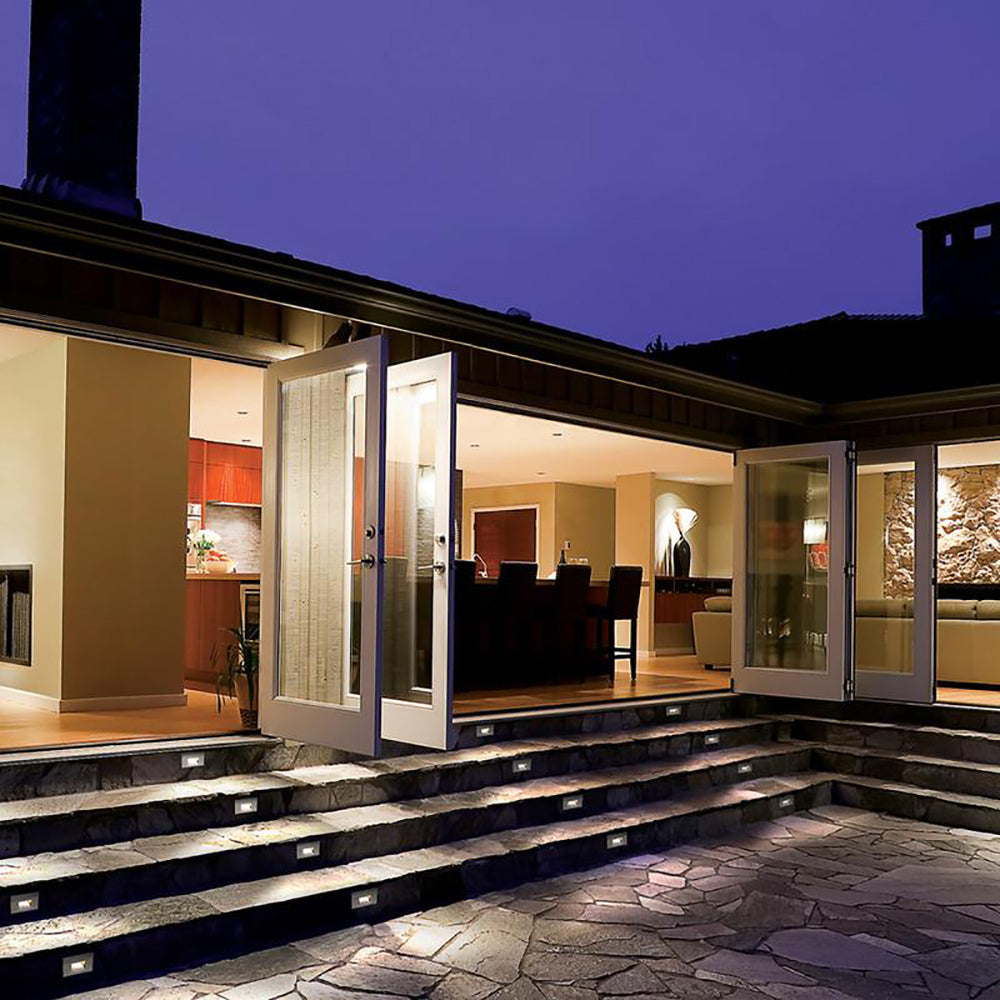

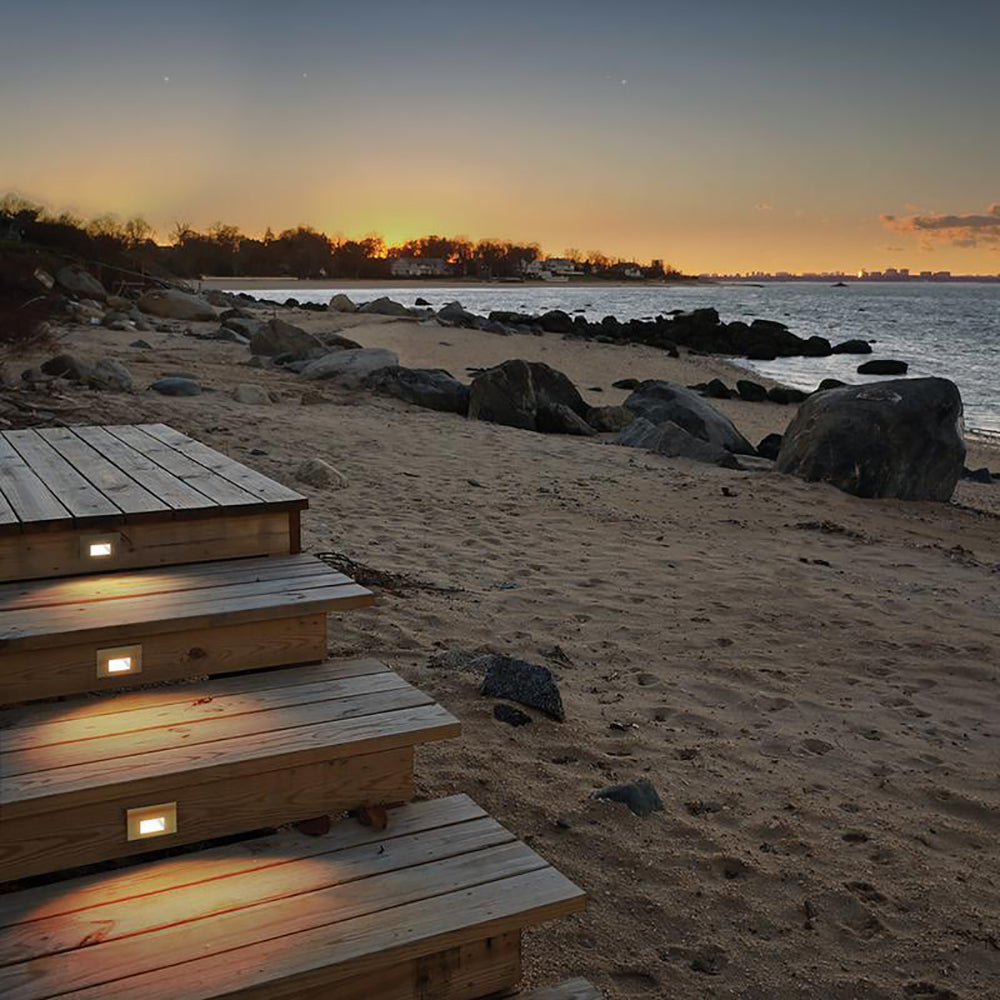

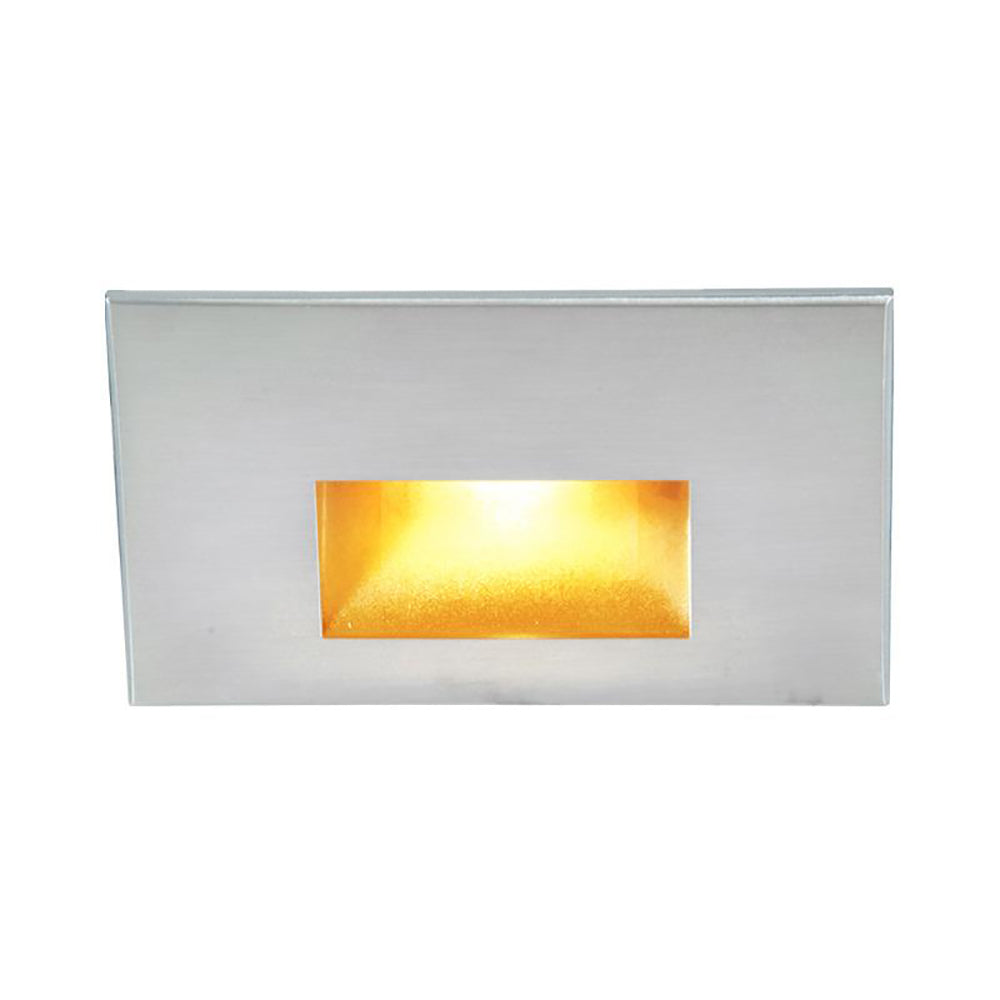

      Horizontal rectangle LEDme Step Light. Designed for safety and style on stairways, patios, decks, balcony areas, walkways and building perimeters. Features an architectural design. Energy efficient for long-lasting indoor and outdoor lighting solutions. Creates an attractive, romantic impression at night.

      Features

      • 316 marine grade cast stainless steel (SS) available
      • Direct wiring, no driver needed
      • Low profile, flush to wall aesthetics with no visible hardware
      • Turtle friendly (AM, RD colors)
      • 40,000 hour rated life
      • Balanced lighting, free of shadows with minimum glare
      • Up to 200 fixtures can be connected in parallel
      • Replaceable LED module

      Specifications

      • Dimensionss (inches): 3 W x 1.5 D x 5 H
      • Power: Direct wiring, no remote driver needed. Input voltage: 120V or 277V AC 50/60Hz
      • Light Source: 3000K CCT Samsung HV-AC High Power LED, CRI: 85, optional color lenses, total power consumption of 3.9W

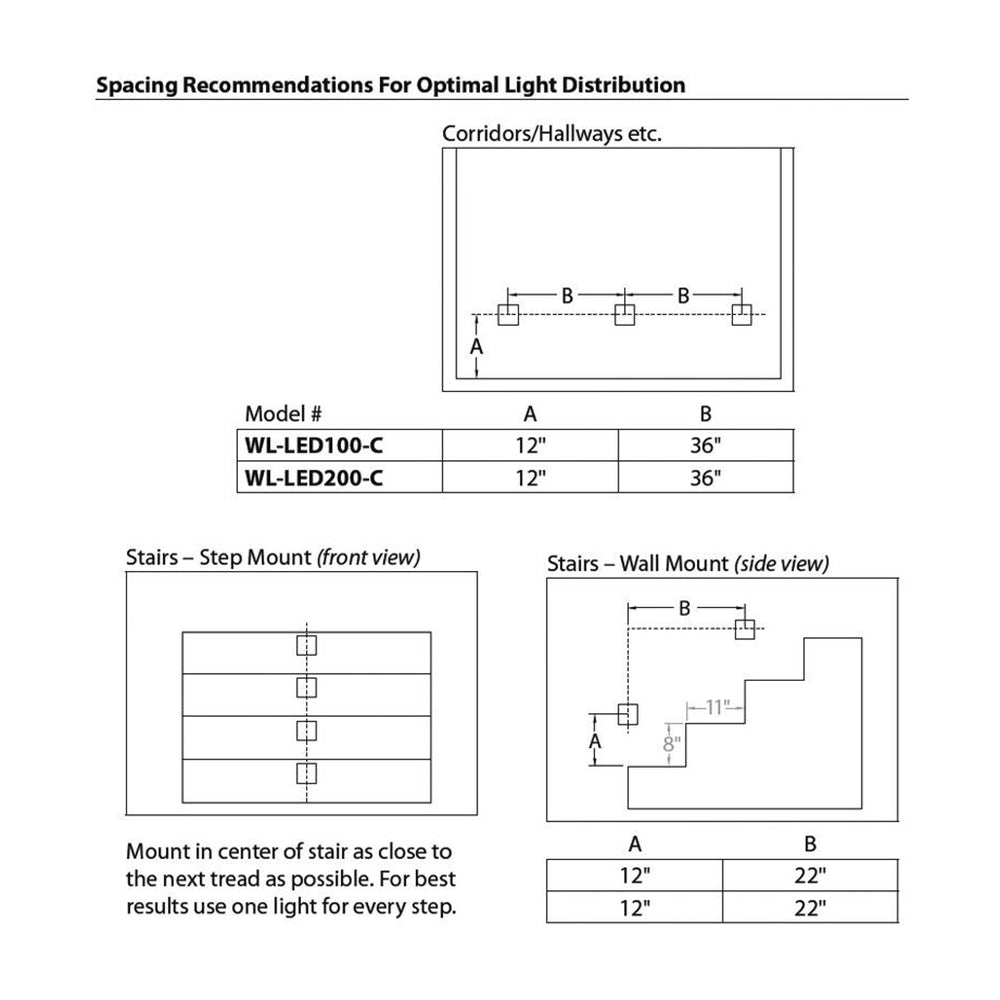

      • Mounting: Fits into 2-inch × 4-inch J-Box with minimum inside Dimensionss of 3 L × 2 W × 2 H, includes bracket for J-Box mount. See next page for spacing recommendations
      • Dimming: Dim to 10-percent with electronic low voltage (ELV) dimmer
      • Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04
      • Materials: Art Glass.
        Specifications:
        • Dimensions (inches): 3 W x 1.5 D x 5 H
        • Power: Direct wiring, no remote driver needed. Input voltage: 120V or 277V AC 50/60Hz
        • Light Source: 3000K CCT Samsung HV-AC High Power LED, CRI: 85, optional color lenses, total power consumption of 3.9W
        • Mounting: Fits into 2-inch × 4-inch J-Box with minimum inside dimensions of 3 L × 2 W × 2 H, includes bracket for J-Box mount. See next page for spacing recommendations
        • Dimming: Dim to 10-percent with electronic low voltage (ELV) dimmer
        • Approved dimmers: Lutron Skylark SELV-300P-WH and Leviton Vizia VPE04
        WAC Lighting Warranty: Manufacturer's 5 years/lifetime finish warranty.
        SKU: WL-LED100-C-BK
        Catalog ID: 261378
      • Ships in 24 hours. Please note, Amber,610nm and White,3000K in Stainless Steel are currently out of stock until 09/29/2014 and will ship in 24 hours after 09/29/2014.

        This item ships to anywhere in the continental US. For shipments outside the continental US, please click here. For large items please contact us for any requests for inside delivery, assembly or packaging removal. Please read our return information.
